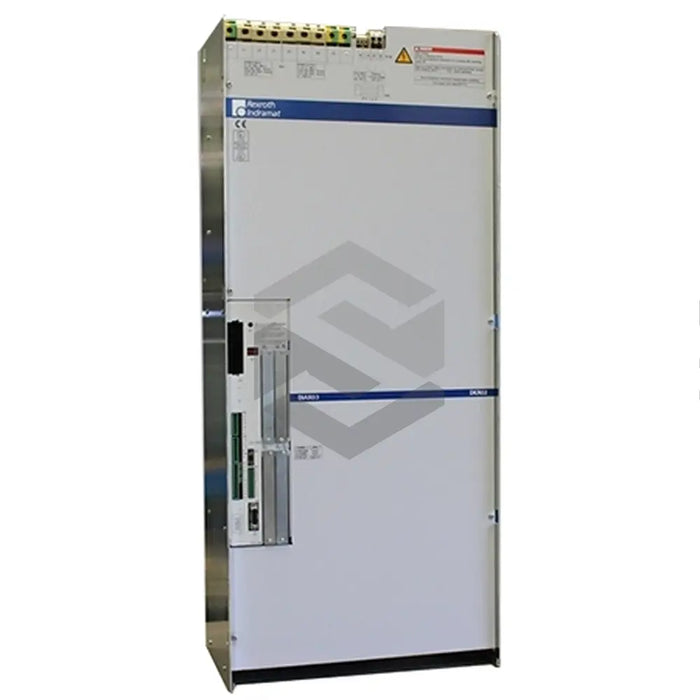

S image of DKR03.1-W200N-BT29-01-FW

DKR03.1-W200N-BT29-01-FW

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The DKR03.1-W200N-BT29-01-FW is a digital drive controller from Bosch Rexroth Indramat. It features a line-3 and design type-1 which are cooled by an integrated air blower. It is rated for 200A and lacks a bleeder. The drive controller employs digital servo and resolver feedback systems to support sophisticated command, control and signal communications through a SERCOS interface. Notably, it affords a wide speed range, precise control to the paired Indramat motor, and signals error diagnoses to the SERCOS interface. With a maximum effective current rating of 141A and heat dissipation at an effective continuous current of 1.2 kW, its rating conforms to the IP 20 protection class. The drive controller performs optimally at altitudes up to 1000 meters above sea level, and must be stored between -30 degrees C to +85 degrees C, protected from dust, moisture, and excessive shocks.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product line

3

Design type

1

Cooling mode

In-built air blower

Rated Value

200 A

Bleeder

None

Feedback system

Digital servo and electromagnetic resolver

Communication interface

Digital SERCOS

Function numeric code

29

Version function numeric code

01

Speed range

Broad

Control

High

Error diagnosis

Signalled to the SERCOS interface and displayed via the H1 screen

Maximum current rating (Imaxeff)

141 Amps

Total dissipation of heat at Iconteff

1.2 kW

Protection class

IP 20

Maximum altitude of installation at 100% rated data

0 – 1000 meter/sea level

Acceptable transport/storage temperature range

-30 degrees C to +85 degrees C

Physical considerations

Keep away from dust and moisture, use shock-dampeners for transport if needed

Potential risks

Overvoltage, overheating, damage, health risks to handling personnel.
