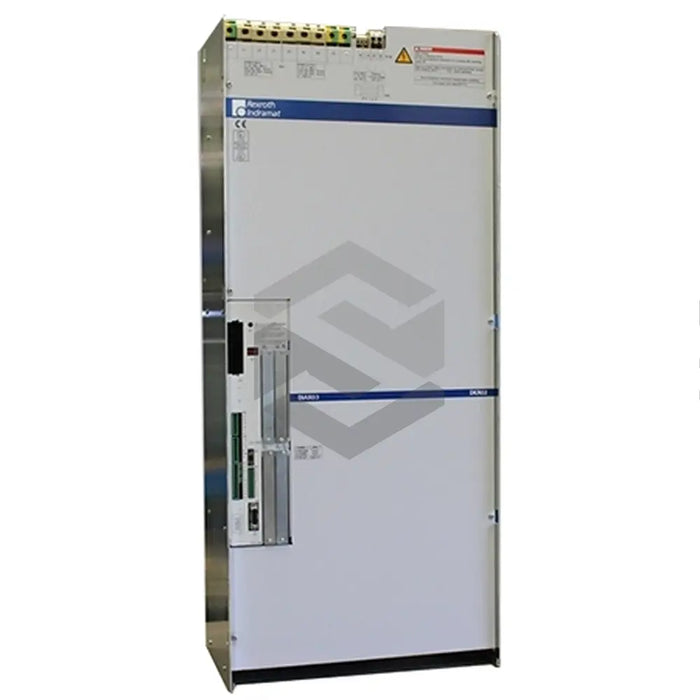

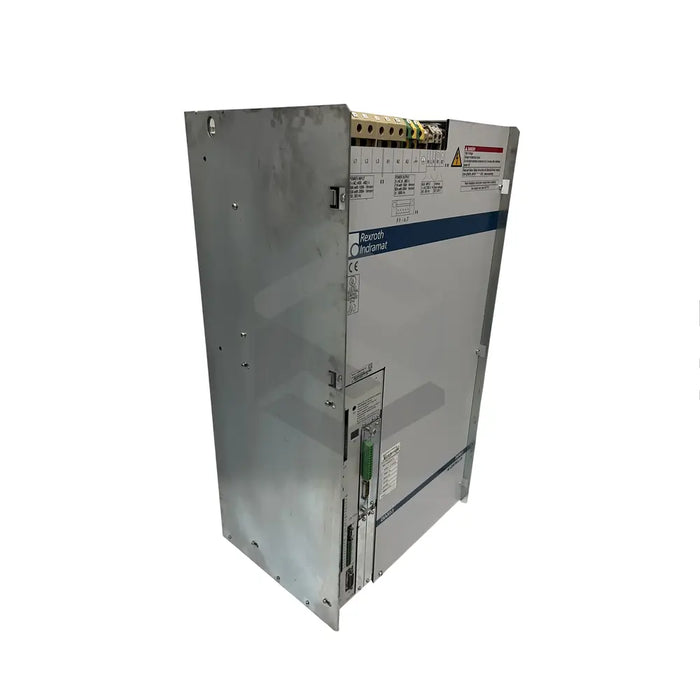

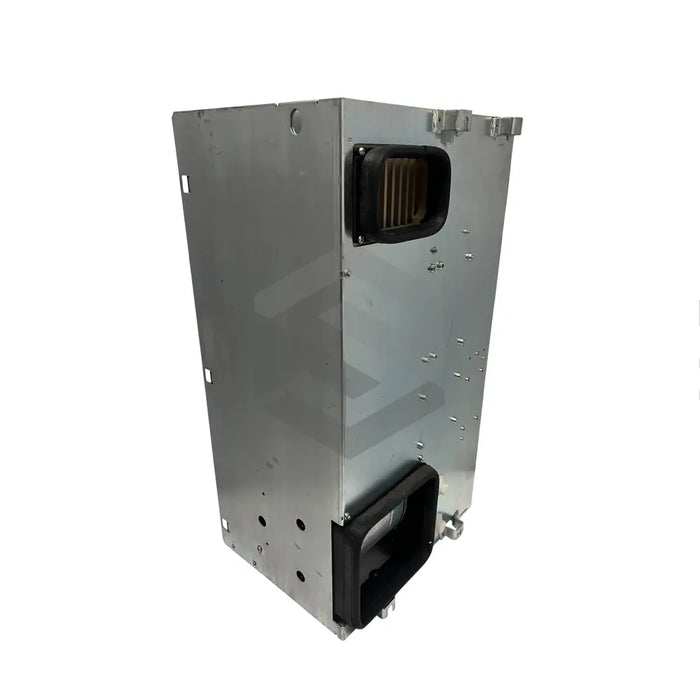

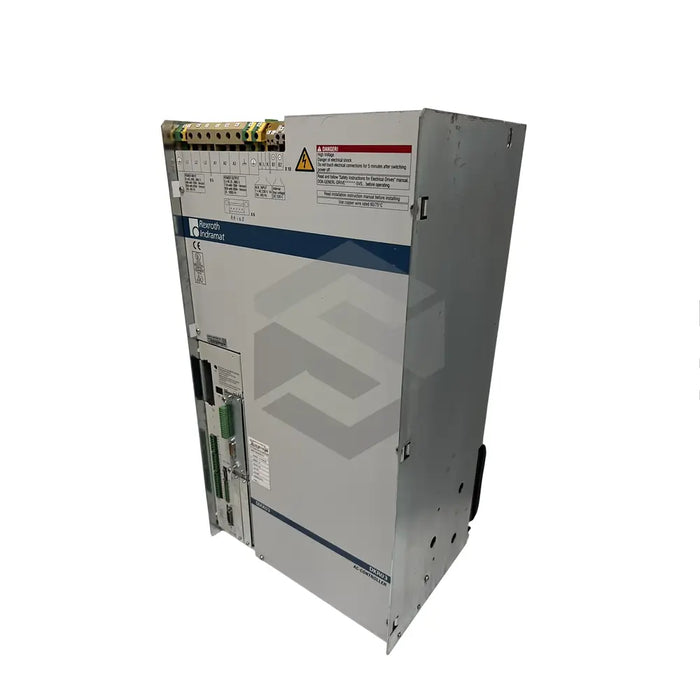

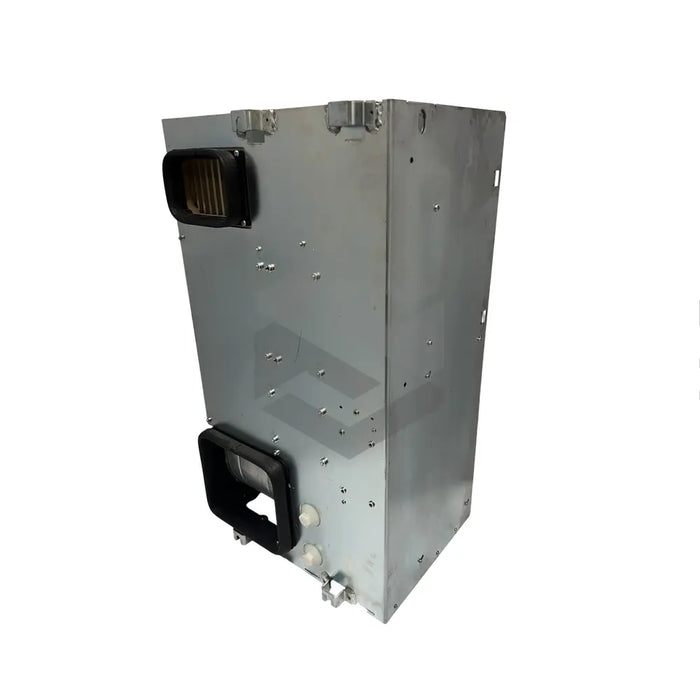

DKR03.1-W200N-BT49-01-FW

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The Bosch Rexroth Indramat DKR03.1-W200N-BT49-01-FW is a smart drive controller with an in-built air blower for cooling. It's part of the DKR series, designed to expertly manage and regulate Rexroth Indramat electric motors, such as linear motors and ADF/2AD and 1MB frameless spindle motors. Able to connect to grounded AC mains of between 400 V and 480 V, the controller offers consistent power, enhanced control and a broad speed range. It delivers a continuous current of 92 Amps at 4 kHz or 78 Amps at 8 kHz, with peak power rated at approximately 55 kW. The Controller's system frequency is 50 - 60 Hz, and it features a rated voltage of 200 Volts. Its firmware is installed on DSM EPROM modules. During transportation or storage, it must be shielded from dust, moisture and excessive vibrations, with a permissible temperature range of -35 to 85 degrees Celsius.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Line

Rexroth Indramat DKR

Product Type

Drive Controller

Motor Compatibility

Linear motors, ADF/2AD main spindle motors and 1MB frameless spindle motors

Power Connection

3xAC 400 V...480 V grounded AC mains

Optional Feature

Integrated Brake Resistors

Continuous Current (4 kHz)

92 Amps

Continuous Current (8 kHz)

78 Amps

Peak Power Rating (4 kHz/8 kHz)

ca. 55 kW

Continuous Regenerated Power Rating (Prück)

ca. 30 kW

Power Voltage Frequency Rating (4 kHz)

800 Hz

Power Voltage Frequency Rating (8 kHz)

1600 Hz

Peak Drive Current

141 Amperes

System Frequency

50 – 60 Hz

Peak Regenerated Power (10 seconds duration)

ca. 55 kW

Rated Voltage

200 Volts

Cooling System

Pre-integrated built-in air blower

Firmware Installation

On DSM modules as EPROMs

Storage Guidelines

Avoid dust, moisture and excessive vibration

Vibration Solution

Use vibration-dampeners

Storage Temperature Range

-35 degrees to 85 degrees
