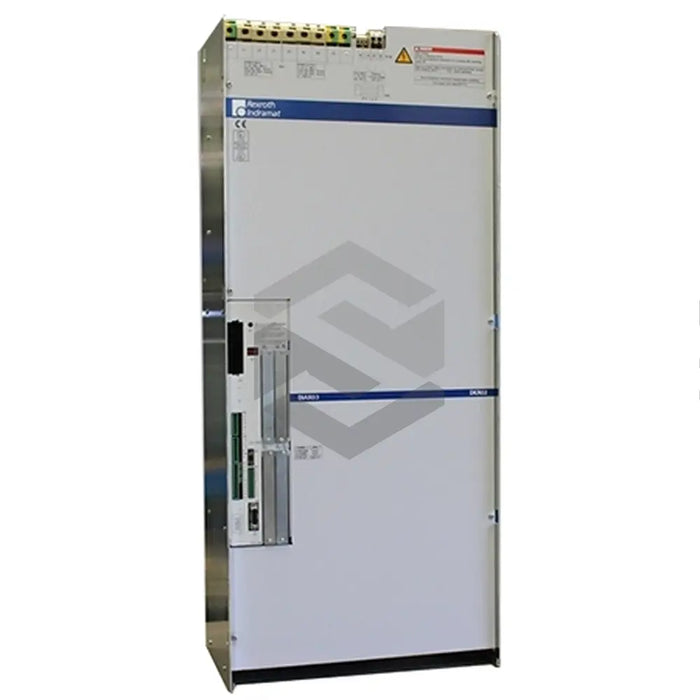

S image of DKR03.1-W200N-BT69-01-FW

DKR03.1-W200N-BT69-01-FW

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
Bosch Rexroth Indramat's DKR03.1-W200N-BT69-01-FW is a high-performing drive controller designed for technical versatility. The device operates with a rated power voltage of 3x 400-480 Volts AC, and a control voltage frequency of 50-60 Hertz. It also has a peak current of 141 amps and can dissipate heat up to 1200 Watts, both internally and externally, using its built-in heat sink. It supports various Indramat motors such as 2AD main spindle motors, LSF linear motors, and 1MB frameless spindle motors via its digital control functionality. This model utilizes a SERCOS command communication interface and is air-cooled in design. It offers digital servo and resolver feedback. The controller weighs approximately 49 kilograms and can be connected to a three-phase or grounded star system. Despite possessing no bleeder, it is furnished with a mechanical accessories kit for seamless installation.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Name

DKR03.1-W200N-BT69-01-FW Drive Controller

Product Family

DKR

Product Line

03

Rated Power Voltage

3x 400-480 Volts AC

Control Voltage

230 Volts AC

Control Voltage Frequency

50-60 Hertz

Peak Current

141 Amps

Heat Dissipation

1200 Watts

Rated Current

200 Amps

Design Type

Type 1

Cooling Mode

Air Cooling

Communication Interface

SERCOS Interface

Motor Compatibility

2AD Main Spindle Motors, LSF Linear Motors, 1MB Frameless Spindle Motors

Feedback Type

Digital Servo and Resolver Feedback

Weight

49 kg

Connection

Three-phase system or Grounded Star System

Version Function Numeric Code

01

Function Numeric Code

69

Accessories

Mechanical Accessories Kit (Screws, Flanges, Gaskets)
