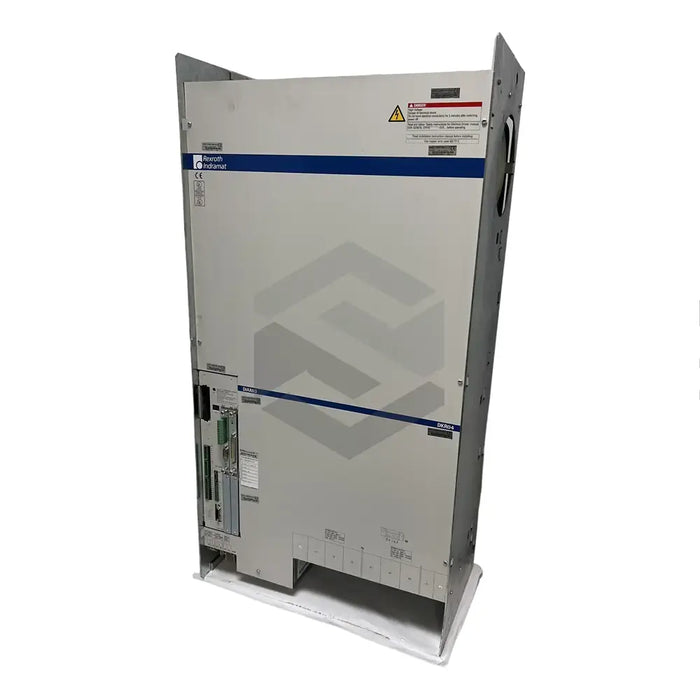

C image of DKR04.1-W300E-BA03-01-FW | Main (Front Left)

DKR04.1-W300E-BA03-01-FW

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The DKR04.1-W300E-BA03-01-FW, created by Bosch Rexroth Indramat, known for its commitment to delivering high-quality industrial automation products, is a drive controller designed for digitally intelligent control of various spindle and linear motors. It offers a high level of control, a vast speed range, and constant power. This model can connect directly to a 3-phase 3 × 400~480 AC power source with ±10% tolerance. It operates at a control voltage of AC 230V with ±2% tolerance. It consists of elementary units, firmware modules, command interface cards, and supplementary plug-in modules. This model has a built-in cooling system through a blower circulating ambient air and dissipates a total heat of 2500 W, including 1800 W in the air channel. An external bleeder yields a maximum of 720 kWs braking energy. It operates optimally at +5 to +45 degree Celsius and uses a digital servo and resolver for feedback, with an analog interface for command communication.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Model

DKR04.1-W300E-BA03-01-FW

Motor Compatibility

2AD or ADF AC main spindle motors, 1MB frameless spindle motors, and linear motors

Operating frequency

50 to 60 Hz

Control Voltage

AC 230V

Control Voltage Frequency

50 to 60 Hz with ±2% tolerance

Components

Basic unit, firmware module, command interface cards, and auxiliary plug-in modules

Drive Power (4 kHz)

93 kW at 210 A continuous current

Drive Power (8 kHz)

66 kW at 150 A continuous current

Regenerated Power

66 kW continuous, 120 kW peak (10 sec max)

Cooling

Built-in blower with ambient air

Heat Dissipation

2500 W (1800 W in air channel)

Braking Energy

720 kWs (with external bleeder)

Operating Temperature

+5 to +45 degree Celsius

Feedback

Digital servo and resolver for motor

Command Communication

Analog interface

Function Numeric Code

03

Version Function Numeric Code

01
