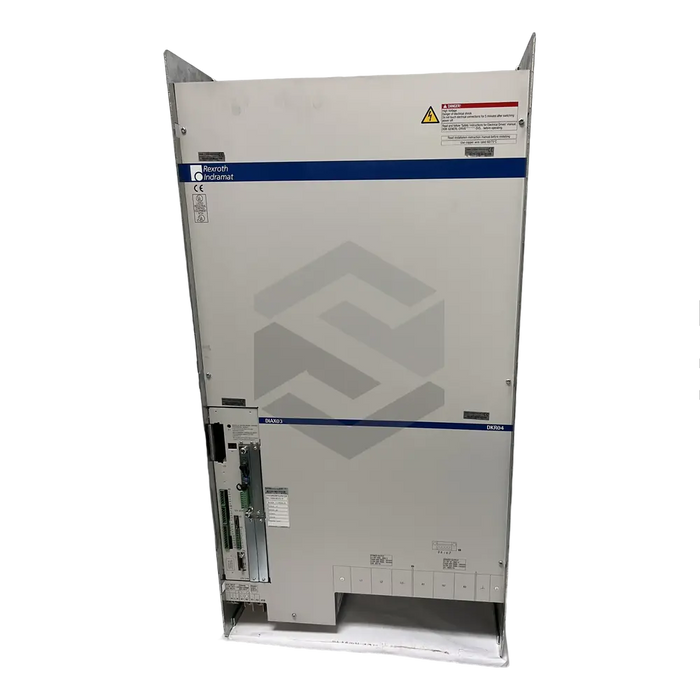

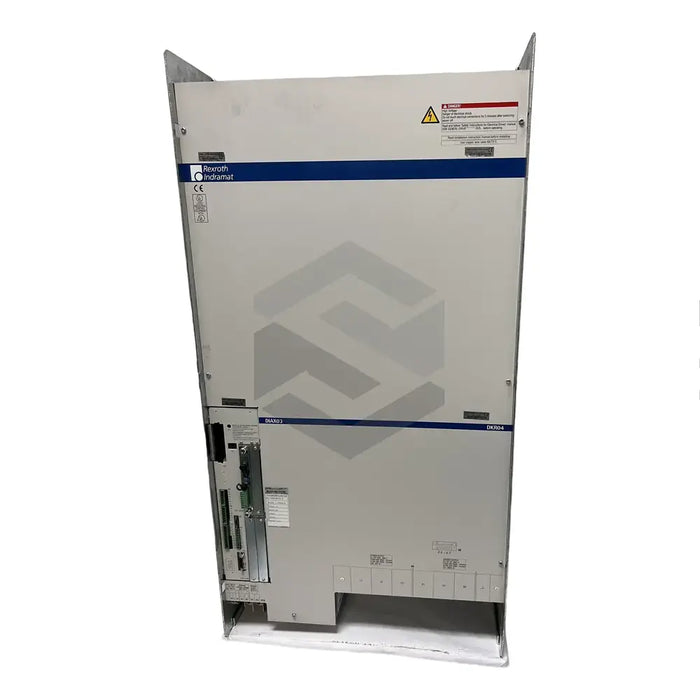

C image of DKR04.1-W300E-BE12-01-FW | Main (Front Left)

DKR04.1-W300E-BE12-01-FW

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The DKR04.1-W300E-BE12-01-FW, produced by Bosch Rexroth, is an efficient, cost-effective solution for industrial automation requirements. Adapted for direct integration into an AC 3 × 400 ~ 480V power supply with a system frequency of 50 to 60 Hz, this model regenerates a consistent 66 kW of power. It includes an optional external brake resistor with a 1.8 Ohm resistance, designed for dissipating 3 kW of power. Also, it utilizes an inbuilt cooling blower. The unit generates 93 kW/66 kW of continuous power at a steady current of 210 A/150 A, with a peak power output of 125 kW at 282 A. Optimized for printing machines and NC machine tools, the DKR04.1-W300E-BE12-01-FW is desirable for its precision, speed range and constant power. This unit has a basic unit, five slots for plugin cards, and requires a separately ordered firmware module. Weighing approximately 150 kg, it cools via ambient air, uses an IP20 protection class and can be installed up to 1000 meters altitude.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

Drive Controller

Model

DKR04.1-W300E-BE12-01-FW

Continuous Regenerated Power

66 kW

Resistor

1.8 Ohms

Continuous Power Dissipation

3 kW

Cooling System

Built-in Blower

Frequency

4 kHz/8 kHz

Continuous Power Delivery

93 kW/66 kW

Continuous Current

210 A/150 A

Peak Power

125 kW

Peak Current

282 A

Slots for Plug-In Cards

5

Motor Feedback System

Digital Servo and Resolver Module

Command Interface Card

SERCOS interface

Total Weight

150 kg (excluding accessories)

Cooling Method

Ambient Air; 1800 W of Heat Dissipation

Protection

IP20 Rating

Maximum Installation Altitude

1000 meters
