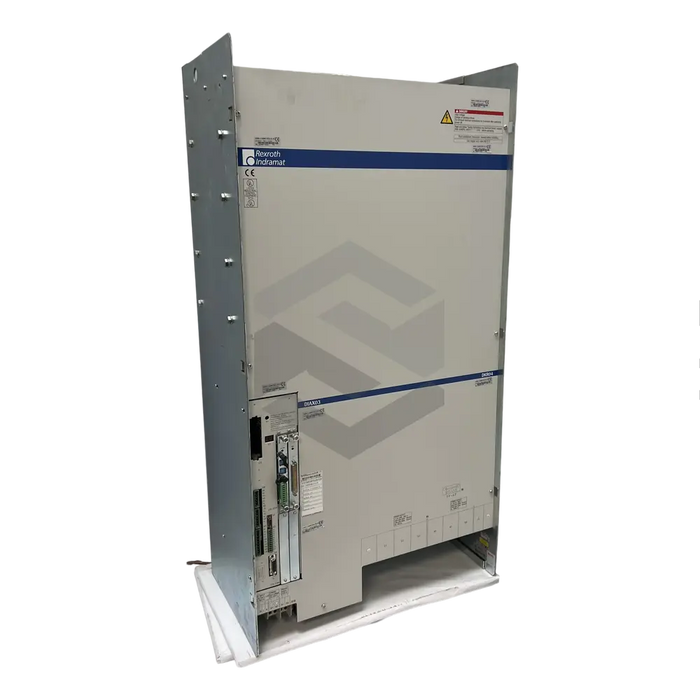

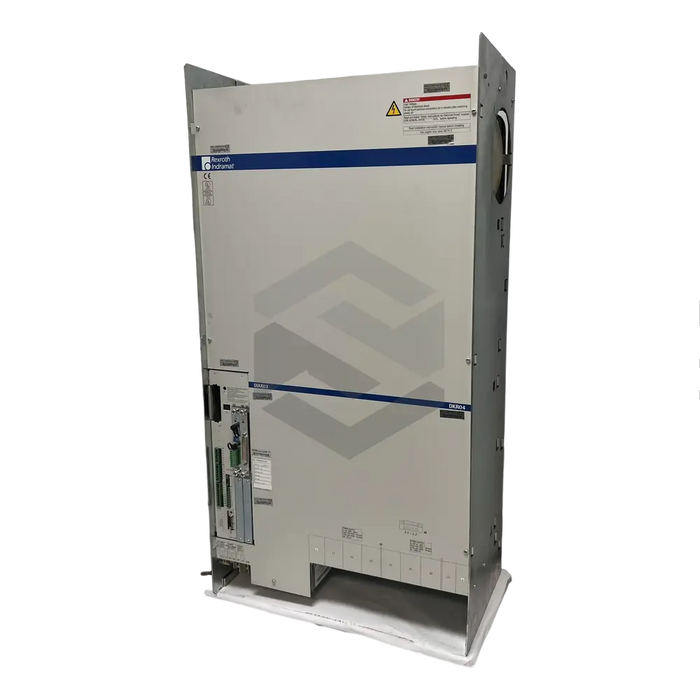

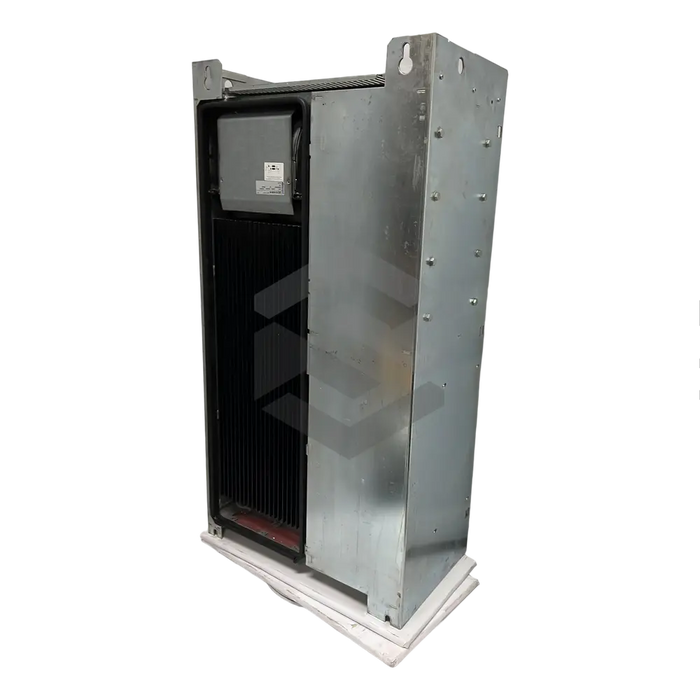

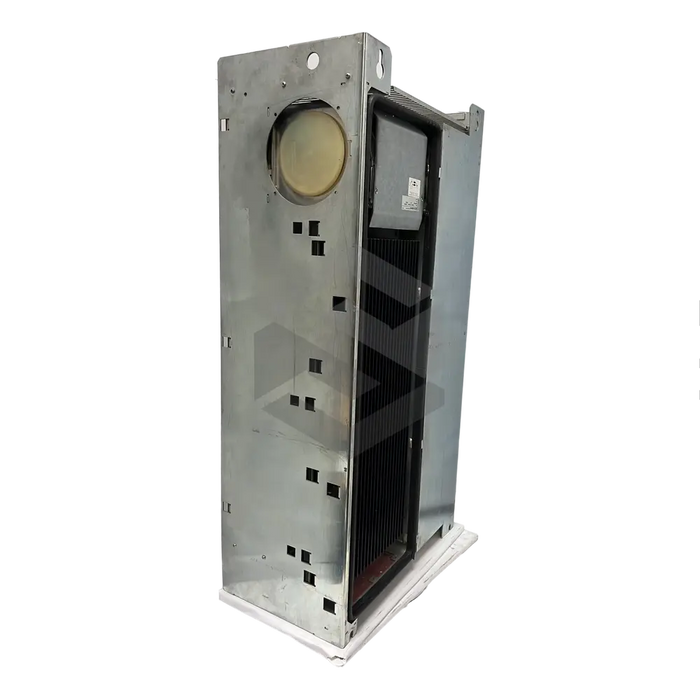

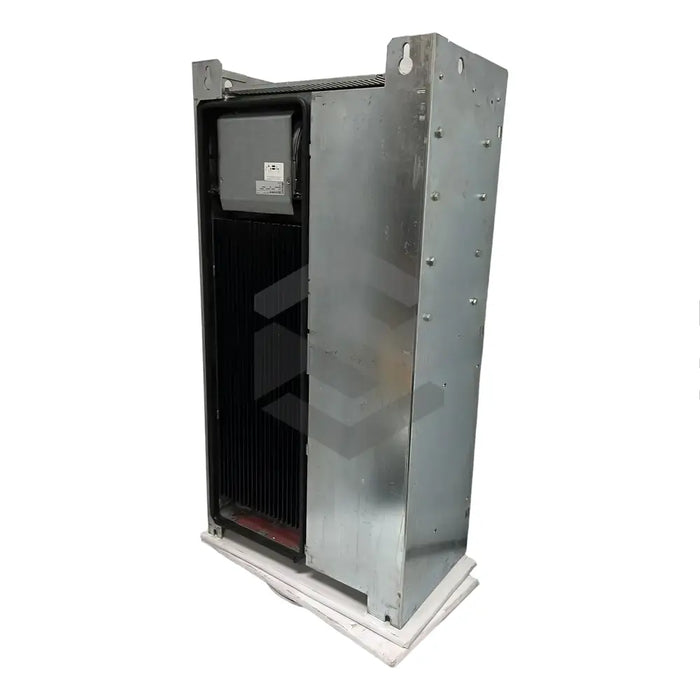

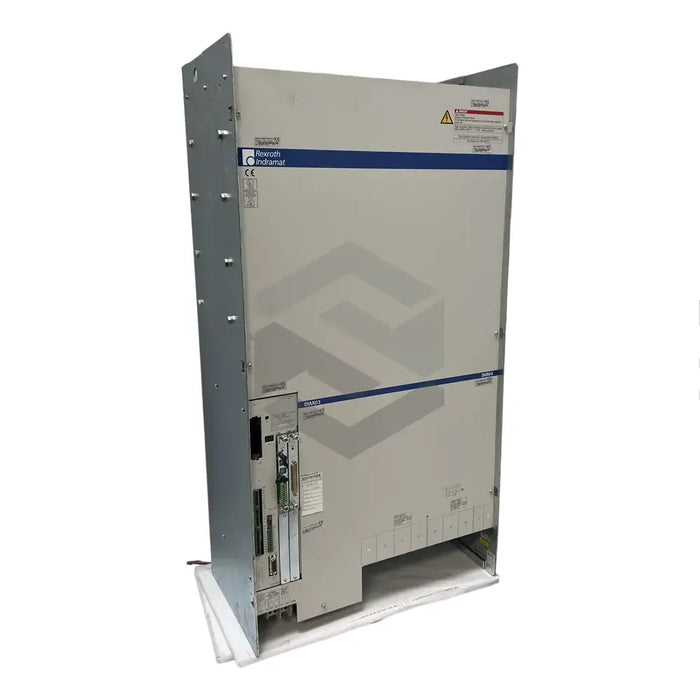

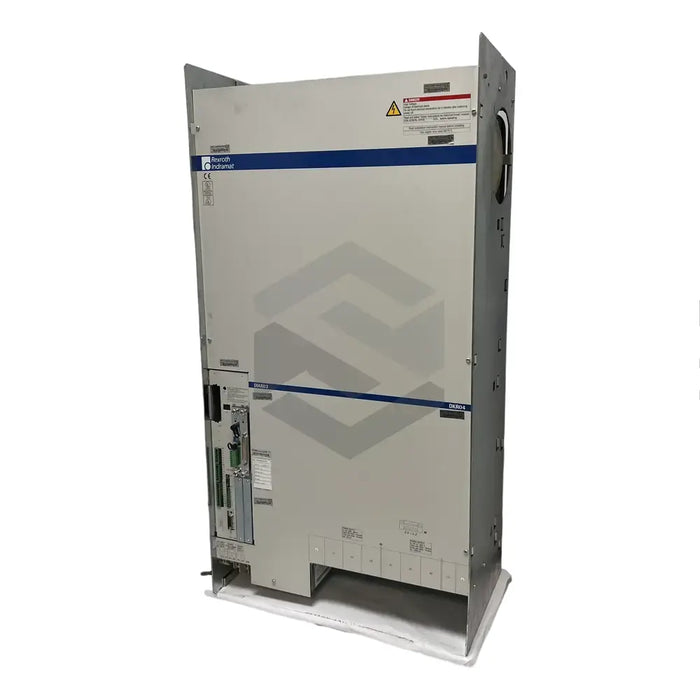

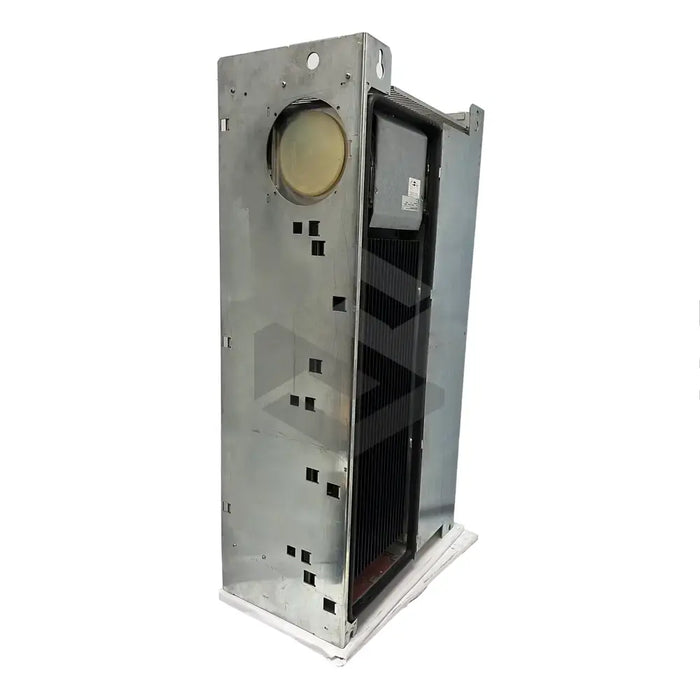

C image of DKR04.1-W300E-BE23-01-FW | Main (Front Left)

DKR04.1-W300E-BE23-01-FW

by Bosch Rexroth Indramat
$14,879.48 - $14,879.48
$14,879.48
$14,879.48 - $14,879.48
$14,879.48

In Stock, Ships Fast

The DKR04.1-W300E-BE23-01-FW, produced by Bosch Rexroth Indramat, is a cutting-edge drive controller ideal for numerically controlled machine tools and printing machines. With robust digital intelligent control, it delivers a broad range of speed and consistent power. Its built-in blower uses air from inside or outside the cabinet for optimal cooling. It operates on a rated power voltage of AC 3 × 400 ~ 480V, with a control voltage of AC 230V consuming 300 VA control voltage power. The model requires a power voltage of 0 - 380V and can handle a maximum frequency of 1600 Hz for an 8kHz drive. It can dissipate 2500W of heat while running at a continuous current of 210A/150A, producing a continuous power of 93kW/66kW at the motor's driven shaft. Weighing about 150 kg in total, with accessories tipping the scales an additional 1.7 kg, this unit also includes an external brake resistor. Equipped with a SERCOS interface for effective communication and a basic unit for installing plug-in modules, it offers protection against solid particles above 12.5mm diameter, and can operate in temperatures ranging from +5 to +45 degrees Celsius.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Model

DKR04.1-W300E-BE23-01-FW

Industrial Use

Numeric Controlled Machine Tools and Printing Machines

Cooling System

Built-in Blower

Control Voltage

AC 230V with 300 VA

Required Power Voltage

0 – 380V

Drive Frequency

800 Hz/1600 Hz for a 4 kHz/8 kHz drive

Heat Dissipation

2500W

Continuous Current

210 A/150 A

Drive Power

93 kW/66 kW

Drive Weight

150 kg

Weight of Accessories

1.7 kg

Weight of External Brake Resistor

15.3 kg

Protection Category

IP20

Permissible Temperature Range

+5 to +45 degree Celsius

Maximum Temperature Range

+55 with a 20% reduction in drive data

Module Slots

5 slots (U1 to U5)

Communication Interface

SERCOS

Motor Feedback

Digital Servo and Resolver

Firmware Module

ESM02.3
