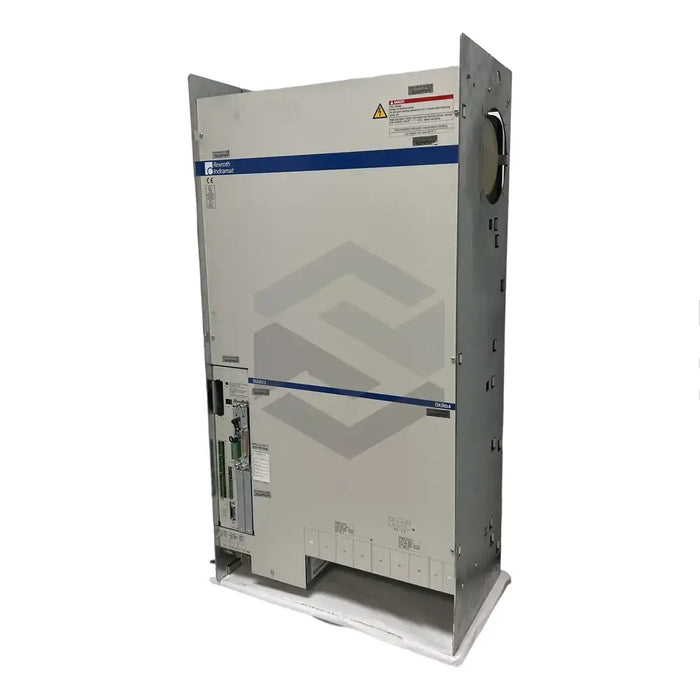

C image of DKR04.1-W300N-BE23-01-FW | Main (Front Left)

DKR04.1-W300N-BE23-01-FW

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The DKR04.1-W300N-BE23-01-FW drive controller manufactured by Bosch Rexroth Indramat is ideal for use with Rexroth Indramat’s LSF/LAF linear motor series and spindle motors. With a rated current of 300 Amps, the DKR04.1-W300N-BE23-01-FW features a controller function numeric code of 23 and version function numeric code of 01. Built for air cooling with an integrated blower, the controller utilizes a command communication interface and supports digital servo and resolver feedback. The controller, which requires standalone purchase of firmware, doesn't include a bleeder. Weighing approximately 150 kilograms, it comes with an accessories kit that weighs 1.7 kilograms. For operation, it requires three-phase input at 400-480 Volts AC and 50-60Hz frequencies. It uses 230 Volts AC input for the control circuit. Designed for industrial applications including NC machine tools and printing machines, it needs parameterization at startup. Installation should be performed by experienced personnel due to high current and voltage levels.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Code

DKR04.1-W300N-BE23-01-FW

Series

DKR 04

Design Use

Rexroth Indramat motors belong to LSF / LAF linear motor series and with spindle motors

Rated Current

300 Amps

Function Numeric Code

23

Version Function Numeric Code

01

Cooling Method

Air cooling with integrated blower

Bleeder

Not Included

Communication Interface

SERCOS

Feedback

Digital servo and resolver

Approximate Weight

150 kilograms

Accessories Kit Weight

1.7 kilograms

Required Input Voltage

400-480 Volts AC

Input Phase

Three-phase

Input Frequency

50 to 60 Hertz

Control Circuit Input

230 Volts AC

Control Circuit Power Consumption

300 VA

Uses

Industrial applications, NC machine tools, printing machines

Startup Requirement

Parameterization for proper motor control and monitoring

Safety Precautions

Not suitable near people with pacemakers, metal implants and hearing aids; hot areas should not be touched before cooling; should be installed by experienced personnel.
