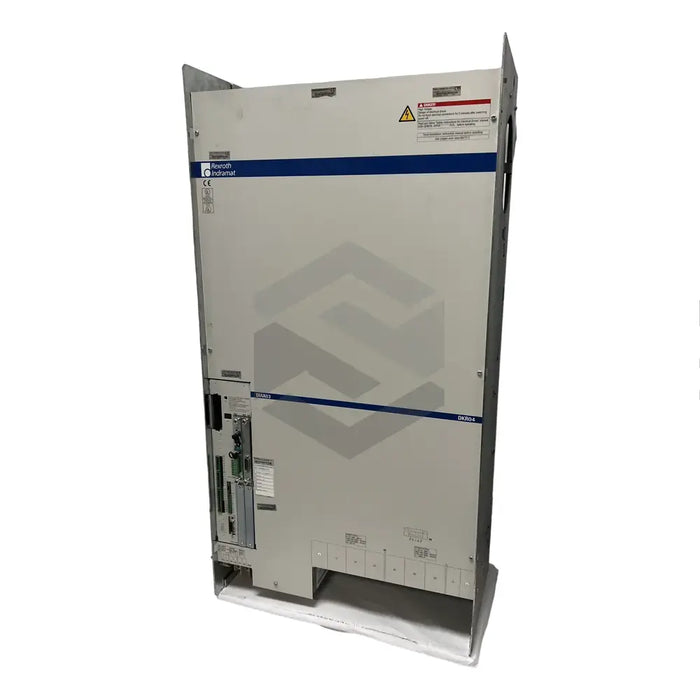

C image of DKR04.1-W300N-BE79-01-FW | Main (Front Left)

DKR04.1-W300N-BE79-01-FW

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The DKR04.1-W300N-BE79-01-FW is a digital drive controller produced by Bosch Rexroth Indramat as part of the DKR04 series. Its key components include a basic unit, software module, command interface cards, and auxiliary plug-in modules, with firmware ordered as a separate entity. This model features a SERCOS command interface card, along with a variety of available plug-ins like encoder modules, digital and analog I/O modules, and CLC interface modules. The controller can support digital servo and resolver feedback, has air cooling with an operating temperature range of 5-45 Celsius, and a storage temperature of -30 to 80 Celsius. The controller operates at an elevation of up to 1000m, with a maximum current rating of 300 Amps and an input voltage of 400-480 Volts AC. It boasts a peak power of 92 kW, though does not include a factory-installed bleeder.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Name

DKR04.1-W300N-BE79-01-FW

Product Type

Digital Drive Controller

Series

DKR04

Main Components

Basic Unit, Software Module, Command Interface Card(s), Auxiliary Plug-in Module(s)

Available Card Interfaces

Analog, SERCOS, Profibus, Interbus

Included Interface

SERCOS

Available Plug-in Modules

Encoder Modules, Digital I/O Modules, Analog I/Os, CLC Interface Modules

Function Numeric Code

79

Version Function Numeric Code

01

Feedback Support

Digital Servo and Resolver

Cooling Method

Air cooling through Integrated Blower

Storage Temperature Range

-30 to 80 degrees Celsius

Operational Temperature Range

5 to 45 degrees Celsius

Maximum Installation Elevation

1000 meters

Rated Current

300 Amps

Input Voltage Rating

400 to 480 Volts AC

Bleeder Availability

No (Auxiliary Bleeders can be ordered)

Peak Power Rating

92 kilowatts
