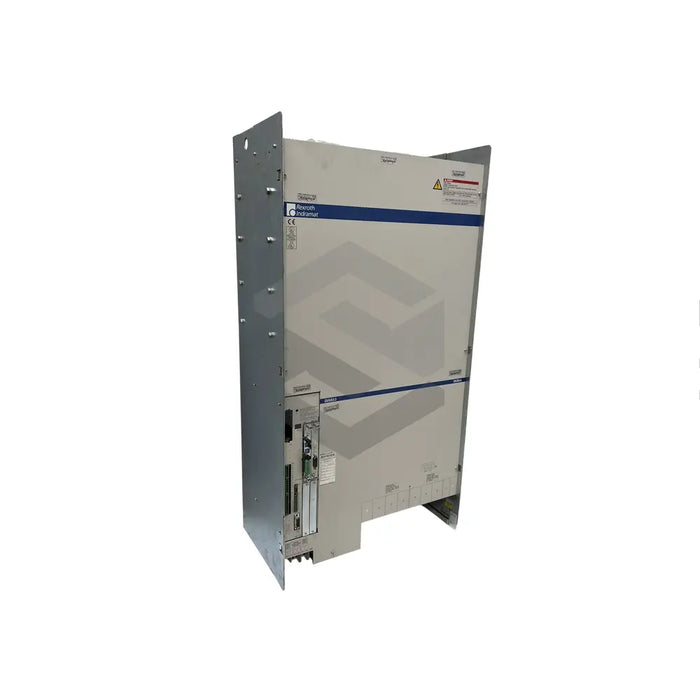

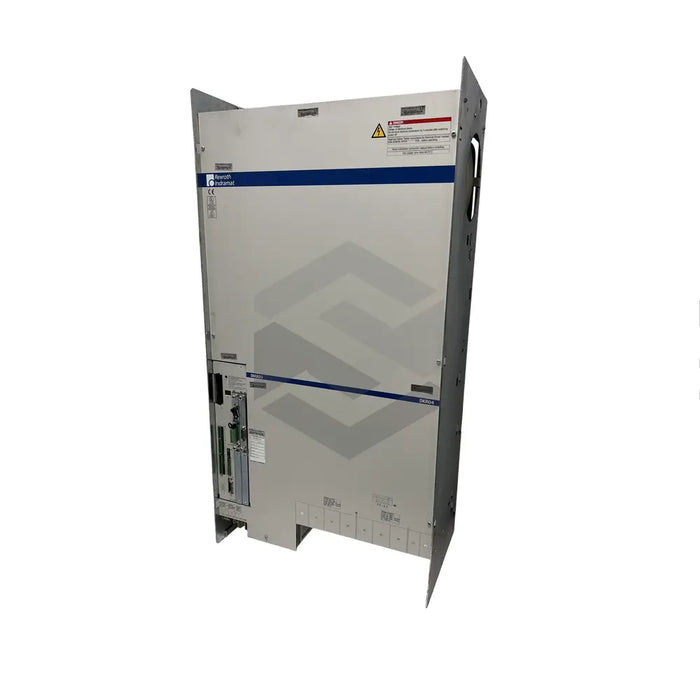

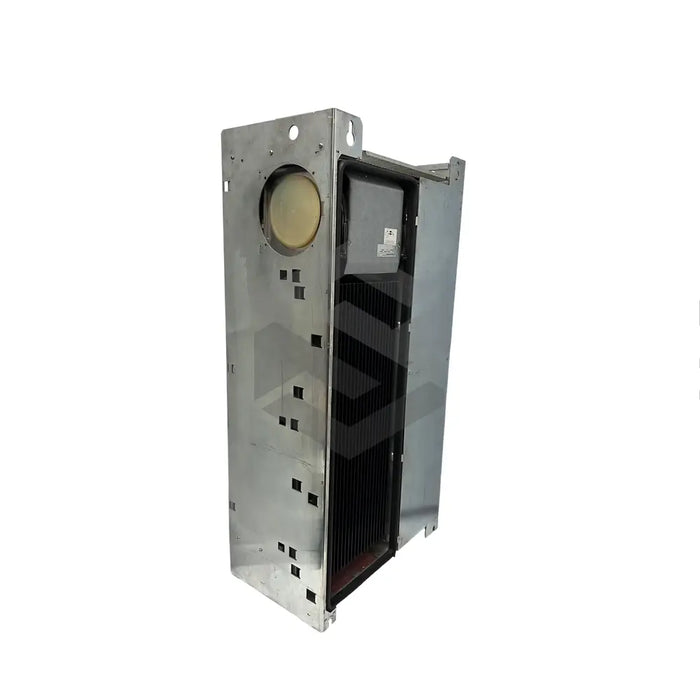

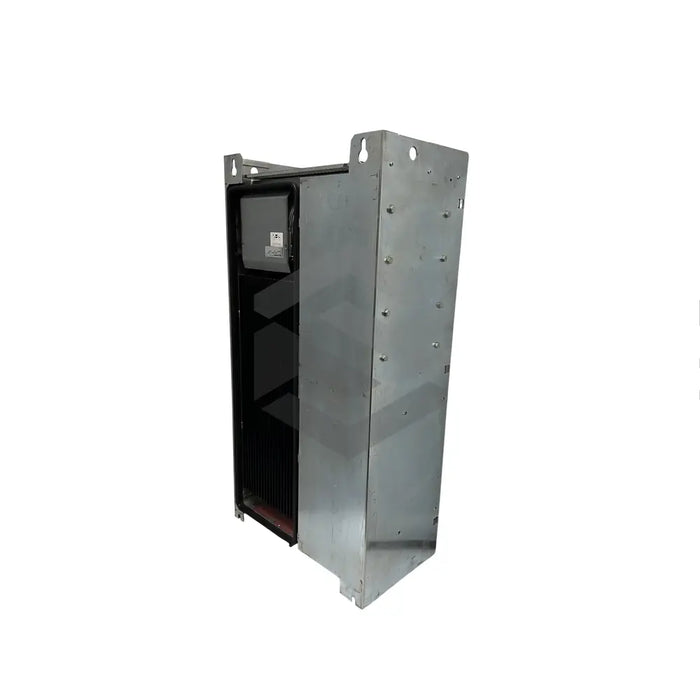

DKR04.1-W400E-BE56-01-FW

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
Bosch Rexroth Indramat's DKR04.1-W400E-BE56-01-FW is a specially designed compact converter drive tool that performs direct electrical power conversion from main grid lines. This versatile drive operates within a system frequency range of 50 to 60 Hz and utilizes control voltage of AC 230V. The DKR04.1-W400E-BE56-01-FW has an onboard brake resistor that aids in controlled slowing at power interruption. Power generation is divided between two operating frequencies: 4 kHz, yielding a continuous power of 93 kW and current of 210 A, and 8 kHz, generating 66 kW of power with a 150 A continuous current input. Weighing around 150 kg, the drive comes equipped with an efficient built-in blower cooling system that maintains heat dissipation within 2500 W, providing the drive with an IP20 protection rating. With a maximum elevation of 1000m, this drive can cater to high power equipment such as lathes and elevators.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

Compact Convertor Drive Tool

Model

DKR04.1-W400E-BE56-01-FW

System Frequency

50 to 60 Hz

Control Voltage

AC 230V

Control Voltage Error

±10%

System Frequency Error

±2 Hz

Operating Frequency 4 kHz

Continuous Power 93 kW and Continuous Current 210 A

Operating Frequency 8 kHz

Power 66 kW and Continuous Current 150 A

Peak Power at 4 kHz and 8 kHz

66 kW

Continuous Restored Power

66 kW

Peak Power at Peak Current Range (282 A)

125 kW

Weight

150 kg (drive), 1 kg and 7 kg (accessories kit)

Cooling System

Built-in Blower

Heat Dissipation

1800 W (air channel), Up to 2500 W (total)

Protection Level

IP20

Maximum Elevation

1000m

Maximum Current

400A

SERCOS Interface

Function Numeric Code 56

Version Function Numeric Code

01
