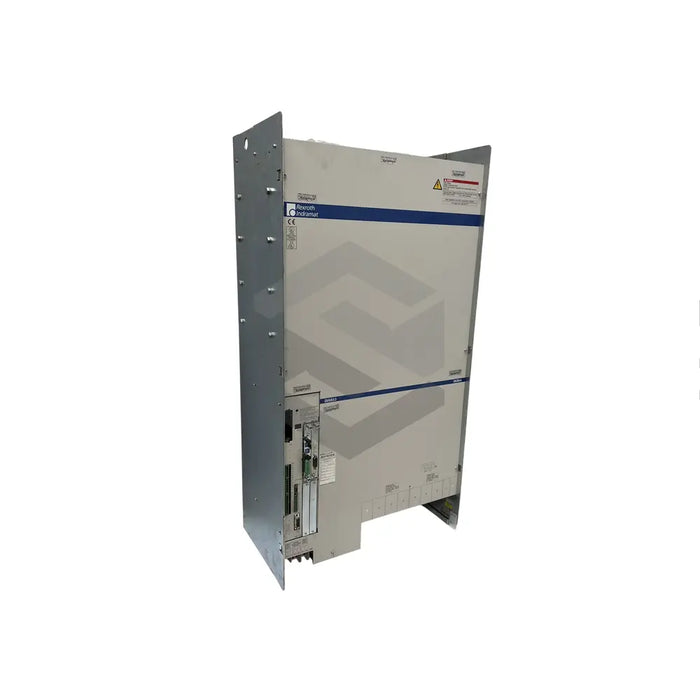

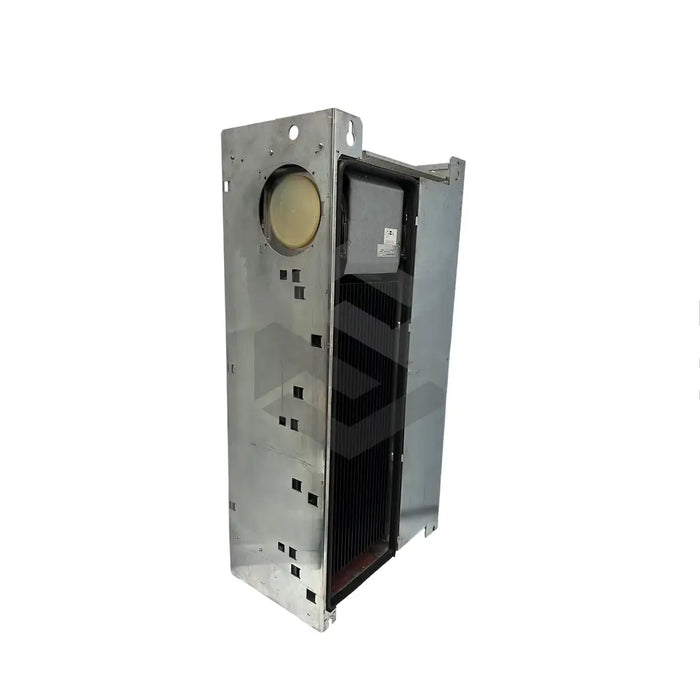

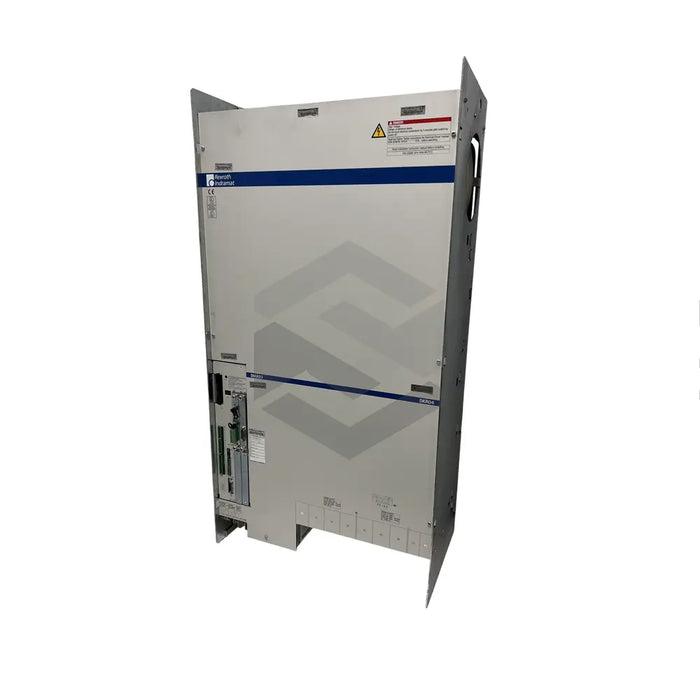

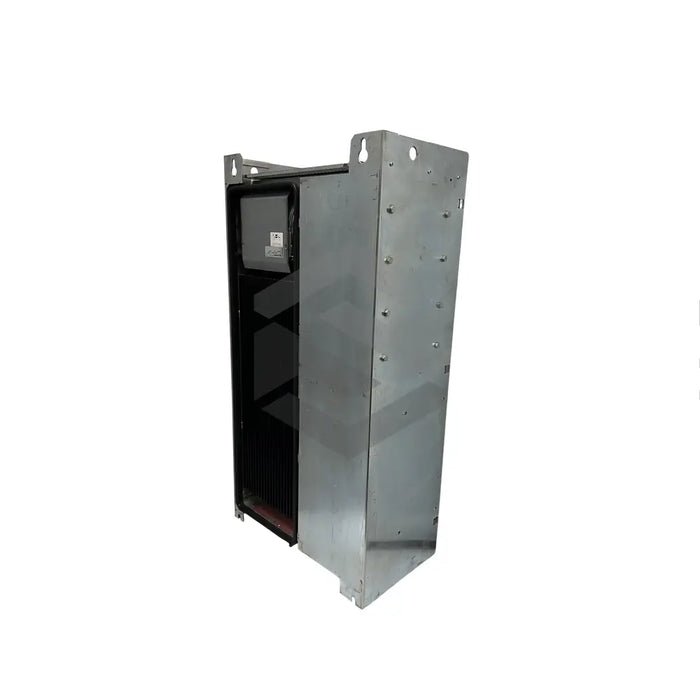

S image of DKR04.1-W400E-BE73-01-FW

DKR04.1-W400E-BE73-01-FW

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The DKR04.1-W400E-BE73-01-FW is a high-performance converter drive, engineered and manufactured by Bosch Rexroth Indramat. This drive system is designed to efficiently provide direct power from a mainline source with variable voltages ranging from AC 400-480V. With an integrated braking resistor, this device effectively manages power outages. It operates at a frequency of 50-60Hz and a control voltage of AC 230V, with a maximum drive power peak of 125 kW and an extreme current value of 282 A. It is capable of generating continuous powers from 66 kW to 93 kW at different frequencies, supporting high rotational speed machinery with clockwise and anti-clockwise torque. This converter drive, weighing approximately 150 kg, is equipped with a built-in-blower cooling system, an accessory kit, and protection up to class IP20. Its maximum current capacity is 400 A, compatible with high-power industrial machines. The functioning of the unit is unaffected up to an elevation of 1000 m.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

Compressed Converter Drive

Model Number

DKR04.1-W400E-BE73-01-FW

Operating Voltage

3 × AC 400-480V

Operating Frequency

50 to 60Hz

Control Voltage

AC 230V

Drive Power Peak

125 kW

Extreme Current Value

282 A

Continuous Power at 4kHz

93kW

Input Continuous Current at 4kHz

210 A

Continuous Power at 8kHz

66kW

Input Continuous Current at 8kHz

150 A

Weight

150kg

Accessories Weight

1 kg or 7 kg

Cooling System Type

Built-in-blower

Heat Dissipation Energy

1.8 kW

Total System Energy Dissipation

2.5 kW

Operating Altitude

Up to 1000 m above sea level

Current Capacity

Up to 400 A

Protection Class

IP20

Interface

SERCOS

Function Numeric Code

59

Version Function Numeric Code

01
