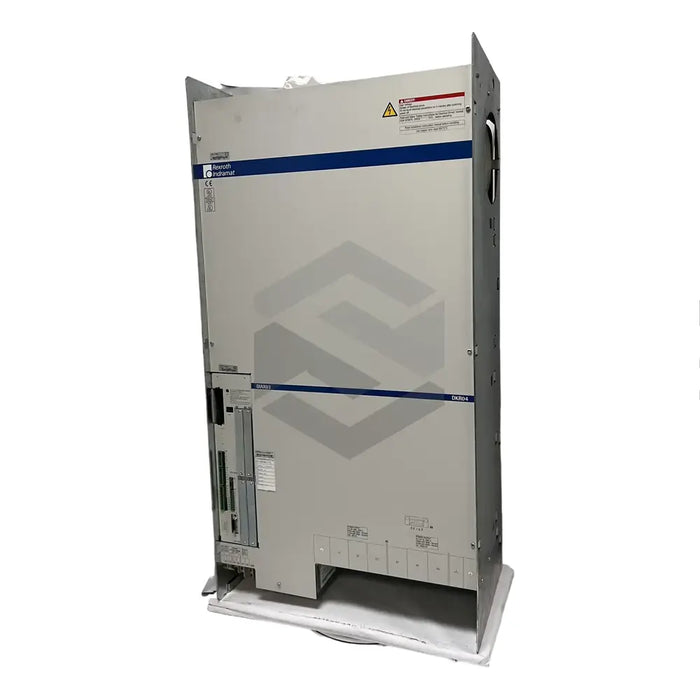

C image of DKR04.1-W400N-B | Main (Front Left)

DKR04.1-W400N-B

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The DKR04.1-W400N-B is a drive controller specifically designed to manage and monitor electrical motor operations. Possessing the ability to work in conjunction with extra sensors, its peak performance is achieved within particular ambient conditions. The unit does not include a bleeder as standard and is suitable for installation up to an altitude of 1,000m without compromising product data. It features an integrated mains contactor and includes a fitted blower and heatsink within its housing. The controller allows for the addition of multiple modules depending on application requirements. Constantly verifying sufficient load capacity for operation outside stated conditions is paramount for optimal performance. Rated at a continuous current of 150A at 8kHz, the controller's software is easily identified via a separate rating plate. Installation requirements include matching fixing bolts, threaded holes, and appropriate venting. Additional handling instruction is provided to ensure proper connection of plug-ins and sealing of connector ends.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Product Type

DKR04.1-W400N-B Drive Controller

Usage

Control and Monitoring of Electrical Motors

Additional Features

Potential for Additional Sensors

Climate Restrictions

Cannot be Used Outside Ambient Conditions

Bleeder

Not Included

Maximum Installation Elevation

1000m Above Sea Level

Additional Components

Integrated with a Mains Contactor

Extra Features

Fitted with Blower and Heatsink

Modular Capability

Can be Fitted with Several Modules for Specific Applications

Current Rating

Continuous Current of 150A at 8kHz

Rating Plates

Present on Front and Bottom Left

Installation Requirements

Matching Fixing Bolts and Threaded Holes on Rear Wall

Air Circulation

Vents in the Mounting Panel on the Rear

Lifting Guidance

Lift by Anchoring Mounting Frame to Rear Wall of Control Cabinet

Connector Conditions

Connect or Separate Only When Dry

Replacement Protocol

Seal Open Connector Ends

Electronic Work Protocol

Work Only After Making Contact with a Grounded Object
