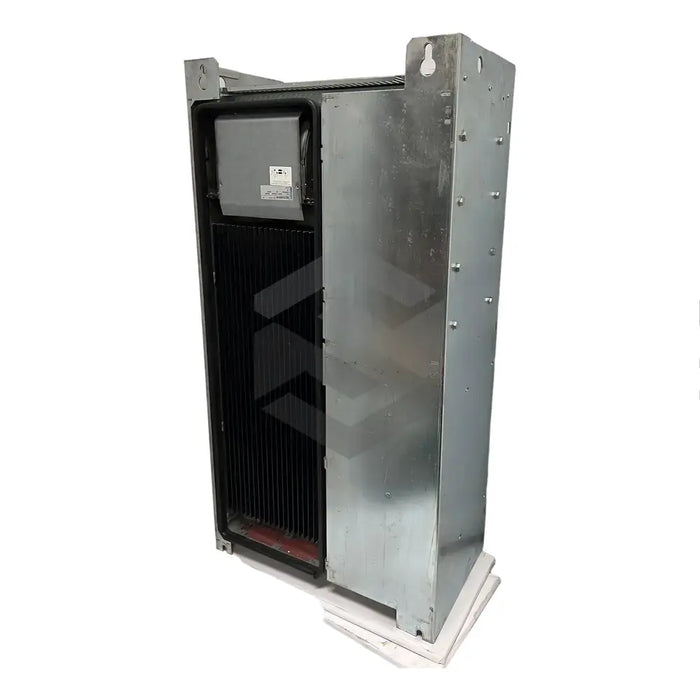

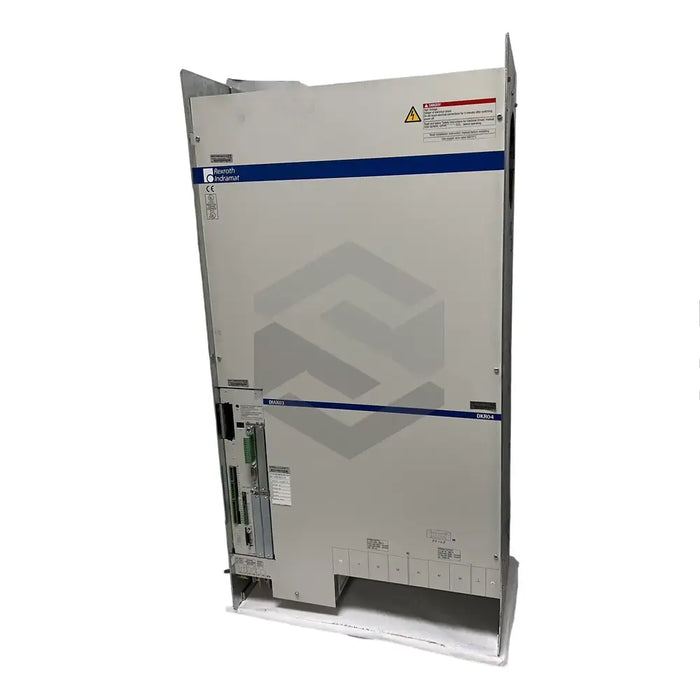

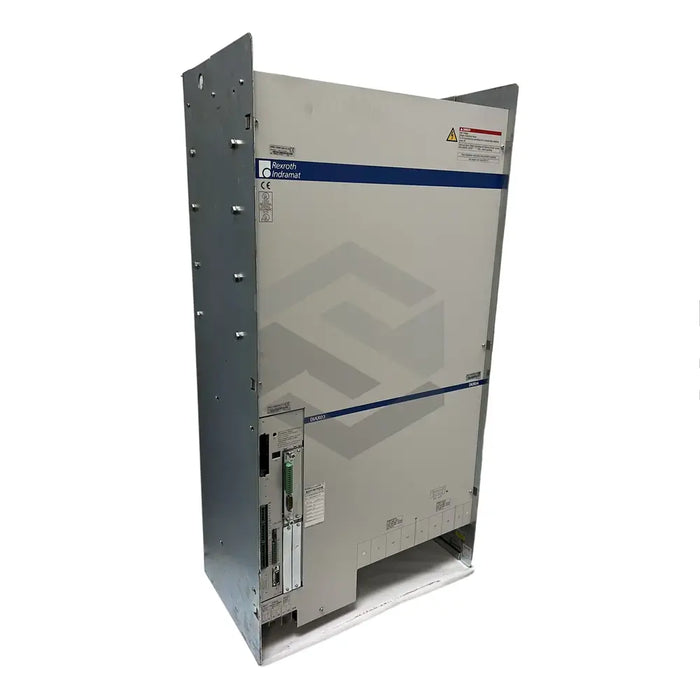

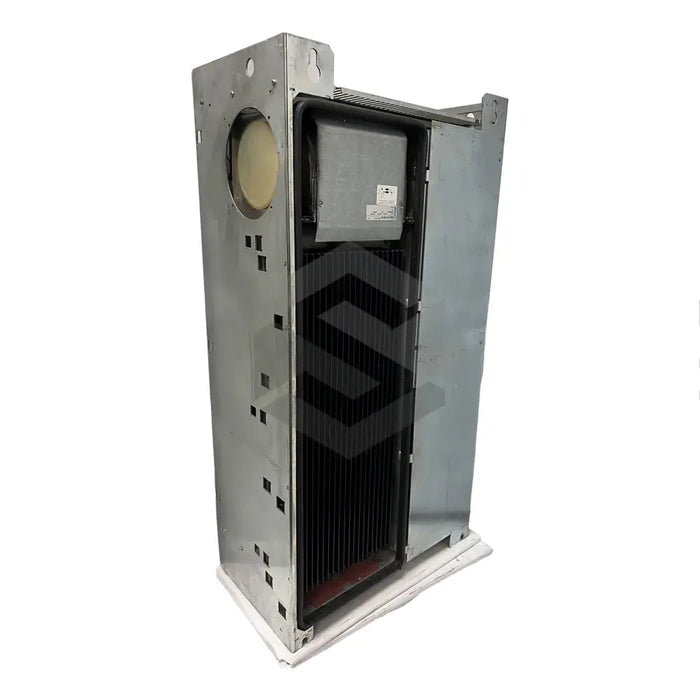

C image of DKR04.1-W400N-BA01-01-FW | Main (Front Left)

DKR04.1-W400N-BA01-01-FW

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
Bosch Rexroth Indramat's DKR04.1-W400N-BA01-01-FW is a high-quality, powerful and versatile drive controller, created for usage across diverse industries. Subjected to rigorous testing, this controller offers a distinct set of characteristics suited for different requirements. A key feature of the DKR04.1-W400N-BA01-01-FW is its adjustable cooling system, comprised of interchangeable blower or sink systems, conveniently lodged within the product housing. This drive controller is also equipped with an expandable braking system, offering consistent performance even during main power failures, a feature not found in other series like DKR02 and DKR03. The controller's technical specifications are as follows: rated power voltage ranges between 3xAC400 to 480+/- 10%, control voltage AC is 230V +/- 10%, system frequency is 50-60Hz, control voltage frequency is 50-60+/-2Hz. The peak currents and power range from 212-282 amps and 92-125 kW respectively. The unit's weight is around 150kgs.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

Drive Controller

Model Number

DKR04.1-W400N-BA01-01-FW

Cooling System

Integrated into Housing (Blower or Sink)

Braking System Capability

Expandable with External Brake Resistor

Voltage (Power)

3xAC400 to 480+/- 10%

Voltage (Control)

AC 230V +/- 10%

Frequency (System)

50 to 60Hz

Frequency (Control)

50 – 60+/-2Hz

Peak Current

212 to 282 Amps

Peak Power

92 to 125 kW

Weight

Approximately 150kg.
