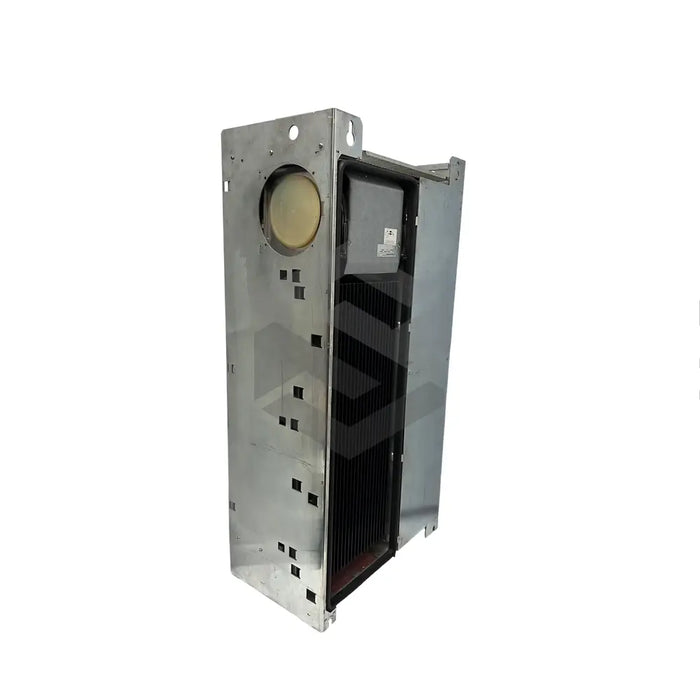

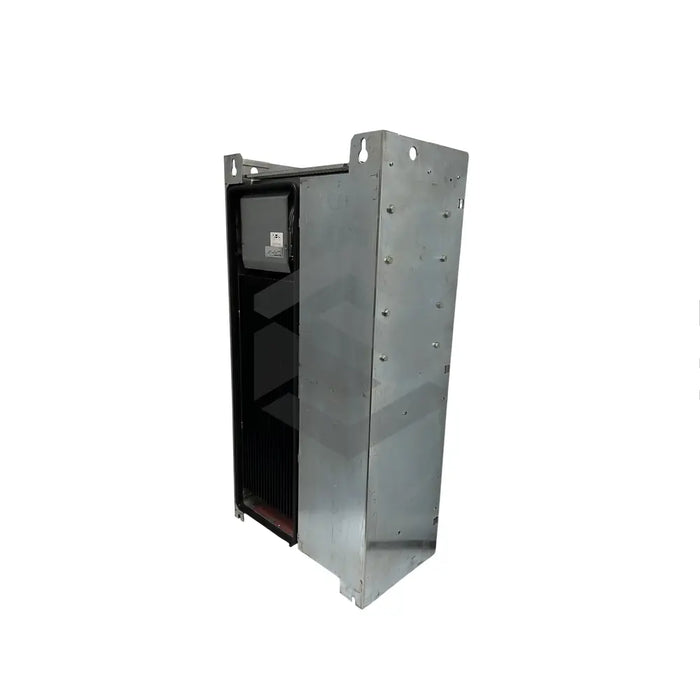

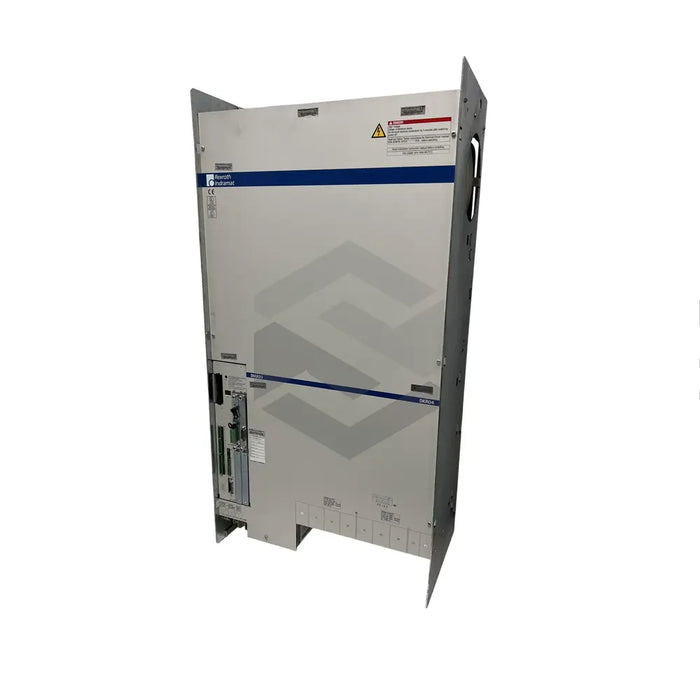

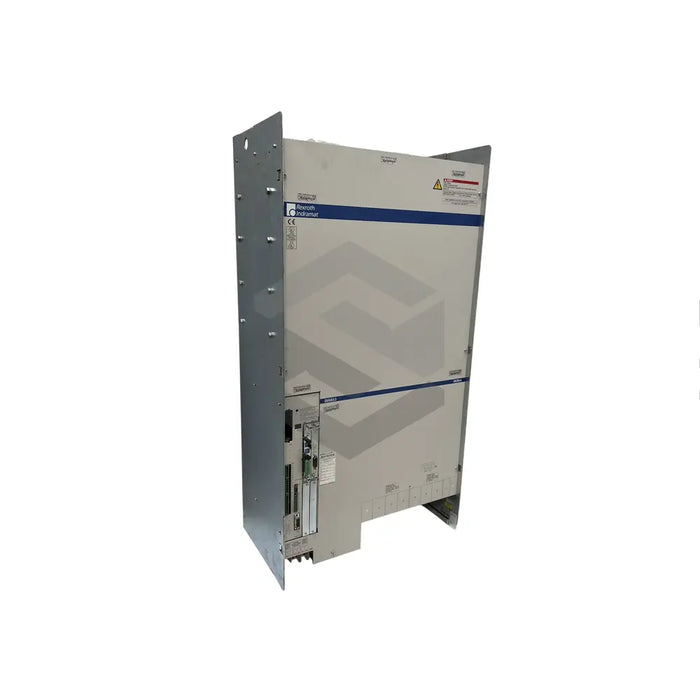

S image of DKR04.1-W400N-BE33-01-FW

DKR04.1-W400N-BE33-01-FW

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
Produced by Bosch Rexroth Indramat, the DKR04.1-W400N-BE33-01-FW is a standard drive controller offering diverse cooling methods including air and an in-built blower. The device comes with a rated current of 400 and employs digital servo and resolver feedback mechanisms. It executes command communications via a SERCOS interface, and requires separately-ordered firmware. Featured technical specifications include a control voltage of AC 230 V, ± 10%, and a control power of 300VA, while continuous current measures at 210A for 4 kHz and 150A for 8 kHz. Peaks occur at 282A current. It generates heat dispersal at 2,500W with coolant in an air channel managing 1,800W. Weighing around 150kg, it operates optimally at ambient temperatures of +5° to +45° C, and altitude of 0 to 1000m above sea level. Exceeding these and other conditions may lead to diminished performance or damage.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

Drive Controller

Model Number

DKR04.1-W400N-BE33-01-FW

Cooling Mode

Air or built-in blower

Rated Current

400

Bleeder

None

Feedback

Digital Servo and Resolver

Command Communication

SERCOS Interface

Function Numeric Code

33

Version Function Numeric Code

01

Firmware

Must be ordered separately

Control Voltage

AC 230 V, ± 10%

Control Power

300VA

Continuous Current (4 kHz)

210A

Continuous Current (8 kHz)

150A

Peak Current

282A

Total Heat Dissipation at Continuous Current

2500W

Heat Dissipation in Air Channel with Coolant

1800W

Weight of Drive

150kg

Weight of Accessories Kit

1.7kg

Ambient Temperature Range

+5° to +45° C

Installation Elevation

0 to 1000m above sea level

Maximum Ambient Temperature

+55 °C

Maximum Installation Elevation

5000 m above sea level.
