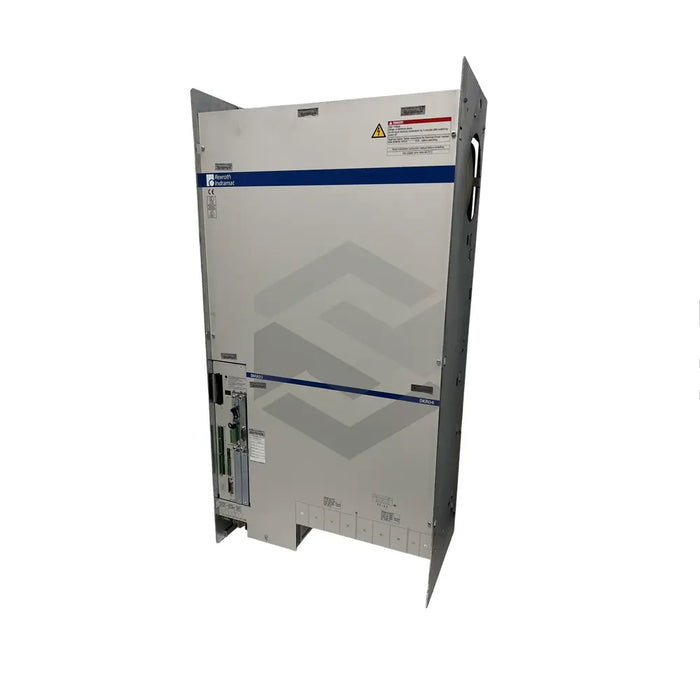

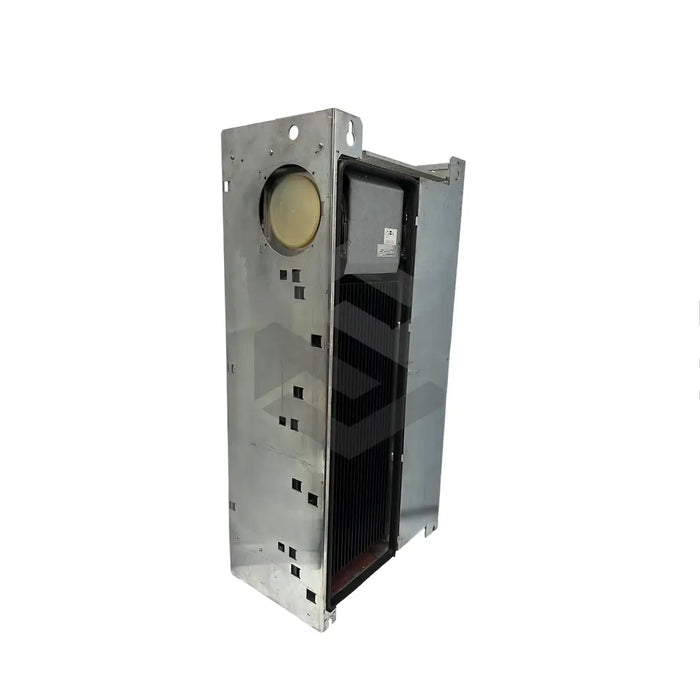

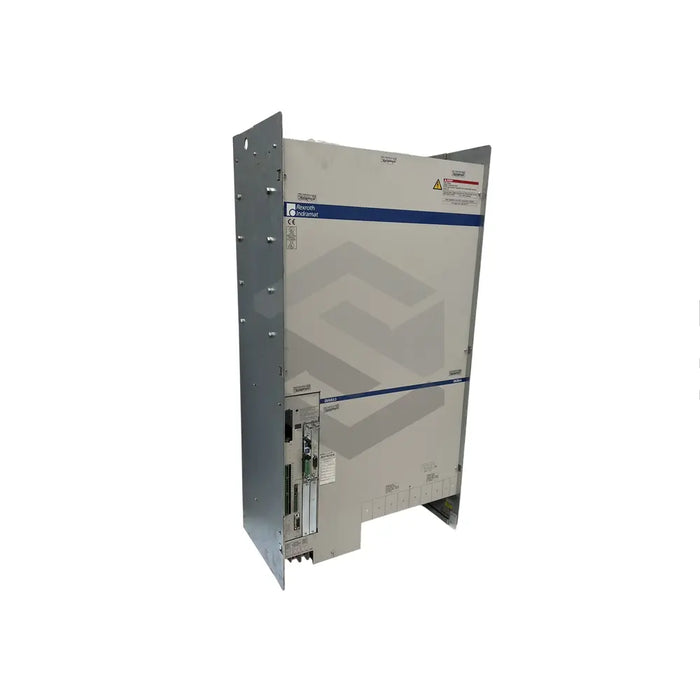

S image of DKR04.1-W400N-BE56-01-FW

DKR04.1-W400N-BE56-01-FW

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The DKR04.1-W400N-BE56-01-FW is a Rexroth drive controller, produced by Bosch Rexroth Indramat, that is specifically engineered to control AC main spindle motors, frameless spindle motors, and linear motors. It features a SERCOS interface for command communication and is uniquely cooled by an integrated air blower. This drive controller operates on FW firmware, requiring a separate order, and is typically installed into the DSM software modules as EPROMs. It can be directly plugged into a grounded mains connection with 3xAC 400V-480V and tailored to a range of applications via module inserts in ports U1-U5. An integrated mains contactor and emergency stop shutdown function are also incorporated for safety. This controller is delivered fully configured, including a basic unit, command interface cards, and auxiliary plugin modules. Primarily used in printing machines and NC machine tools, it should be installed and operated as per the manual's guidelines.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

Drive Controller

Series

DKR

Designed For

Rexroth Indramat motors (AC main spindle motors, frameless spindle motors, linear motors)

Cooling Method

Air with built-in blower

Rated Voltage

400 Volts

Design

Standard without a bleeder

Communication Interface

SERCOS

Firmware

FW (must be ordered separately)

Installation

Plugged into a grounded mains connection with 3xAC 400V...480V

Added Features

Integrated mains contactor and an emergency stop shutdown device

Configurable Ports

U1 to U5

Recommended Applications

Printing machines and NC machine tools

Operating Conditions

Should be operated in the specified ambient temperature range and in the position given in the manual.
