S image of DKR04.1-W400N-BE74-02-FW

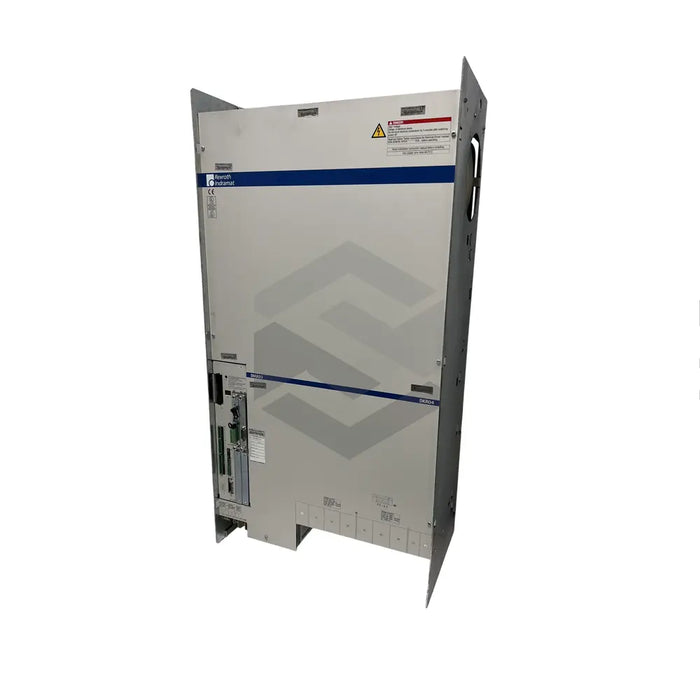

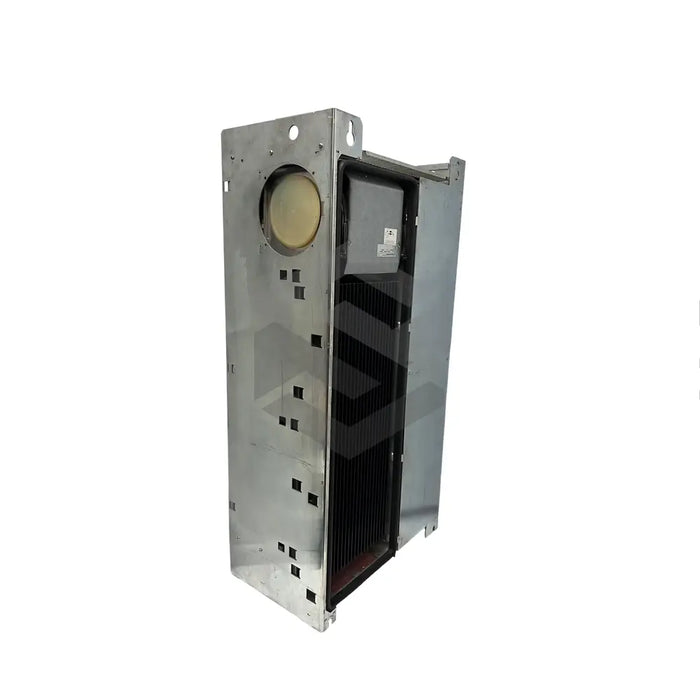

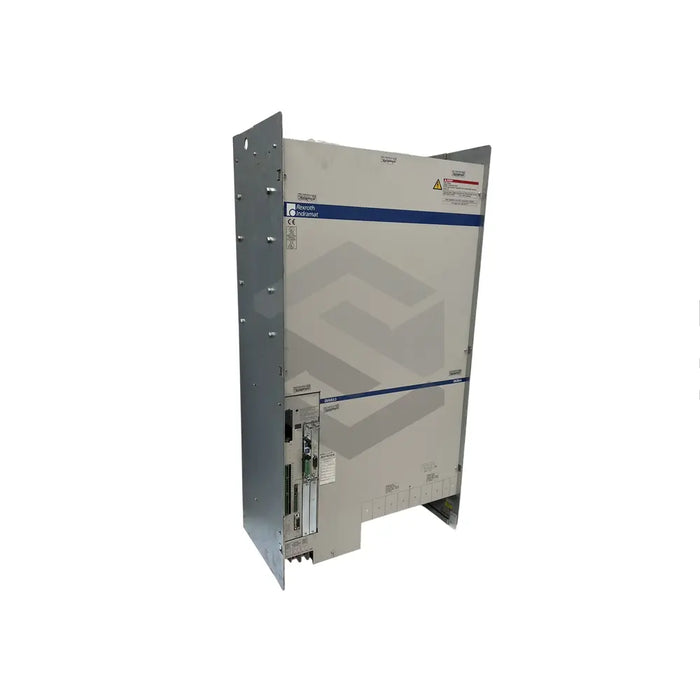

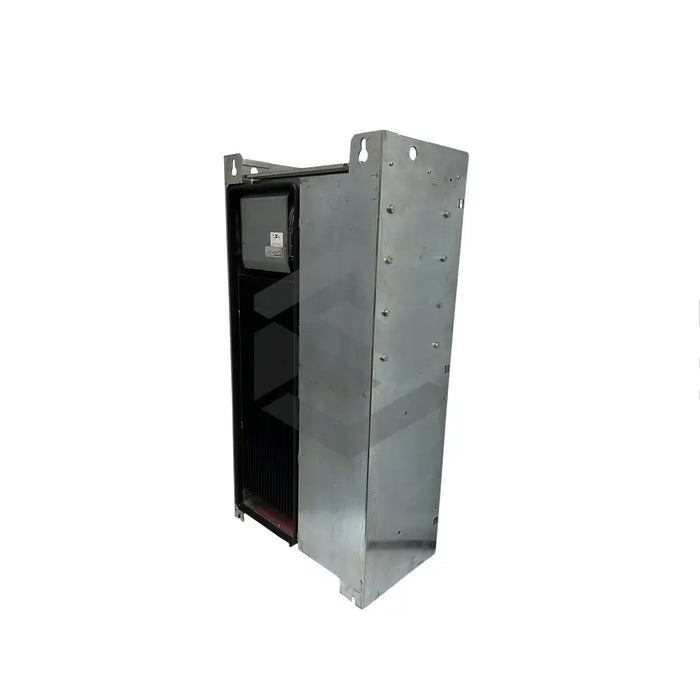

DKR04.1-W400N-BE74-02-FW

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
Bosch Rexroth Indramat's DKR04.1-W400N-BE74-02-FW is an advanced drive controller designed for superior operation of electrical motors. This model from the DKR range is versatile and adaptable for various applications due to the different power drives and interfaces it supports. The controller delivers continual drive power of 93 kW and 66 kW at 4 kHz and 8 kHz resp., with a drive controller power voltage of 0-380 Volts. It emits 2500 Watts of heat during operation, has an internal air blower for heat conduction, and an internal air flow channel. Weighing approximately 150 kg, this controller works optimally within 0 to 1000 metres above sea level with a peak current of 282 amperes. It functions between 50-60 Hz (tolerance ±2 Hz) and requires a control voltage power of 300 VA. Finally, it operates within a safe ambient temperature range of 5-45°C and meets the IP20 protection category.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product

Drive Controller DKR04.1-W400N-BE74-02-FW

Application

Monitor and Control Operation of Electrical Motors

Continuous Drive Power

93 kW at 4 kHz and 66 kW at 8 kHz

Drive Controller Power Voltage

0-380 Volts

Heat Generation

2500 Watts

Air Blower

Integrated

Weight

150 kg (Additional 1-7 kg with accessories)

Altitude for operation

Operates within nominal range from 0 to 1000 meters

Peak Current

282 Amperes

Operating Frequency

50-60 Hz (tolerance 2 Hz up or down)

Control Voltage Power Requirement

300 VA

Continuous Current

210 Amperes at 4 kHz and 150 Amperes at 8 kHz

Continous Regeneration Power

66 kW

Control Voltage

230 Volts (Operational range 220-240 volts)

Operating Temperature

5 to 45 degree celsius (80% derating at 55 degree celsius)

Protection Category

IP 20 according to EN60529 / IEC529
