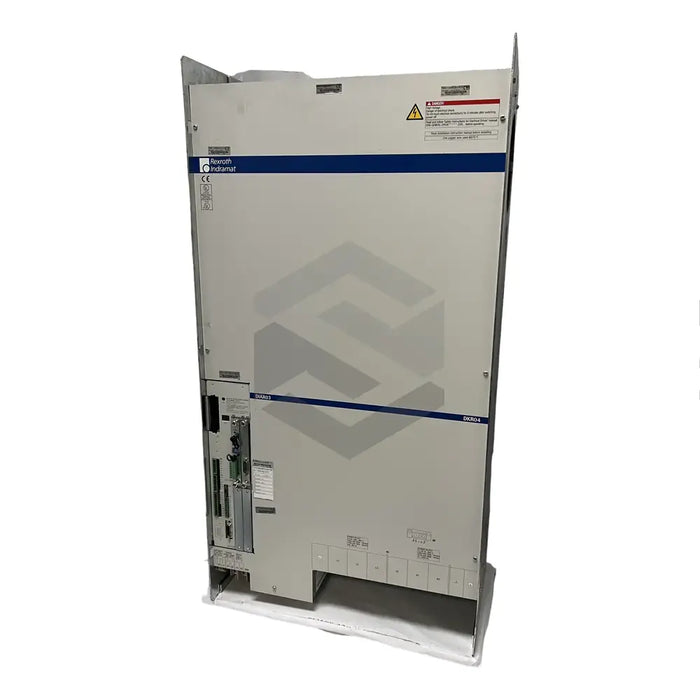

C image of DKR04.1-W400N-BE79-01-FW | Main (Front Left)

DKR04.1-W400N-BE79-01-FW

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The DKR04.1-W400N-BE79-01-FW, a drive controller by Bosch Rexroth Indramat, is used for digital management of electrical motors in printing and NC machine tools. Operating on a control voltage of AC 230 Volts (+10 or -10 volts) within a frequency range of 50-60Hz, it offers 300VA control voltage power. Its power voltage varies from 0-380 volts. This controller delivers digital servo and resolver feedback via a SERCOS interface and is tagged with the function numeric code 79. The device comes with firmware code FW, which needs to be separately ordered. Capable of delivering up to 66kW of peak regenerated power for 10 seconds, it weighs around 150 kg while its accessories may add an additional 1-7kg. With a built-in fan blower that dissipates 1800 watts, the controller releases a modest 2500 watts of heat. To maintain performance, the ambient temperature should be kept between 5℃ and 45℃ and it offers IP 20 protection per EN60529/IEC529 standards.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

Drive Controller

Series

DKR

Part Number

DKR04.1-W400N-BE79-01-FW

Application

Control Electrical Motors digitally

Use/Application

Printing machines and NC machine tools

Control Voltage

AC 230 Volts

Tolerance Level

+10 volts or -10 volts

Control Voltage Frequency

50 to 60 hertz

Control Voltage Power

300 VA

Drive Controller Power Voltage

0-380 Volts

Feedback Type

Digital Servo and Resolver

Interface

SERCOS

Function Numeric Code

79

Firmware Code

FW

Peak Regenerated Power

66 kW for 10 seconds

Product Weight

Approximately 150 kilograms

Accessory Weight

1 kilogram to 7 kilograms

Cooling Method

In-built Fan Blower

Heat Dissipation

1800 watts

Total Heat Released

2500 watts

Ambient Temperature For Efficiency

5 to 45 degrees celsius

Derating Temperture

55 degrees Celsius

Protection Level

IP 20 according to EN60529/IEC529 standard
