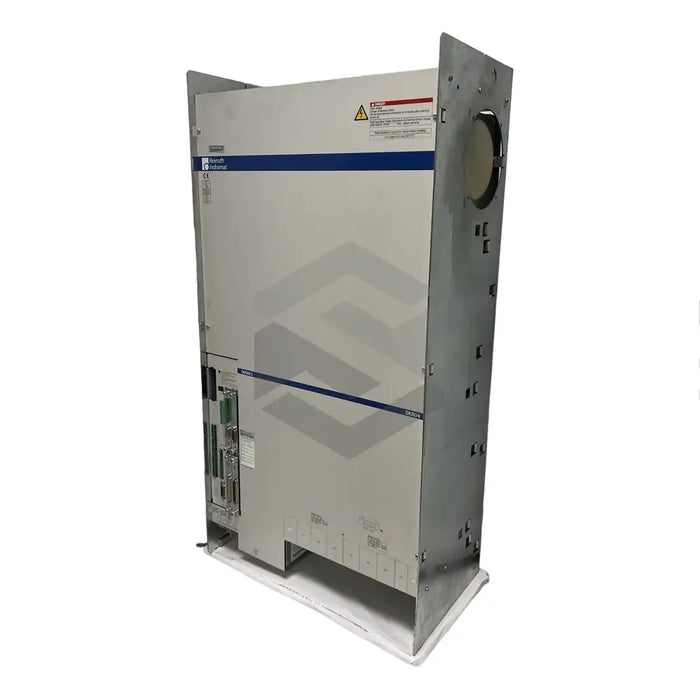

C image of DKR04.1-W400N-BT26-01-FW | Main (Front Left)

DKR04.1-W400N-BT26-01-FW

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
Produced by Bosch Rexroth Indramat, the DKR04.1-W400N-BT26-01-FW is a drive controller with a functional numeric code of 26 and a 400A rated current. The unit operates within a 5°C to 45°C temperature range and must be connected to the motor through a maximum 75m cable length. Featuring a 3 x NH80gl type F1 mains fuse, the controller functions with phase control at over 400V thanks to an integrated thyristor bridge. It also incorporates an isolating transformer with at least a power of 100kVA. The unit is designed for use with undergrounded three-phase systems and doesn't include a bleeder. It's paramount to be aware of proper storage and transport conditions to prevent property damage; it requires a dry, shock and dust-free environment. The device can be connected to dual cables, however, power should be off during installation to prevent electrostatic damage to its components.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Code

DKR04.1-W400N-BT26-01-FW

Operating Temperature

5°C to 45°C

Minimum Distance Between Signal/Control and Power Cables

100mm

Function Numeric Code

26

Rated Current

400A

Maximum Cable Length

75m

Fuse Type

3 x NH80gl type F1

Minimum Lead Cross-section

25mm2

Mains Voltage Rating

More than 400V

Isolating Transformer Power

Minimum 100kVA

Compatible Systems

Undergrounded three-phase systems

Inclusion of Bleeder

No

Transport Method

Shock-damped supports if necessary

Storage Requirements

Dry, shock-free, dust-free place

Name Plates

Two, front and bottom

Mounting

After power to the control cabinet is off

Mounting Frame Fixing

Using provided screws

Risk

Damage due to electrostatic discharge

Power Connector

Supports double cables
