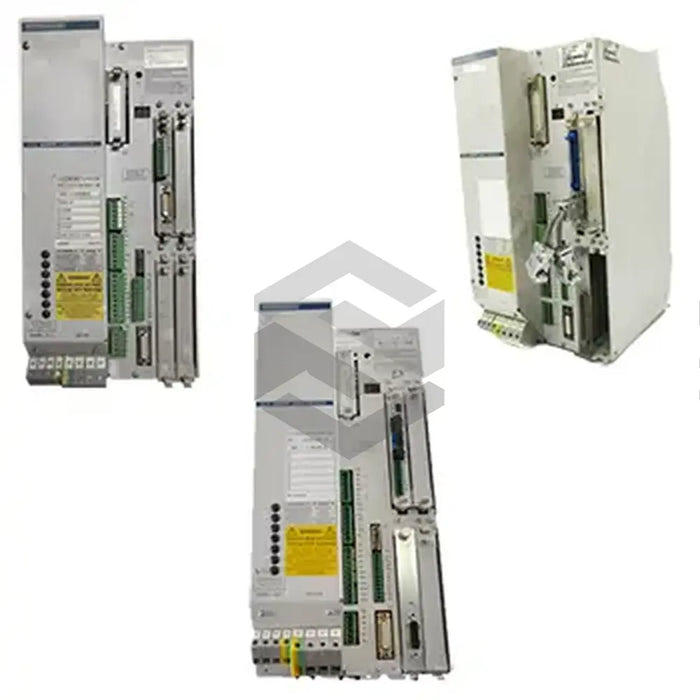

S image of DKS 1.1-W030B-DS01-00

DKS 1.1-W030B-DS01-00

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The DKS 1.1-W030B-DS01-00 is Bosch Rexroth Indramat's entry into the market of digital servo drives and components for industrial automation. Inherently energy-efficient, it operates at 50/60 Hz frequency, uses an 18 kHz PWM frequency, and connects directly to both 1-phase AC 230V and 3-phase AC 3 × 230V power sources. With a 1-phase power source, the drive needs a power and continuous current of 3.5 kW and 10 A respectively, while with a 3-phase power source, it requires 4.5 kW of power and 15 A of current. The drive ideally operates at an ambient temperature range of +5 to +45 degrees Celsius and up to 1000 meters above sea level. Moreover, it has an IP10 protection class and possesses a 12 A/16 A fuse to shield the circuit from failure. For effective communication, a SERCOS interface DSS 1.3 card is built into the U1 slot. Slots U2 to U4 are equipped for auxiliary plug-in modules, and the DSM 2.1 software module is placed in the U5 slot.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

Digital Servo Drives

Model Number

DKS 1.1-W030B-DS01-00

Electrical Connection

1-phase AC 230V and 3-phase AC 3 × 230V power source with ±10% tolerance

Operating Frequency

50/60 Hz

PWM Frequency

18 kHz

Power for 1-Phase

3.5 kW

Continuous current for 1-Phase

10 A

Power for 3-Phase

4.5 kW

Continuous current for 3-Phase

15 A

Rated and peak current

30 A

Operative Temperature

+5 to +45 degree Celsius

Maximum Operative Height

1000 meters above sea level

Protection Class

IP10

Circuit Protection

12 A/16 A fuse

Basic Unit

DKS 1.1-W030B-D

Communication Component

SERCOS interface DSS 1.3 card

Auxiliary Plug-in Slots

U2 to U4

Software Module

DSM 2.1 software module installed in the U5 slot.
