DKS 1.1-W030B-DS03-00

Original price $4,998.00 - Original price $4,998.00
Original price
$4,998.00 - $4,998.00
Current price $4,998.00
Available, Shipping Varies

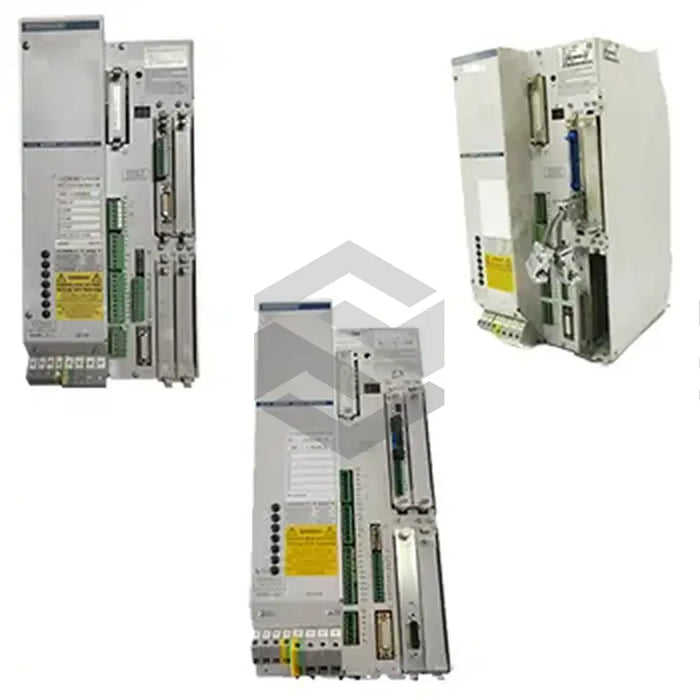

The DKS 1.1-W030B-DS03-00, a product of Bosch Rexroth Indramat, is a compact yet robust digital servo drive, built to deliver dependable and energy-efficient performance for industrial automation. Known for its application versatility, it is ideal for use with CNC machine tools, textile and printing machines, and robotics. The model integrates an effective braking system for safe operation and features a power supply unit that can connect directly to a 1-phase or 3-phase 230V AC power source. With a continuous regenerated power of 0.3 kW and a peak bleeder power of 5 kW, it ensures efficient drive deceleration. This model efficiently controls power supply to MDD AC servo motors using an 18 kHz PWM frequency. It incorporates a DSF encoder and resolver for accurate motor feedback and has customizable functions via plug-in cards and software module DSM 2.1. With an IP10 protection class, it's not water-resistant but can withstand temperatures up to +55 degrees Celsius.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Model: DKS 1.1-W030B-DS03-00
  • Design: Compact with integral braking system
  • Suitability: CNC machine tools, textile machines, printing machines, robots
  • Continuous Regenerated Power: 0.3kW
  • Peak Bleeder Power: 5kW
  • Power Supply Unit: Integrated
  • Power Supply Connection: 1-phase or 3-phase 230V AC
  • Operating Frequency: 50/60 Hz
  • PWM Frequency: 18 kHz
  • Motor Feedback: DSF encoder and resolver
  • Required DC Voltage: 300V
  • Power Loss: 230 W (3-phase connection), 195 W (1-phase connection)
  • Noise Level: Reduced at 30A
  • Expandability: Plug-in cards and software module (DSM 2.1)
  • Net Weight: 11 kg
  • Cooling Method: Warm-type
  • Protection Level: IP10
  • Operating Temperature: Up to +55 degree Celsius
