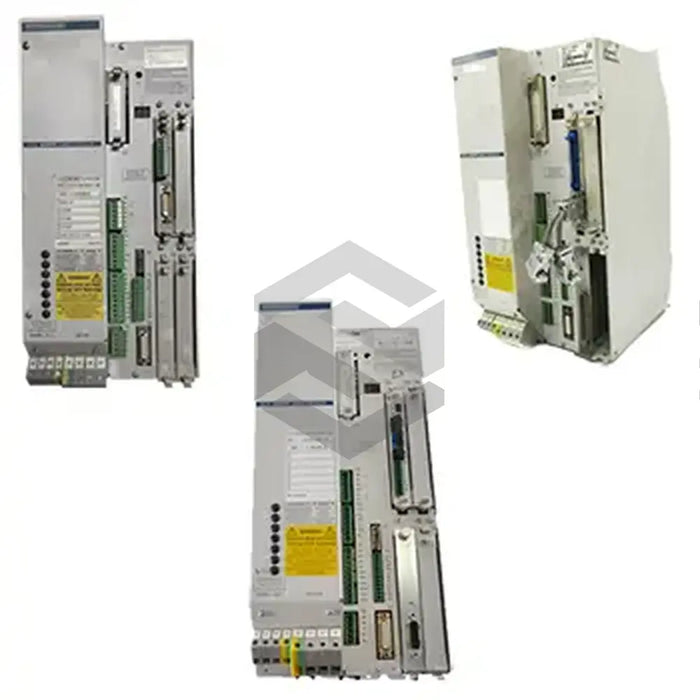

S image of DKS01.1-W030B-RL21-01-FW

DKS01.1-W030B-RL21-01-FW

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The DKS01.1-W030B-RL21-01-FW is a digital servo drive produced by Bosch Rexroth Indramat. Having a weight of approximately 11kg and having a unique basic configuration, this device exhibits a protection class of IP 10 as per DIN 40 050 and insulation class C in accordance with DIN 570 110. The servo drive has a rated current and peak current of 30A, and a continuous current at 15 [10] A. It uses an encoder type of DSF or Revolver and employs MDD motor type. It offers electrical connection as single-phase or 3-phase, and maintains a PWM frequency of 18Hz. The power requirement varies based on motor servo drive combinations. The servo drive can function between +5⁰C and +45⁰C ambient temperatures, withstands maximum transport temperature of +85⁰C, and can perform without derating up to 1000m above sea level. This model is part of the initial DKS01 series of synchronous servo drives.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product type

Digital Servo Drive

Model

DKS01.1-W030B-RL21-01-FW

Weight

11kg

Solid object penetration limitation

Diameter over 50mm

Protection class

IP 10 per DIN 40 050

Insulation class

C per DIN 570 110

Rated Current

30A

Continuous current

15 [10] A

Peak current

30A

Encoder type

DSF or Revolver

Motor type

MDD

Electrical connection

Single-phase or 3-phase

PWM frequency

18Hz

Frequency range

50Hz to 60Hz

Input voltage

1 x 230 (±10%)V or 3 x 230 (±10%)V

Power requirement at highest load

4,5 KVA or 3,5 KVA

Internal bus DC voltage

300V

Bleeder continuous regenerated power

0.3kW

Bleeder peak power

0.5kW

Ambient temperature range

+5⁰C and +45⁰C

Storage temperature

+30⁰C

Transportation temperature

up to +85⁰C

Maximum elevation without derating

1000m above sea level

Maximum humidity classification

F per DIN 40 040

Series

First versions of the DKS01 synchronous servo drives
