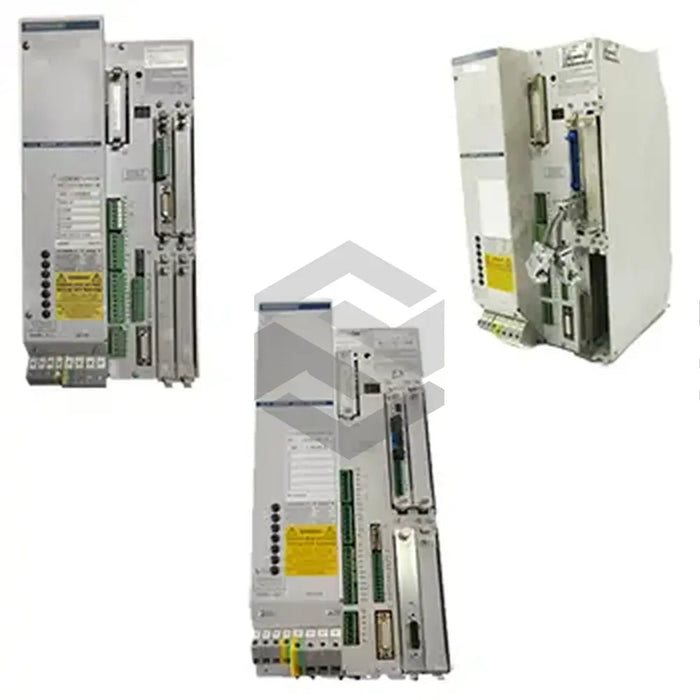

S image of DKS01.1-W050A-DL01-00-FW

DKS01.1-W050A-DL01-00-FW

by Bosch Rexroth Indramat
$18,375.00 - $18,375.00
$18,375.00
$18,375.00 - $18,375.00
$18,375.00

In Stock, Ships 1 - 3 Days

The DKS01.1-W050A-DL01-00-FW is a Bosch Rexroth drive controller, designed for compatibility with MDD motors and featuring an integrated power supply. Equipped with a DSF encoder, the unit provides accurate closed loop control. The controller operates at an input voltage of 230 Volts AC (three-phase), and supports a 50 to 60 Hertz line frequency range. It delivers a continuous output current of 25 Amps, a peak and rated output of 50 Amps, and uses a 4 kilohertz PWM frequency. The unit necessitates a 9.5 kVA input power during a full load scenario, and its internal bus voltage regulation is 300 Volts DC. Furthermore, the controller operates effectively between 5 and 45 degrees Celsius and at altitudes up to 1000 meters. Its housing is suitable for vertical mounting with an IP10 protection grade. The approximate weight is 11 kilograms. The unit integrates a dynamic brake, power safety system, and removable software module. It also provides three auxiliary plugin card slots. Only duly trained technical personnel should administer its installation, operation, and maintenance.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

Drive Controller with Integrated Power Supply

Compatibility

MDD Motors

Encoder

DSF

Input Voltage

230 Volts AC (three-phase)

Frequency Range

50-60 Hertz

Continuous Output Current

25 Amps

Peak and Rated Output

50 Amps

PWM Frequency

4 kilohertz

Full Load Input Power

9.5 kVA

Internal DC Bus Voltage

300 Volts DC

Power Loss at Full Load

300 Watts

Operating Temperature

5 to 45 degrees Celsius

Operating Altitude

0 to 1000 meters

Humidity

Class F, Mean relative humidity not exceeding 70% in most humid month, No condensation

Insulation Class

C

Mounting

Vertical

Protection Class

IP10

Weight

Approximately 11 kilograms

Protection System

Integrated, Shuts off power supply

Brake System

Integral Dynamic brake system

Software

Firmware and Configuration stored on Software Module

Additional Slots

Three slots for auxiliary plug in cards

User Recommendation

Only trained and experienced technical personnel.
