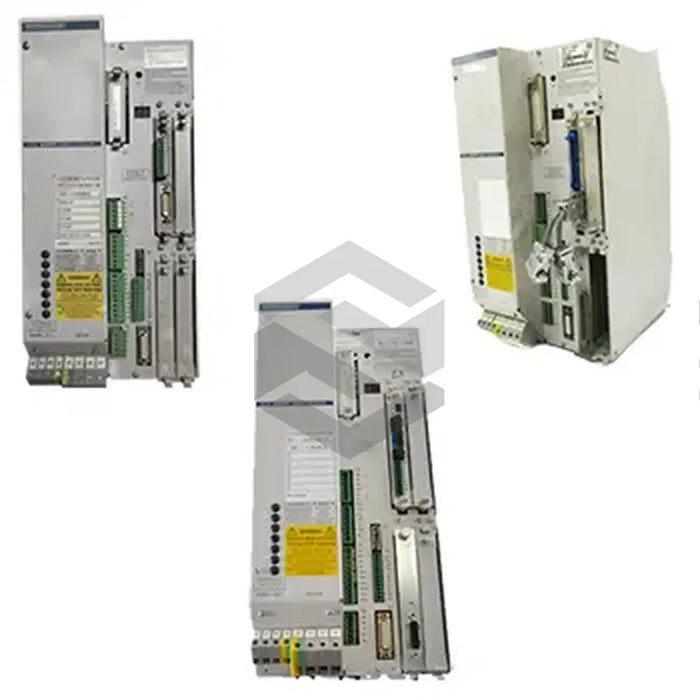

series image of DKS1.1-W030B-RA01-0

DKS1.1-W030B-RA01-0

by Bosch Rexroth Indramat
Request a quote
Bosch Rexroth Indramat's DKS1.1-W030B-RA01-0 is a drive unit integral to building fully automated motion control systems. When combined with MDD digital AC servo motors, it forms a complete drive module. The unit is designed for installation in either a control cabinet or a protected housing, with an IP10 degree of protection to safeguard against objects more than 50mm in diameter. Effective operation requires shielding from water or moisture. The DKS1.1-W030B-RA01-0 features a resolver feedback system and operates at a rated and maximum current of 30 A, with 15 A required for continuous operation at 18 kHz PWM frequency. Both three-phase and single-phase power unit can be used, with 4-5 kW required at maximum drive loading. The accompanying internal DC bus voltages are 300 V. The servo drive has a class C insulation per DIN 570 and must be installed below 1000 meters sea level. The model also features several connection points for control inputs and motor feedback.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Drive Unit
  • Model: DKS1.1-W030B-RA01-0
  • Location of Installation: Control Cabinet or Protected Housing
  • Protection Level: IP10
  • System: Resolver Feedback System
  • Rated Current: 30 A
  • Maximum Current: 30 A
  • Continuous Current: 15 A
  • PWM Frequency: 18 kHz
  • Power Supply Requirements: Three-phase or Single-phase
  • Maximum Drive Loading: 4-5 kW
  • Bus Voltage: 300 V
  • Bleeder Continuous Power: 0.3 kW
  • Bleeder Peak Power: 5 kW
  • Power Loss: 230 W
  • Storage Temperature: -30 to +85 degree Celsius
  • Installation Height: 1000 meters above sea level
  • Insulation Class: Class C as per DIN 570
  • Control Inputs Connection Point: X9
  • Motor Feedback Connection Point: X4.
