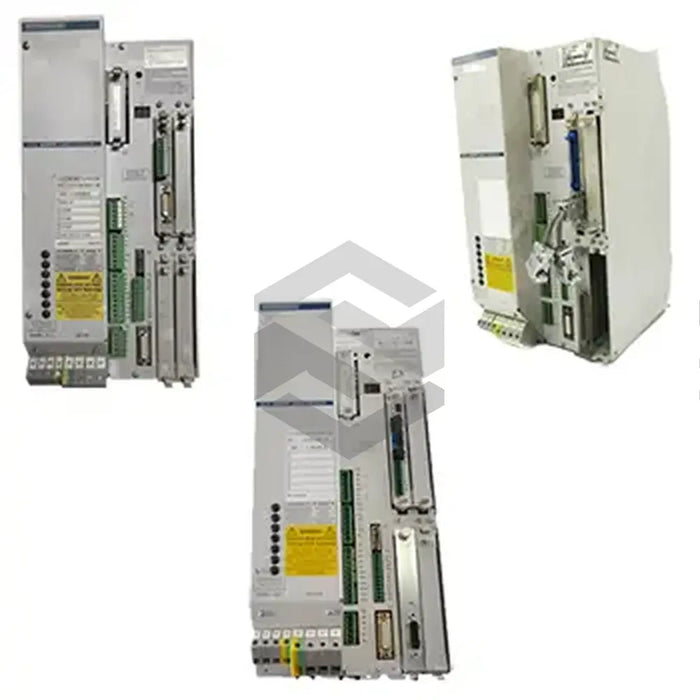

series image of DKS1.1-W100A-DA01-00

DKS1.1-W100A-DA01-00

by Bosch Rexroth Indramat
$4,491.00 - $4,491.00
$4,491.00
$4,491.00 - $4,491.00
$4,491.00
Available, Shipping Varies
The DKS1.1-W100A-DA01-00, created by Bosch Rexroth Indramat, is an intelligent servo drive unit designed to pair with MDD digital AC servo motors, making a comprehensive drive system. As part of the DKS series, it uses cards installed in slots U1 to U5 for a variety of functions. The unit is shipped fully assembled, including a basic servo drive unit, command interface card, auxiliary plug-in card, configuration label, and software module. Heat dissipation is guided to the cabinet, maintaining temperatures above +5 and below +55C. Optimal performance is achieved at a maximum height of 1000 meters above sea level with standard noise emissions not disrupting operation. Compatible with DSF encoder type and MDD digital motor, the unit operates on a single or three-phase power supply unit with voltages of 1x 230 or 3x 230V with 10% variance and mains frequency of 50 to 60 Hz. The power loss at maximum load is 480 W excluding the power loss at bleeder. It has a continuous power generation of 0.5 kW, but can peak at 18 kW.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Line: DKS1.1 intelligent servo drive units
  • Model: DKS1.1-W100A-DA01-00
  • Designed For: MDD digital AC servo motors
  • Operational Slot: U1 to U5
  • Configuration: Basic servo drive unit, command interface card, auxiliary plug-in card, configuration label, and software module
  • Current Rating: 100 A
  • Cooling Type: Warm
  • Operating Temp: Above +5 and below +55 degree Celsius
  • Maximum Operational Height: 1000 meters above sea surface
  • Noise Emission: Standard
  • Designed for Encoder Type: DSF encoder
  • Designed for Motor Type: MDD digital motor
  • Continuous Current Consumption: 50 A
  • Peak Current Consumption: 100 A
  • Input Voltages: 1x 230 or 3x 230 V (+/-10% tolerance)
  • Required Mains Frequency: 50 to 60 Hz
  • DC Bus Voltages: 300 V
  • Power Loss at Maximum Device Loading: 480 W
  • Continuously Generated Power: 0.5 kW
  • Peak Power: 18 kW.
