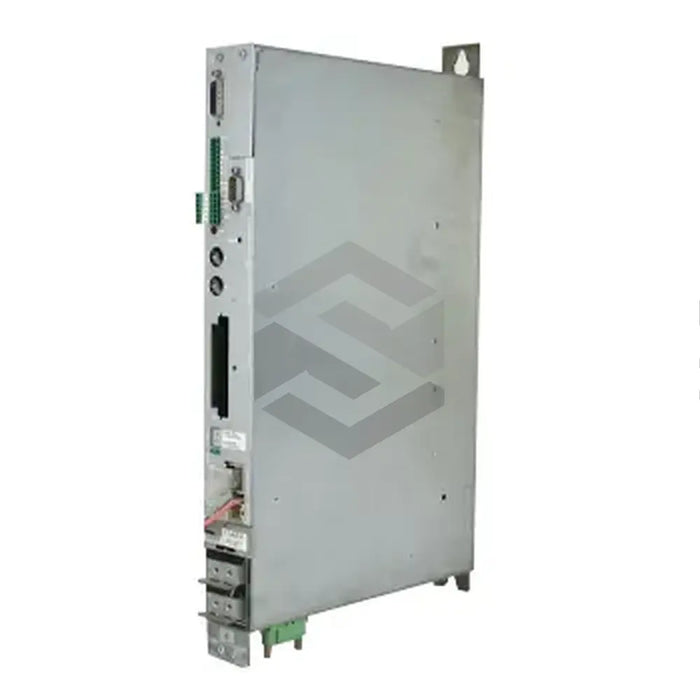

DM 15K 1101-D

Original price $5,859.45 - Original price $5,859.45
Original price
$5,859.45
$5,859.45 - $5,859.45
Current price $5,859.45
In Stock, Ships Today
Request a quote
The Bosch Rexroth Indramat DM 15K 1101-D is a robust Servodyn-D inverter system that includes both axis and supply modules. Appropriate for use with synchronous and asynchronous motor types, it is ideal for applications demanding high accuracy in speed setting range, position, and dynamics. The system offers automatic commissioning, three-phase position control, and direct power supply connection with a modular design. It accommodates memory cards and personality modules for the SERCOS interface and provides air cooling with a standard encoder interface. Key design features include output stages for a maximum current of 35 A, DC link connection via busbars, with a 50mm modular width dimension. The SERCOS interface enables sophisticated digital control for current, speed, and position, and is compatible with any manufacturer's controls and drives. Its sturdy construction requires an IP 54 protection degree cabinet placement, and it is appropriate for ambient conditions within a -25 to 70 degrees storage temperature range.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Servodyn-D inverter system
  • Model Number: DM 15K 1101-D
  • Cooling System: Air
  • Interface: SERCOS
  • Encoder Interface Type: Standard
  • Product Design: Modular
  • Motor Type Compatibility: Synchronous and Asynchronous
  • Feature: Memory card and personality module for SERCOS interface
  • Feature: Compact mechanics without backplane module
  • Output Stage: maximum current of up to 35 A
  • Size: 50mm modular width
  • DC link Connection: Through Busbars
  • Use: Control synchronous linear motors, SF and SR servo motors, and DU asynchronous motors
  • Install Note: Installed in a cabinet that conforms to protection degree IP 54
  • Storage Temperature Range: -25 to 70 degrees Celsius
  • Maximum Installation Height: 1000m
  • Operating Temperature: 0 to 45 degrees Celsius
  • Protection Degree: IP 20
  • Weight: 6kg
  • DC Link Voltage: 670 VDC regulated
  • Maximum Power Loss: 121W
