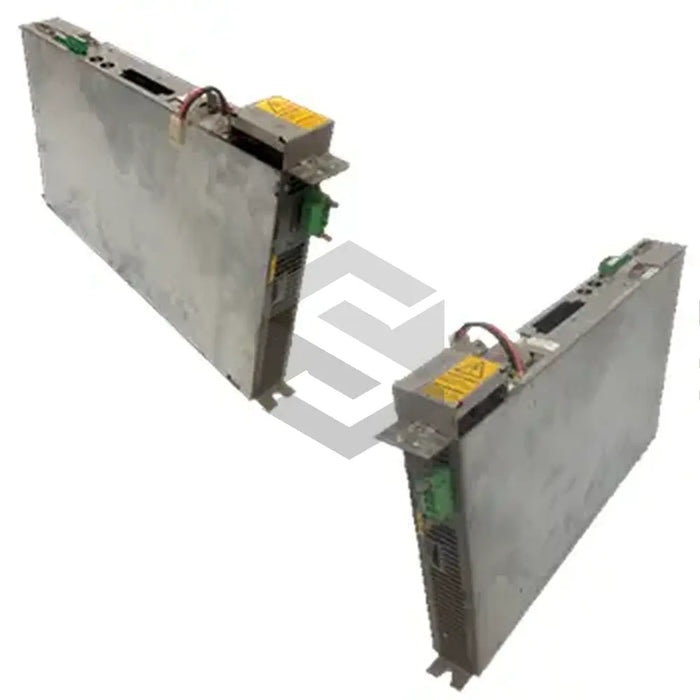

S image of DM 15K 3301-D

DM 15K 3301-D

by Bosch Rexroth Indramat
$2,498.06 - $2,498.06
$2,498.06
$2,498.06 - $2,498.06
$2,498.06

In Stock, Ships 1 - 3 Days

The DM 15K 3301-D by Bosch Rexroth Indramat is a sophisticated three-phase current module designed to support spindle motors and inverters. Suitable for asynchronous and synchronous motors, it optimizes performance through DC linking and control cable connections. Motor module sizing should consider rated current, peak current, and operating frequency. The module accommodates ambient temperatures of 0°C to 45°C, with automatic current limiting for thermal protection. It features a maximum current rating of 15-18arms and operates with a DC link voltage of 670VDC regulated and 715 VDC unregulated. Switching occurs at 8 kHz, with a resolution frequency of up to 800Hz at 400V. Its 20-bit single encoder can upgrade to a 32-bit multi-turn encoder with a 12-bit resolver. The module, weighing 6.0kg and measuring 50mm in width, requires installation below 1000 meters altitude, a working power demand of 0.89A, and adheres to IP 54 protection standards against contaminants.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product

DM 15K 3301-D Three-Phase Current Module

Application

Spindle Motors and Inverters

DC Link Voltage

Regulated: 670VDC; Non-regulated: 715VDC

Rated Current

4.9-11arms

Maximum Current

15-18arms

Operating Frequency

0-800Hz

Switching Frequency

8 kHz

Resolution

Single Encoder: 20 bits, Multi-tune Encoder: 32 bits, Resolver: 12 bits

Maximum Power Loss

121W

Working Power Demand

0.89A

Protection Category

IP 54

Weight

6.0kg

Width

50mm

Operating Temperature

0°C to +45°C

Derating Temperature

+46°C to +55°C

Maximum Overload Temperature

0°C to 45°C

Installation Elevation Limit

1000 meters above sea level

Environmental Requirement

Dust and acid-free air
