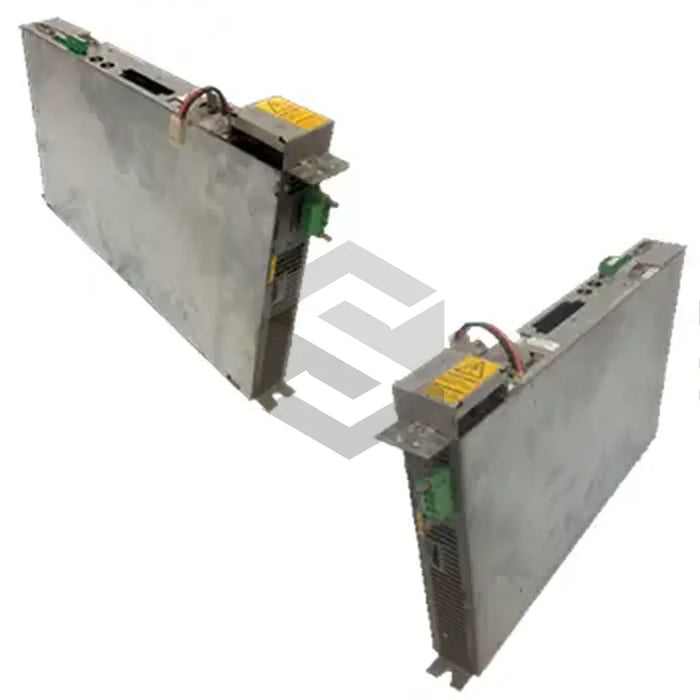

S image of DM 15K 7301-D

DM 15K 7301-D

by Bosch Rexroth Indramat
$2,016.50 - $2,265.64
$2,016.50
$2,016.50 - $2,265.64
$2,016.50

In Stock, Ships Fast

The DM 15K 7301-D drive inverter, developed by Bosch Rexroth Indramat, boasts a modular structure, various functionalities and interfaces, and a versatile axis and supply module range. Equipped with digital closed-loop control, it operates numerous motors, including standard and asynchronous, both with and without encoders. Its compatibility with synchronous motors translates to superior speed setting ranges, dynamic operating conditions, and synchronizing capabilities. It possesses varying actual position value resolutions and a derating temperature of 45 to 55°C. With a rated output varying from 3ph 400V, 0 Hz to 800 Hz, 8 Hz,5.8A, it operates on a power input of 670V, 6Adc. The DC link voltage is set at 670 VDC (regulated) and 715 VDC (non-regulated). It maintains a maximum power loss of 121W and a 0.89A power demand from the 24V power supply module. This 50 mm-wide machine weighs 6.0 kg.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product

DM 15K 7301-D

Type

Drive Inverter

Control capacities

Current, speed and position

Compatibility

Standard asynchronous motors, asynchronous motors type DU, built-in motors, synchronous motors type SF

Resolution

Single-turn encoder (20 bits), Resolver (12 bits), Multi-turn encoder (32 bits)

Maximum current (max OL)

15A

Maximum current (max CL)

11 A

Rated Current (max OL)

2.9 A

Rated Current (max CL)

7.4 A

Derating temperature

45 to 55°C

Derating temperature impact

0.23 A/K

Input

670 V, 6 A dc

Output

3ph 400V, 0Hz to 800Hz, 8 Hz, 5.8 A

DC link voltage (regulated)

670 VDC

DC link voltage (non-regulated)

715 VDC

Power loss

Maximum 121 W

Power demand from 24 V power supply module

0.89 A

Module width

50 mm

Mass

6.0 kg
