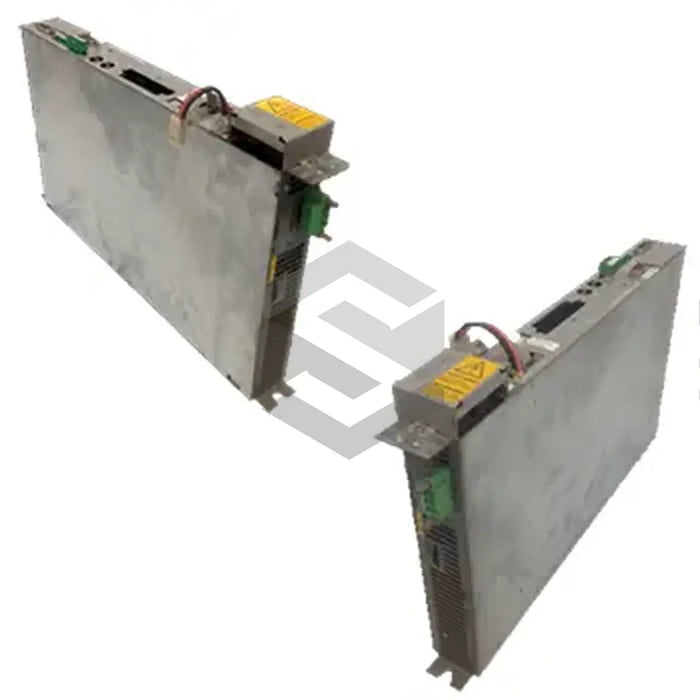

series image of DM 30K 5111-D

DM 30K 5111-D

by Bosch Rexroth Indramat
$5,342.00 - $5,342.00
$5,342.00
$5,342.00 - $5,342.00
$5,342.00
Available, Shipping Varies
The DM 30K 5111-D, developed by Bosch Rexroth Indramat, is a standard three-phase module for Servodyn-D systems. Weighing 6 kilograms with a width of 50 millimeters, it has a maximum power loss of 156 watts, and an input rating of 24 volts DC. It also has a rated current draw from the power supply of 1.03 amps. Notable features include a standard encoder, one-axis positioning, and an interface for 24-volt control signals. The module, which operates synchronous and asynchronous motors, is cooled through natural convection. It's recommended that the module be operated in temperatures ranging from 32 to 113 degrees Fahrenheit, and that it be provided with 100 millimeters of free space above and below for efficient cooling. Higher ambient temperatures or installations over 1000 meters above sea level could result in reduced current output.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Model: DM 30K 5111-D
  • Type: Standard variant three-phase module for Servodyn-D systems
  • Width: 50 millimeters
  • Weight: 6 kilograms
  • Maximum Power Loss: 156 Watts
  • Input Rating: 24 Volts DC
  • Rated Current Draw: 1.03 Amps
  • Maximum Current (8 kHz switching frequency): 22 Amps
  • Rated Module Current (8 kHz switching frequency): 3.6 Amps
  • Maximum Current (4 kHz switching frequency): 29 Amps
  • Rated Module Current (4 kHz switching frequency): 5.9 Amps
  • Rated DC link voltage: 715 Volts DC non-regulated, 670 Volts DC regulated
  • Features: Standard encoder, one-axis positioning, interface for 24 Volt control signals
  • Cooling System: Natural convection
  • Recommended Free Space for cooling: 100 millimeters above and below the module
  • Recommended Ambient Temperature: 32-113 degrees Fahrenheit
  • Current Reduction (Temperature exceeds 113 degrees Fahrenheit): 0.35 Amps / 0.24 Amps at 4 / 8 kilohertz switching frequency for every single degree Kelvin increase
  • Maximum Operating Elevation (with derating): 3000 meters above sea level
