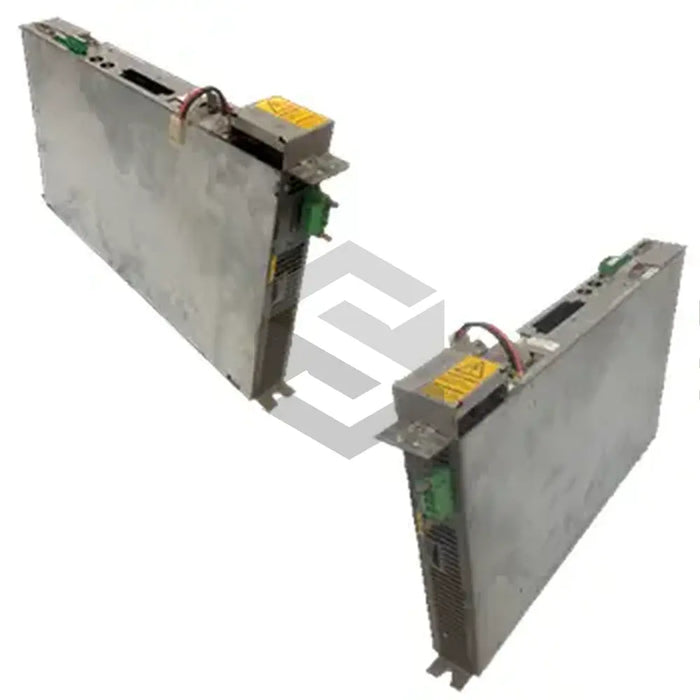

S image of DM 45K 3301-D

DM 45K 3301-D

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The DM 45K 3301-D is a compact industrial automation equipment made by Bosch Rexroth Indramat, renowned for manufacturing high-performance digital servo drives and frequency converters. Weighing around 6.7 kg, this model operates at a DC link voltage of 670 VDC for regulated, and 715 VDC for non-regulated power supplies. Equipped with a three-phase inverter module that operates synchronous and asynchronous motors with high precision, this model has a rated current of 23.5 Arms, and offers a maximum of 35.5 Arms. It features a 12-bit resolution analog interface facilitated by a VeCon chip and a resolver interface. Specifically designed for the Servodyn-D series, this module operates ideally between 0 to +45 degree Celsius; it holds an IP20 protection class and is made for switch cabinets falling under the IP54 protection standard. This device is air-cooled to dissipate heat.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Model

DM 45K 3301-D

Net Weight

6.7 kg

DC Link Voltage

670 VDC (regulated), 715 VDC (non-regulated)

Switching Frequency

4 kHz, 8kHz

Rated Current

23.5 Arms (4kHz), 16.5 Arms (8kHz)

Maximum Current

35.5 Arms (4kHz), 25.5 Arms (8kHz)

Power Requirement(24V Power Supply)

1.4 A

Maximum Power Loss

205 W

Cooling System

Air-cooling

Motor Type

Synchronous and Asynchronous

Module Width

75 mm

Analog Interface

12-bit resolution

Cycle Time for Speed and Current Controller

62.5 micro-seconds

Interface Type

Resolver

Design

Standard, Servodyn-D series

Operational Temperature

0 to +45 degree Celsius

Maximum Operating Height

1000 meters above sea level

Protection Class

IP20

Installation Requirements

Switch cabinet with IP54 protection standard
