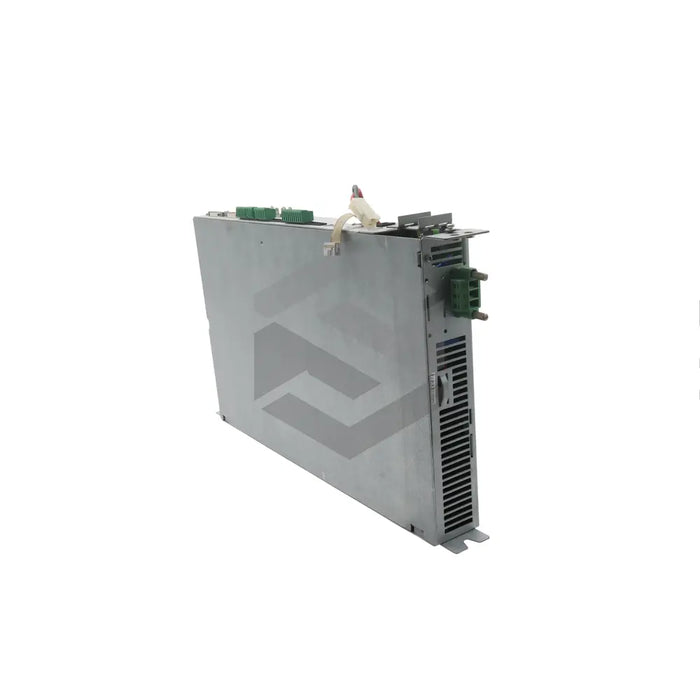

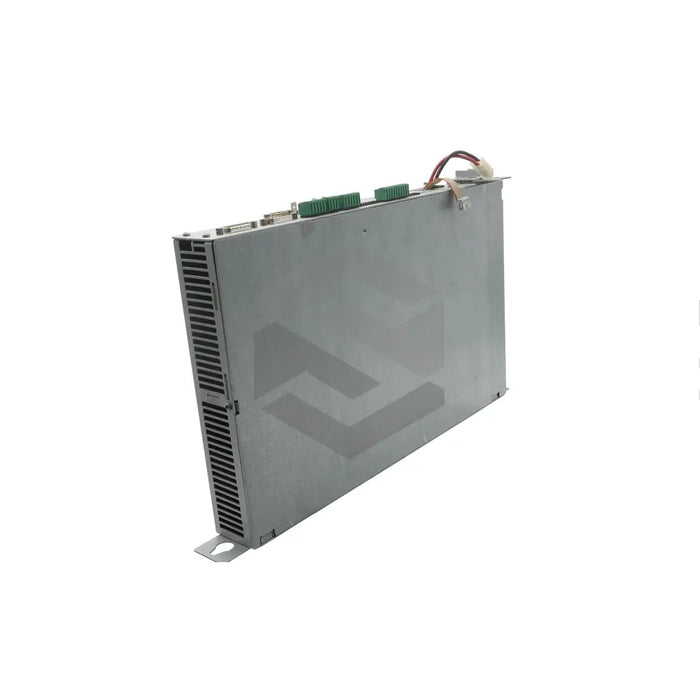

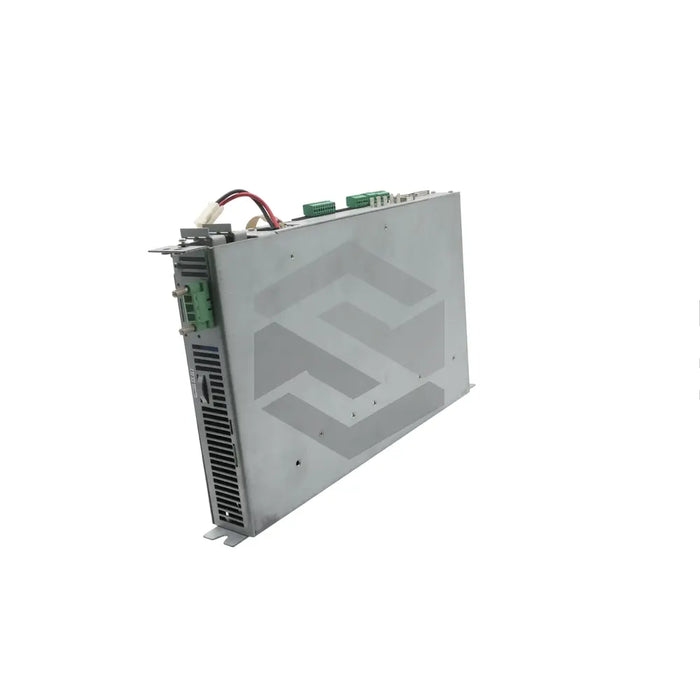

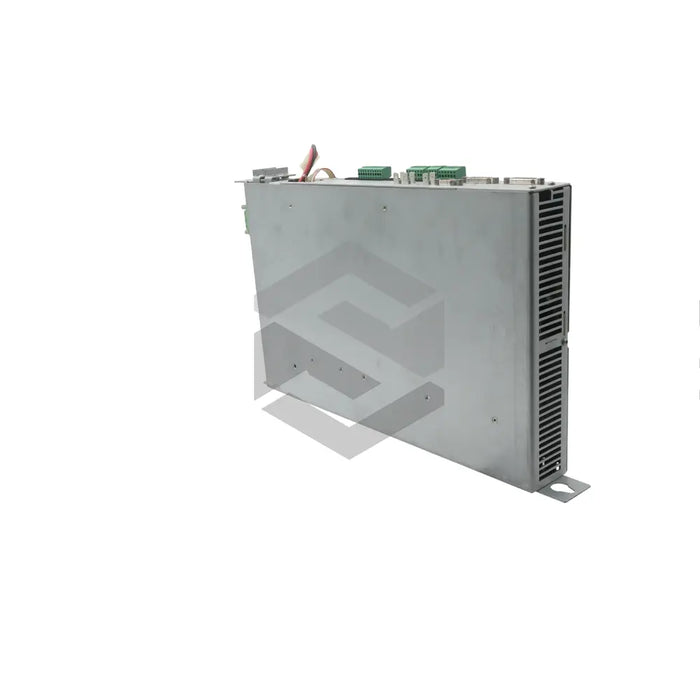

DM 4K 3301-D

Original price $1,368.00 - Original price $1,368.00
Original price
$1,368.00 - $1,368.00
Current price $1,368.00
Available, Shipping Varies
Request a quote
The DM 4K 3301-D, by Bosch Rexroth Indramat, forms part of the versatile Servodyn-D inverter system. Its compact design, requiring just a 300mm control cabinet depth, functions as a speed, position and current controller. Designed for maximum productivity, it operates with Bosch's various motor types including SF, asynchronous and synchronous. This unit operates on a regulated DC link voltage of 670 VDC and a non-regulated voltage of 715 VDC. It offers a peak current of 6.4 A, and 6.6 A under overload at a frequency of 4 kHz. Its rated current is 0.8 A under maximum overload and 2.5 A for continuous load. Current derating is minimal and position value resolution varies based on the encoder. This adaptable module is ideal for an array of industrial servo-applications.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Line: Servodyn-D inverter system
  • Module Type: DM 4K 3301-D
  • Control Cabinet Depth: 300mm
  • DC link voltage (Regulated): 670 VDC
  • DC link voltage (Non-regulated): 715 VDC
  • Max Current (Max Continuous Load at 4kHz): 6.4A
  • Max Current (Max Overload at 4kHz): 6.6A
  • Rated Current (Max Overload at 4kHz): 0.8A
  • Rated Current (Max Continuous Load at 4kHz): 2.5A
  • Current Derating: 0.1 Ampere/Kelvin
  • Operating Temperature Range : 45-55 ᵒC
  • Position Value Resolution (Singleturn Encoder): 20-bits
  • Position Value Resolution (Resolver): 12-bits
  • Position Measurement System (Incremental Encoder Frequency Limit): 1 MHz
