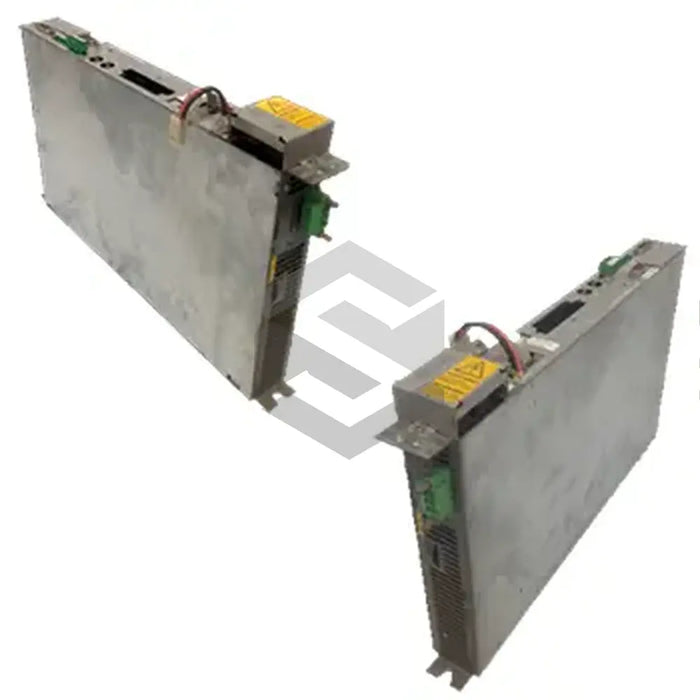

S image of DM 4K 4101-D

DM 4K 4101-D

by Bosch Rexroth Indramat
$8,289.96 - $8,289.96
$8,289.96
$8,289.96 - $8,289.96
$8,289.96

In Stock, Ships Fast

The DM 4K 4101-D, created by industry leader Bosch Rexroth Indramat, is a renowned model with a feedback control system through a standard encoder interface. It manages speed and position on various synchronous and asynchronous motors precisely. Its Servodyn-D inverter system is composed of a power supply and three-phase inverter module which connects directly to a 3-phase source, generating a 670V DC link voltage or 715V, depending on the power supply's regulation. This three-phase inverter module takes just 0.89 A power from the 24 V supply module. The module operates on a 16-bit analog interface with a VeCon chip, controlling position, speed, and current digitally. It has resistance to shocks and vibrations, and is climate-protected. With an IP54 protection standard, it should be installed in protected switch cabinets. Weighing 6 kg and 50mm wide, it operates at 4 kHz and 8 kHz frequencies, with the rated current of 0.8 Arms also subject to changes due to temperature variations.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Model

DM 4K 4101-D

Interface System

Standard Encoder

Type

Servodyn-D Inverter System

Power Supply Module Input

3-phase power source

Stabilized DC Link Voltage

670V

Non-Regulated DC Link Voltage

715V

Three Phase Inverter Module Power Requirement

0.89 A

Operational Interface

16-bit analog

Speed and Current Control Cycle Time

62.5 micro-seconds

Shock Resistance

15g DIN IEC 68-2-27

Vibration Resistance Frequency

2 to 150 Hz

Climate Protection Category

3K3 EN 60 721

Installation Requirement

In Cabinets with IP54 Protection Standard

Weight

6 kg

Width

50 mm

Operating Frequency

4 kHz and 8 kHz

Rated Current

0.8 Arms and 1.4 Arms

Power Reduction Rate

0.15 A/K and 0.1 A/K for temperature increasing from +45 to +55 degree Celsius.
