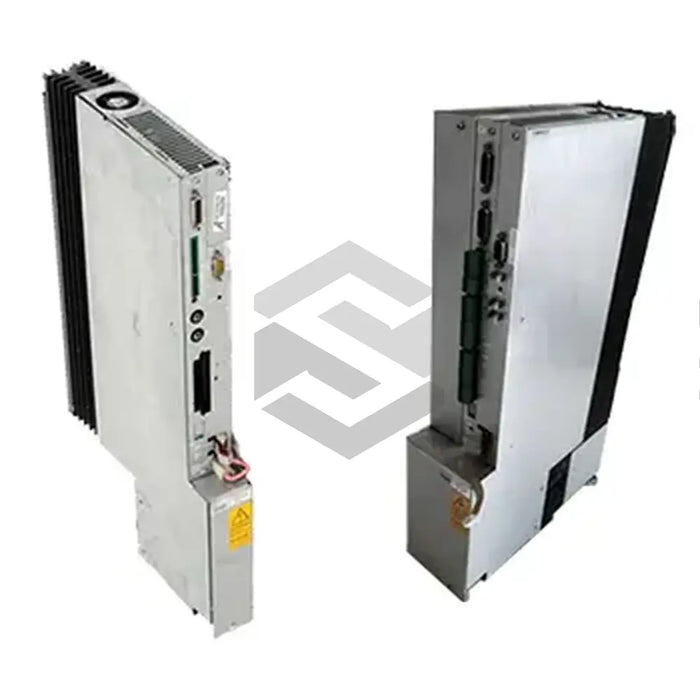

S image of DMA 45A 1101-D

DMA 45A 1101-D

by Bosch Rexroth Indramat
$4,630.43 - $4,630.43
$4,630.43
$4,630.43 - $4,630.43
$4,630.43

Available, Shipping Varies

The DMA 45A 1101-D is a Servodyn-D inverter module developed by Bosch Rexroth Indramat. It operates optimally between 46°C and 55°C when combined with a protective circuit at the terminal strip to minimize capacitive interferences. The module features a standard encoder interface, a SERCOS interface with fiber optics, and a maximum machining force of 3450N at an 11A current rating. The device also includes an RMA/DM45 backplane module and two fans, with firmware stored on a memory card. The inverter, weighing 7.3kg and with a width of 50mm, can be installed in an environment within 1000m altitude for best performance. It can handle a maximum current rating of 44A at 8kHz frequency, offers a displacement of 1mm at 2kHz to 13.2kHz, and facilitates direct power supply connection. The device should be housed in a dust-filtered switch cabinet with at least a 1mm clearance space from adjacent modules.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

Inverter Module

Series

Servodyn-D

Operating Temperature

46°C to 55°C

Interface Type

Standard Encoder and SERCOS

Max Machining Force

3450N

Typical Current Rating

11A

Power Loss

220W

Backplane module

RMA/DM45

Weight

7.3kg

Width

50mm

Rows Operation

Two with a common DC link

Firmware

Loaded in Memory Card

Shock resistance

15g (DIN IEC 68-2-27)

Operation Altitude

Up to 1000m with rated data

Maximum Current Rating

44A at 8kHz frequency

Displacement

1mm at a frequency range of 2kHz to 13.2kHz

Clearance

Minimum 1mm during assembly

Installation

Direct Power Supply connection, Control Cabinet with a depth of 300mm.
