DMA 45A 7301-D

Request a quote

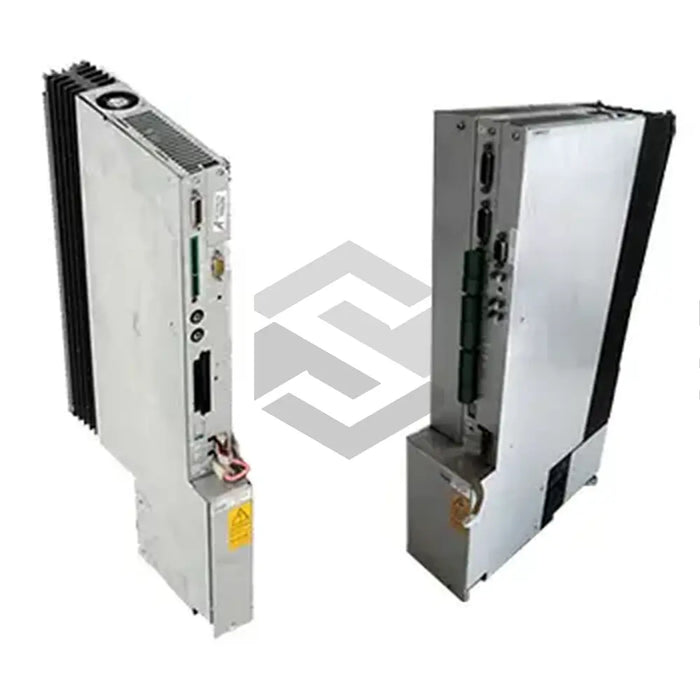

The DMA 45A 7301-D, manufactured by Bosch Rexroth Indramat, is a high-performance three-phase inverter module for industrial automation applications. Equipped with a 12-bit resolver encoder interface, it utilizes a digital closed loop controlled by a VeCon chip and the CANrho protocol. This module is compatible with a variety of motors including synchronous types SF, SR, and linear, as well as asynchronous types DU and standard. Suitable for use in textile machines, machine tools and printing machines, it operates at 670/715 VDC dc-link voltage, powered by a three-phase AC supply. The model's design includes two built-in fans for temperature control and has IP20 protection class. Configuration is achieved through the RS232 interface using the DSS-D commissioning service system. It operates at a continuous current of 23/15 A under consistent loading conditions, with a net weight of approximately 7.3 kg.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Model: DMA 45A 7301-D
  • Encoder Interface: 12-bit resolver
  • Control System: Digital closed-loop by VeCon chip
  • Protocol Type: CANrho
  • Compatible Motor Types: SF, SR, Linear, DU, Standard and built-in motors
  • Applications: Textile machines, General automation systems, Machine tools, Printing machines
  • Design: Modular
  • Width: 50mm
  • Height: 521mm
  • Operating Voltage: 670/715 VDC
  • AC Power Supply: 3 × 400 – 460 V
  • Cooling Method: Ambient air with 2 built-in fans
  • Configuration Interface: RS232
  • Product Variant: Standard
  • Series: Servodyn-D
  • Switching Frequency: 4/8 kHz
  • Continuous Current: 23/15 A
  • Weight: 7.3 kg
  • Mounting: Next to power supply module
  • Protection Class: IP20
