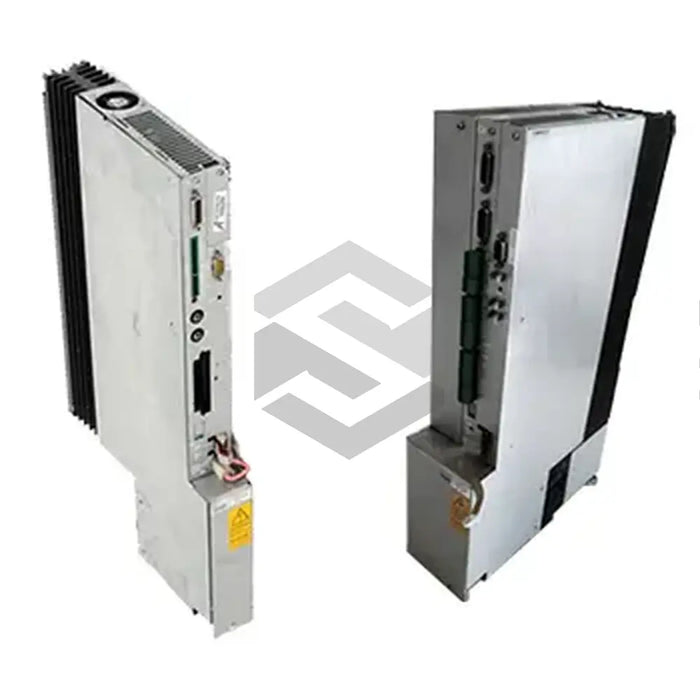

DMA 45A 9101-D
The DMA 45A 9101-D, manufactured by Bosch Rexroth Indramat, is a standard variant modular drive inverter designed for use with medium or high voltage systems. Structurally comprised of axis and supply modules, it provides digital closed-loop control for speed, position, and current. When utilized alongside asynchronous and synchronous motors, it ensures high speed-setting range, positioning accuracy, dynamics, and synchronizing capabilities. Equipped with a 45 Ampere maximum current at a frequency range of 2 – 150 Hz, it features air cooling with backplane mechanics and a 50mm module width. It includes a CANopen and CANrho interface with no additional functions or encoder interfaces. The DMA 45A 9101-D operates within a 0 – 45 degrees Celsius temperature range. Storage temperatures should remain between -25 and 70 degrees Celsius. It belongs to the 3K3 climatic category and has an IP 20 ingress protection rating. To prevent potential radio interferences in residential areas, appropriate countermeasures are required. Proper transportation, storage, installation and operation are crucial for optimal performance and safety.
