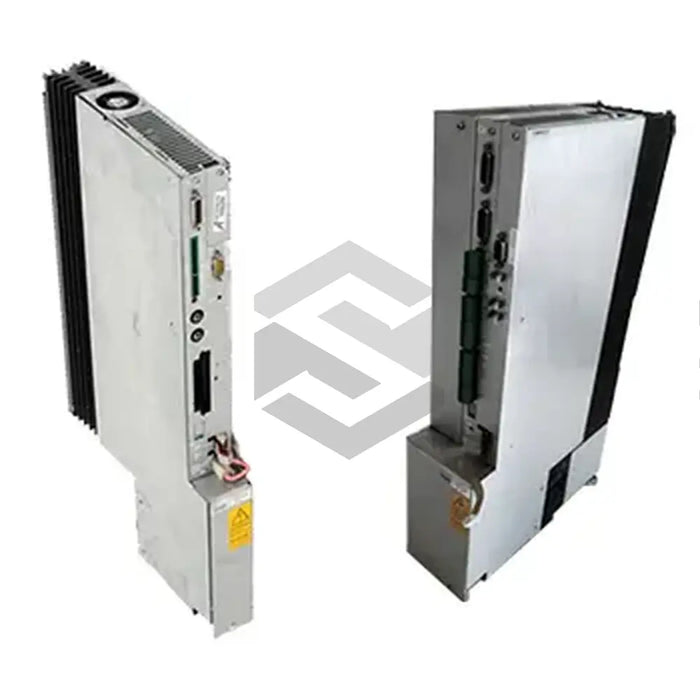

S image of DMA 85B 1101-D

DMA 85B 1101-D

by Bosch Rexroth Indramat
$6,993.14 - $6,993.14
$6,993.14
$6,993.14 - $6,993.14
$6,993.14

In Stock, Ships Fast

The DMA 85B 1101-D is a servo drive module produced by Bosch Rexroth Indramat, part of the Servodyn D series line-up. Compatible with both asynchronous and synchronous motors, the device features a three-phase design, position control, and backplane air cooling. This compact unit, requiring only a 300mm-deep control cabinet for installation, must be disconnected from the mains for at least 5 minutes prior to removing its cover. ESD protection measures must also be taken before handling. The module benefits from a 50mm width, a SERCOS interface for easy commissioning and installation, and a 32-bit signal processor providing digital current, speed and position control. Other noteworthy features include a 2-channel redundant safety monitoring function through its in-built "personality" module, a 1.35A power demand from the 24V power supply, a 12-bit resolution resolver, and a maximum current rating of 86ARMS. Great care must be taken during transition to avoid damaging the components, and safety warnings must be strictly adhered to.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Code

DMA 85B 1101-D

Product Type

Servo Drive Module

Usage

Compatible with asynchronous and synchronous motors

Design

Three-phase design with position control

Cooling Method

Air-cooling through backplane mechanics

Installation

Requires control cabinet with 300mm depth

Width

50mm

Interface

Equipped with SERCOS interface

Signal Processor

32-bit

Power Demand

1.35A from the 24V power supply module

Resolver Resolution

12 bits

Backplane Module

RMB/DM type with two fans

Current Rating

Maximum of 86ARMS at a frequency of 4kHz

DC Link Voltage

Regulated 675VDC

Temperature Range

Derating between 45°C and 55°C
