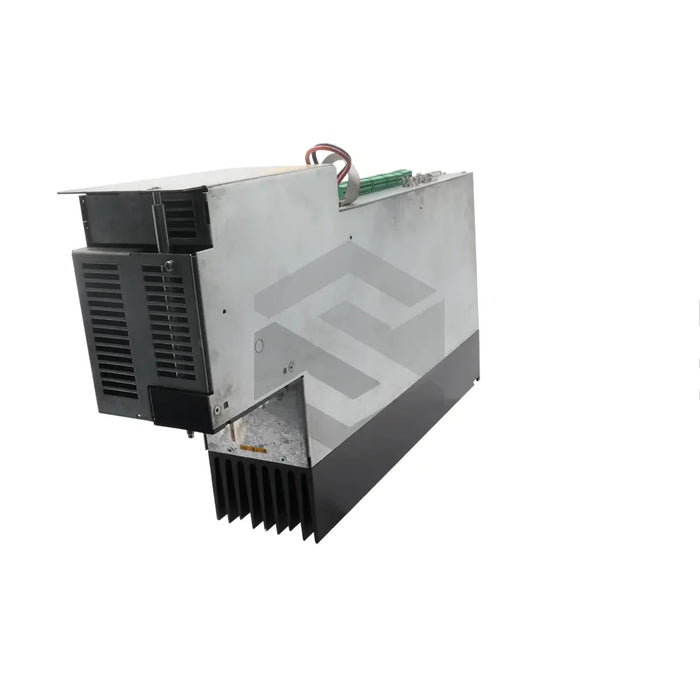

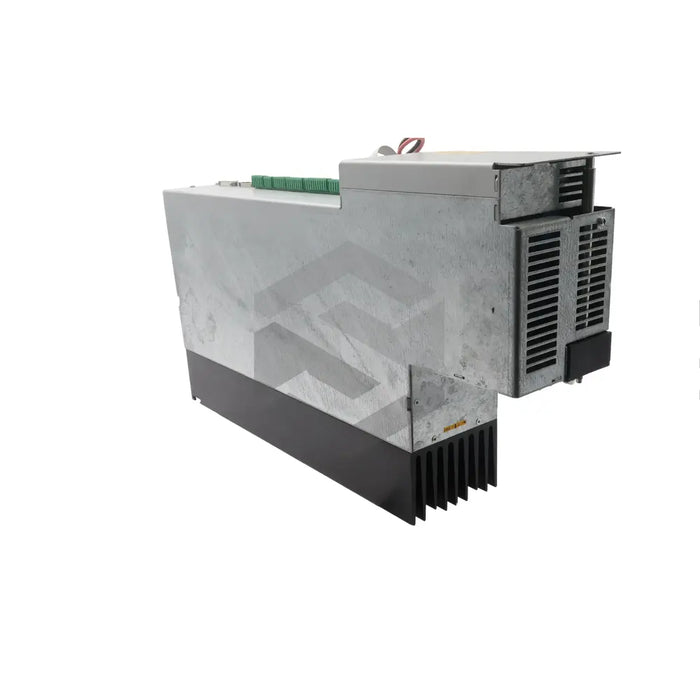

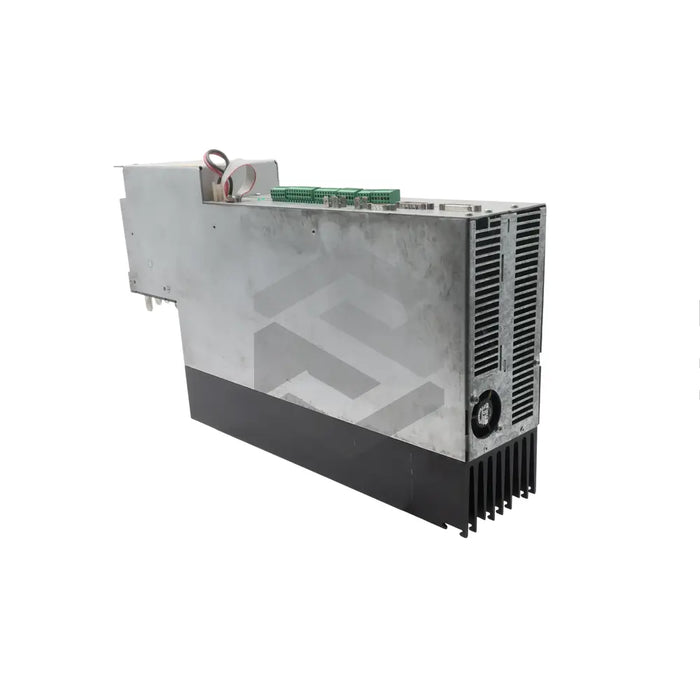

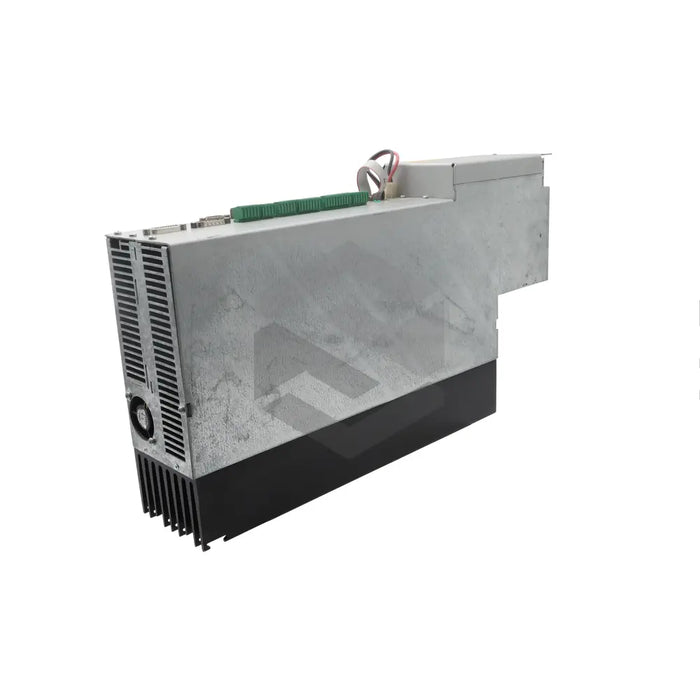

S image of DMA 85B 4101-D

DMA 85B 4101-D

by Bosch Rexroth Indramat
$9,147.10 - $13,024.90
$13,024.90
$9,147.10 - $13,024.90
$13,024.90

Available, Shipping Varies

The Bosch Rexroth Indramat DMA 85B 4101-D is a Class A three-phase servo drive module that features a non-regulated DC link voltage of 715VDC and an analog interface with 16 bits resolution. It has a modular design, is equipped with an IGBT output stage, and boasts automatic commissioning thanks to electronic rating plates. For cooling, it relies on air flow in the backplane mechanics to avoid overheating. The device can experience a maximum power loss of 380W in the switch cabinet and has a shock resistance of 15g. The servo drive module, compliant with EN 50178 and EN 60204-1 standards, is suitable for use with the SR, SF, and DU series motors. It should only be installed in switch cabinets with a protection rating of IP 54 and at an altitude below 1,000 meters above sea level.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Model

DMA 85B 4101-D

Drive Inverter Classification

Class A

DC Link Voltage

715VDC

Interface

Analog, 16-bit resolution

Design

Modular

Output Stage

IGBT

Compliance Standards

EN 50178, EN 60204-1

Cooling System

Air cooling in backplane mechanics

Processor Board

+/-10V speed analog interface

Additional Module

None

Power Loss

380W in switch cabinet

Shock Resistance

15g, DIN IEC 68-2-27

Installation Requirements

Switch cabinets with IP 54 protection rating and dust filters

Compatible Motors

SR and SF series servomotors, DU series asynchronous motors

Altitude limitation

1,000m above sea level
