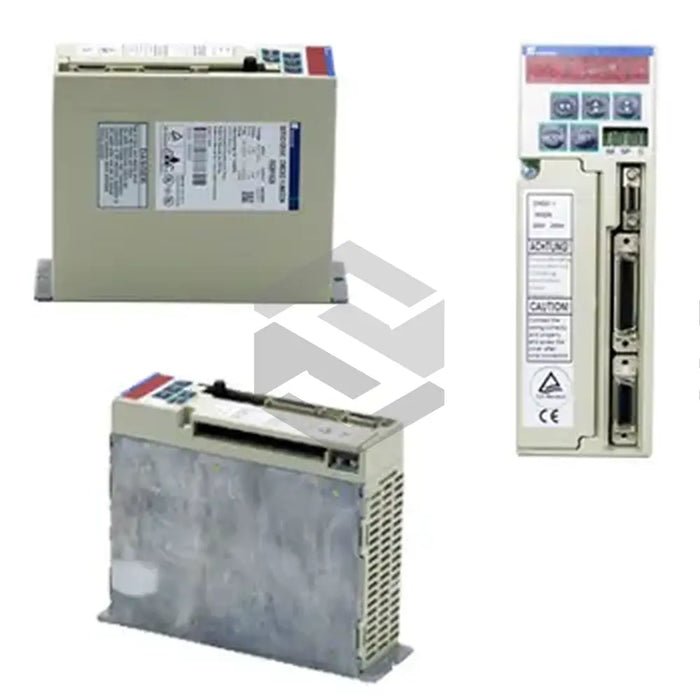

manufacturer image of DMD01.1-W022N

DMD01.1-W022N

by Bosch Rexroth Indramat
$4,263.75 - $4,263.75
$4,263.75
$4,263.75 - $4,263.75
$4,263.75
In Stock, Ships 1 - 2 Days
The DMD01.1-W022N AC Servo Drive is a Bosch Rexroth Indramat product intended for use with the MMD022A1 Indramat AC servomotor. As part of the DMD series, this drive features a line type of 1 and a design type of 1. Strict adherence to appropriate motor pairings and input power supply specifications is essential to prevent damaging incidents like overheating or fires. It operates within a temperature range of 0°C to +50°C, which significantly affects its lifespan. Precautions like cutting power supply and allowing a cooling period before any adjustments or inspections are necessary. The drive is equipped with natural cooling and has a nominal voltage of 3 x 230VAC, also compatible with 1 x 230VAC. It supports single and triple-phase connections, rated at 100W power. Correct wiring and grounding for both the motor and the drive are pivotal for successful operation. For emergencies, a breaker is needed to stop the external power supply. Worldwide shipping is available.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Model: DMD01.1-W022N
  • Product Type: AC Servo Drive
  • Compatible With: MMD022A1 Indramat AC servomotor
  • Product Group: DMD
  • Design Type: 1
  • Line Type: 1
  • Installation Material: Non-combustible materials like Metal
  • Input Power Supply: Must adhere to the product’s specifications
  • Risk: May experience firing or smoking if voltage applied is higher than rated voltage
  • Operating Temperature Range: 0°C to +50°C
  • Precautions: Checking and movement should be done after cutting power supply and waiting for five minutes
  • Cooling Mechanism: Natural
  • Voltage: 3 x 230VAC or 1 x 230VAC
  • Power Rating: 100W
  • Intermittent Operation: Power supply should be cut off if not used for a long time
  • Positioning: Incorrect operation if given wrong wire connection
  • Applicable Phase: Single and triple phase
  • Emergency Precaution: Use no-use breaker to cut off outside power supply
  • Delivery: Can be shipped worldwide
