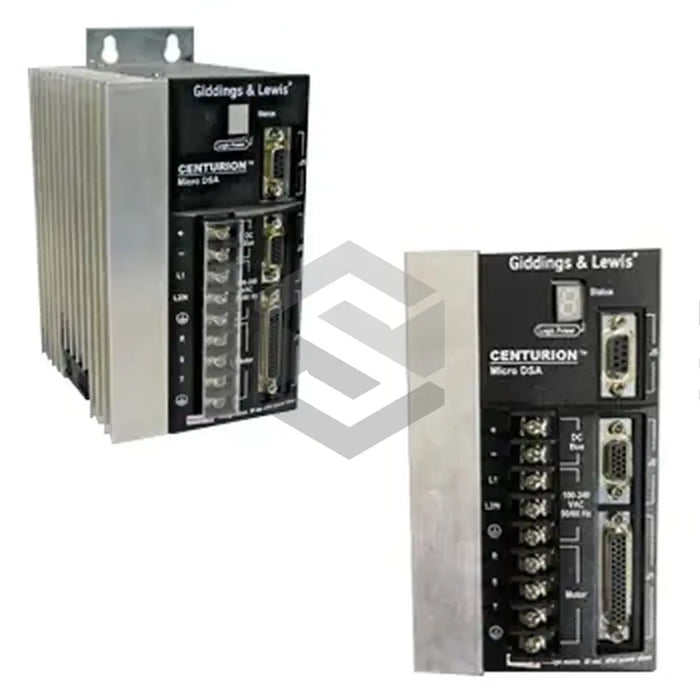

S image of DSM007P

DSM007P

by Kollmorgen
$659.97 - $2,500.00
$659.97
$659.97 - $2,500.00
$659.97

In Stock, Ships 1 - 3 Days

The Kollmorgen DSM007P is a positioning drive from the micro-DSM series with indexing capabilities, and is CE and UL approved. It can operate between 32 to 131 degrees Fahrenheit, and has storage temperature compatibility from -40 to 58 degrees Fahrenheit, alongside a relative humidity range of 5 to 95%. With an approximate weight of 1.7 kilograms, it has a vibration rating of 10 to 2000 Hertz at 2 g and can withstand shock of 15 g for 11 milliseconds. The drive derates 3% per 1000 feet over 5000 feet and retains parameter data for 20 years. It is capable of handling 200% overload for 8 minutes and 600% for 20 seconds. Input rating sits at 100 to 240 Volts AC, with the AC input current being 5 Amps. Output power ranges are 0.9 to 1.8 kilowatts, depending on the voltage. Its power dissipation at full rated current is 48 Watts.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Kollmorgen

Product Name

DSM007P

Drive Type

Positioning Drive with Indexing Capabilities

Product Series

Micro-DSM

Approvals

CE, UL

Operating Temperature Range

32 to 131 degrees Fahrenheit

Storage Temperature Range

-40 to 58 degrees Fahrenheit

Relative Humidity Range

5 to 95%

Maximum Recommended Altitude

500 feet

Derating

3% per 1000 feet above 5000 feet

Vibration Rating

10-2000 Hertz at 2 g

Shock Rating

15 g for 11 milliseconds

Weight

1.7 kg

Signal Output Power

5 Volts DC

Ports

One RS-232 or 4-wire RS-485

Drive Address

Software Selected

Parameter Data Retention

20 years

Overload Support

200% for 8 minutes, 600% for 20 seconds

AC Input Rating

100 to 240 Volts AC

AC Input Current

5 Amps

Bus Voltage

141 to 339 Volts DC

Output Current Ratings

2.5 Amps (Continuous), 7.5 Amps (Peak)

Peak Power Output

0.9 kilowatts at 120 Volts AC, 1.8 kilowatts at 240 Volts AC

Continuous Power Output

0.3 kilowatts at 120 Volts AC, 0.6 kilowatts at 240 Volts AC

Power Dissipation at Maximum Current

48 Watts

Typical Power Dissipation

Half of Maximum Dissipation
