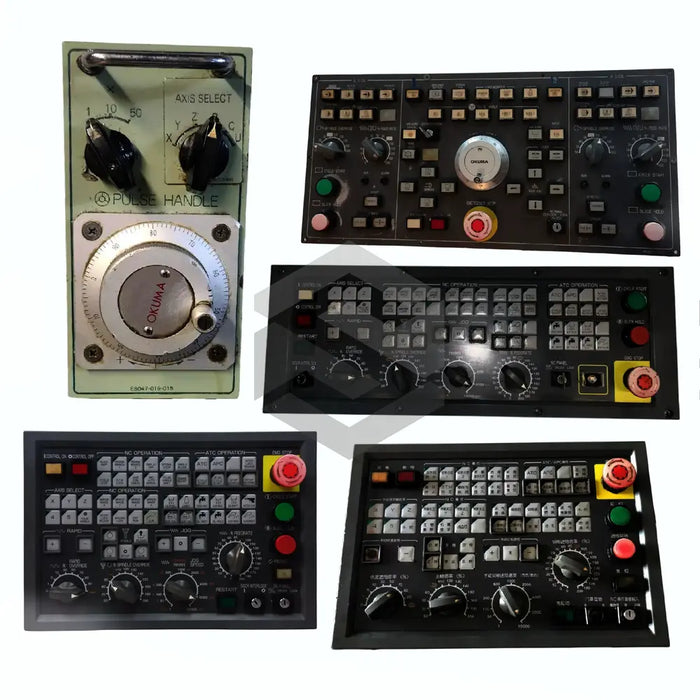

S image of E0105-566-055-3

E0105-566-055-3

by Okuma
$2,340.00 - $2,340.00
$2,340.00
$2,340.00 - $2,340.00
$2,340.00

In Stock, Ships 1 - 3 Days

The Okuma E0105-566-055-3 is a high-performance operator control panel in the E5 Operator Panels series designed for precise CNC machine interfacing. Manufactured by Okuma, this control unit supports the primary function of manual and automated machining operations with robust reliability. Featuring dual Feed Rate Override (0–200%) knobs and a Manual Pulse Generator (Pulse Handle (MPG)) for accurate axis movement, it offers exceptional control. The panel supports multi-axis operation on the X, Z axes and provides a Jog Increment Selector (×1, ×10, ×50, ×100) to fine-tune positioning.

Built for industrial automation, the E0105-566-055-3 communicates via EtherCAT to ensure seamless integration with modern CNC systems. Operating in both Manual and Automated control modes, it includes slide jog buttons for directional control and an Axis Selector switch for X and Z. The front panel incorporates essential functions such as Cycle Start, Emergency Stop, Control On/Off, Reset, and spindle control modes (CW/CCW/Stop) with spindle jog capability. The panel’s dimensions of 250 × 80 × 300 mm and integrated fan cooling maintain optimal thermal performance. Dry Run, Single Block, Optional Stop, and M-Code Hold modes enhance programming flexibility and safety.

On the rear, multiple DB connectors, ribbon cable ports, and a multi-pin power connector offer comprehensive connectivity. Powered by 230 V AC with a maximum current draw of 50 A, the unit delivers reliable operation under heavy industrial loads. Supported features include Coolant On/Off control, slide Hold functions, machine lock, door interlock, and IO panel lock for enhanced safety. The integrated cooling fan and sturdy construction ensure long-term durability and resistance to harsh factory environments. By combining advanced control features, superior connectivity, and robust construction, the E0105-566-055-3 panel delivers high efficiency, precision, and reliability for complex machining tasks

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Axes

X, Z

Communication Interface

EtherCAT

Control Modes

Manual, Automated

Coolant Control

On/Off

Cooling Method

Integrated fan

Dimensions (WxDxH)

250 × 80 × 300 mm

Dry Run Mode

Supported

Feed Rate Override

0%–200%

Jog Controls

Slide jog buttons

Jog Increments

×1, ×10, ×50, ×100

M-Code Hold

Supported

Machine Lock

Supported

Manual Pulse Generator (MPG)

Pulse handle

Maximum Current

50 A

Optional Stop

Supported

Power Supply

230 V AC

Single Block Operation

Supported

Spindle Control

CW/CCW/Stop; jog supported

Spindle Speed Override

0%–200%
