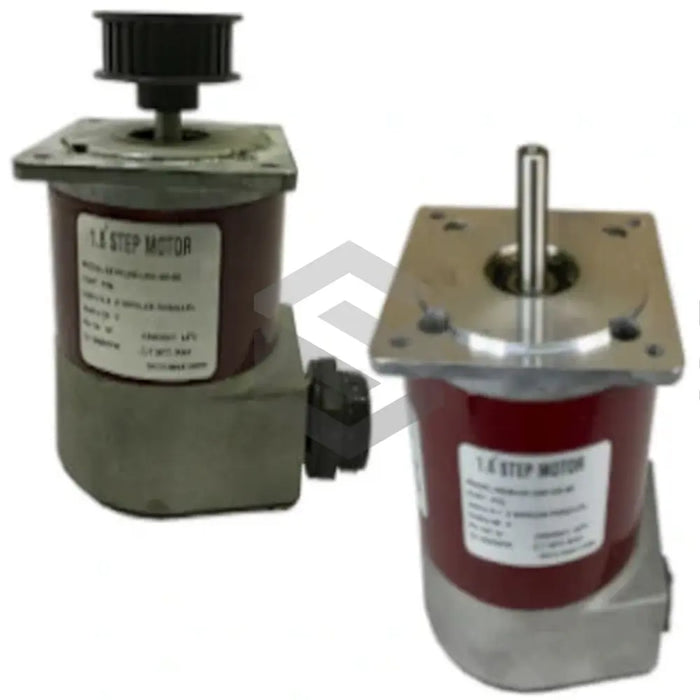

S image of E21NCLT-LDM-PH-00

E21NCLT-LDM-PH-00

by Kollmorgen
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message

The Kollmorgen E21NCLT-LDM-PH-00 from the E Hybrid Stepper Motors series is a high-precision hybrid stepper motor designed for industrial automation and motion control applications. With a holding torque of 239 oz-in (1.69 Nm) and a current per phase rating of 8.4 Amps for its parallel winding, this motor delivers accurate positioning and strong holding capabilities. Its primary function is to provide reliable, repeatable motion in demanding environments, supporting both standard and double shaft configurations.

Constructed as a splashproof unit with a removable insulating bushing, the E21NCLT-LDM-PH-00 ensures protection against dust and light moisture ingress. It offers versatile conduit connection options: Option L: 1/2 NPSC TAP or Option M: PG 13.5 TAP, simplifying electrical integration. The motor exhibits a typical phase resistance of 0.13 Ohms and a rotor inertia of 0.0083 oz-in-s2 (0.0586 x 10^-3 kg-m2), contributing to stable operation and low torque ripple. Additional features include support for MS Connector encoder options and availability of a heavy duty front bell for enhanced durability.

Weighing 3.2 lbs (1.45 kg) and available in a single stack length configuration, this motor is well suited for systems where compact size and low mass are critical. The standard round mounting configuration facilitates straightforward flange mounting and ensures secure attachment to mechanical assemblies. An available encoder connector and motor connector options improve system flexibility and minimize installation time. In industrial settings, the E21NCLT-LDM-PH-00’s robust construction and precise electrical characteristics lead to improved throughput, reduced maintenance, and enhanced lifecycle performance, making it an ideal choice for precision indexing, gantry positioning, and high-reliability automation tasks.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Conduit Connection

Option L: 1/2 NPSC TAP; Option M: PG 13.5 TAP

Construction Type

Splashproof with removable insulating bushing

Current Per Phase

8.4 Amps for parallel winding

Dimensions

L1 MAX: 6.73 [170.94 mm], L2: 5.61 [142.49 mm]

Encoder Connector

Provided as an option for mounting

Encoder Option

Supports MS Connector

Front Shaft Configurations

Standard and double shaft configurations

Heavy Duty Front Bell

Available for enhanced robust applications

Holding Torque

239 oz-in (1.69 Nm)

Motor Connector

Available with motor construction options

Mounting Configuration

Standard round mounting; not available on 3 stack motor

Phase Resistance

0.13 Ohms typical

Rotor Inertia

0.0083 oz-in-s2 (0.0586 x 10^-3 kg-m2)

Stack Length Options

1 Stack configuration

Weight

3.2 lbs (1.45 kg)
