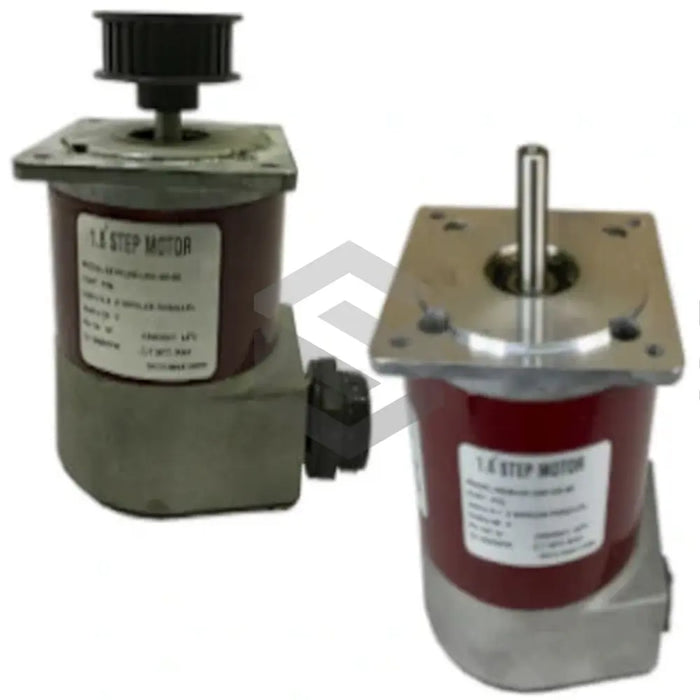

series image of E22NRFT-LNN-NS-00

E22NRFT-LNN-NS-00

by Kollmorgen
$990.00 - $990.00
$990.00
$990.00 - $990.00
$990.00
Available, Shipping Varies
The E22NRFT-LNN-NS-00, a high-performance hybrid step motor, is designed and manufactured by Pacific Scientific. Coming in a size of NEMA 23 with NEMA mounting, this motor is a perfect combination of power, efficiency, durability, and cost-effectiveness. It excels in heat dissipation and offers two rotor stacks with differing inertias – low and standard, which can be selected as per your acceleration needs. The motor weighs between 1.13kg and 2.5kg and has a rotor inertia ranging from 0.025 to 0.0036 kgm 2 X 10 -3. Its torque output and holding torque varies from 0.049 Nm to 7Nm and 1.39 Nm to 197Nm respectively. Moreover, it works at a rated current of 6.5A and exceeding this limit may lead to demagnetization, thereby impacting its performance. Its thermal resistance is 4.5°C/watt, the phase resistance is 0.21 Ω, and comes with a phase indication of 0.4 mH.
30 Day Warranty
Technical Specifications
  • Manufacturer: Pacific Scientific
  • Product Type: Hybrid Step Motor
  • Model: E22NRFT-LNN-NS-00
  • Size: NEMA 23
  • Mounting Type: NEMA Mounting
  • Rotor Type: Two rotor stacks with low and standard inertial rotors
  • Rotor Inertia: 0.025 to 0.0036 kgm 2 X 10 -3
  • Weight: 1.13kg to 2.5kg
  • Torque: 0.049 Nm to 7Nm
  • Holding Torque: 1.39 Nm to 197Nm
  • Rated Current: 6.5A
  • Thermal Resistance: 4.5°C/watt
  • Phase Resistance: 0.21 Ω
  • Phase Induction: 0.4 mH
