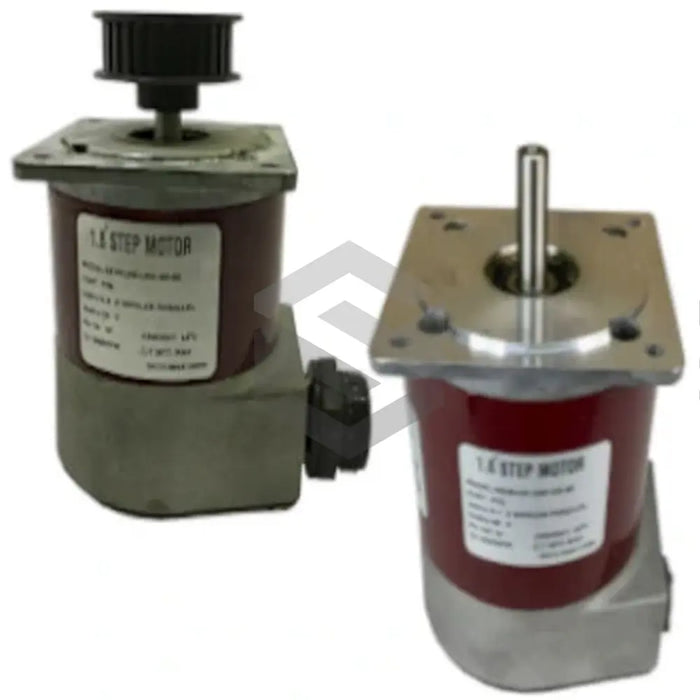

S image of E33NRHP-LNF-NS-00

E33NRHP-LNF-NS-00

by Kollmorgen
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message

The Kollmorgen E33NRHP-LNF-NS-00 hybrid stepper motor is a precision motion control solution in the E Hybrid Stepper Motors series. Built on a NEMA 34 motor frame, it delivers a robust radial load capacity of 85 lbf and an axial load capacity of 25 lbf, ensuring reliable operation under side and end forces. Rated for a maximum operating temperature of 130°C, this motor maintains stability in elevated-temperature industrial environments. Designed for high-performance applications, it provides accurate positioning and repeatability for automated machinery.

Incorporating a leadwire hookup connection method, the E33NRHP-LNF-NS-00 offers flexible wiring configurations suitable for bipolar series, parallel, or unipolar drive modes. The motor’s shaft, with a diameter of 0.5 inches (+/- 0.002) and a length of 0.750 inches, features a Woodruff key for secure coupling to machine components. Insulation resistance is rated at 100 MegOhm @ 500 VDC, supporting electrical integrity and long-term reliability. The mounting hole pattern of four equally spaced holes on a 3.875-inch bolt circle facilitates straightforward integration into existing systems, while the rear shaft configuration with a D-flat provides secure torque transmission.

Engineered for demanding industrial automation, this motor supports installation at altitudes above 1000 m sea level without performance degradation. The standard shaft depth of 0.50 inches simplifies coupling with standard accessories, and the overall weight of 6.8 kg contributes to a stable, low-inertia design for dynamic response. With a pulley-compatible shaft and high insulation resistance, the E33NRHP-LNF-NS-00 meets rigorous durability requirements. Its consistent performance and rugged construction make it ideal for packaging, robotics, and CNC applications, delivering efficiency, longevity, and precision in industrial operations.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Axial Load Capacity

25 lbf (111 N)

Connection Method

Leadwire hookup

Front Shaft Key Type

Woodruff Key

Installation

Above 1000 m sea level

Insulation Resistance

100 MegOhm @ 500 VDC

Max Operating Temperature

130°C (266°F)

Motor Frame

NEMA 34

Mounting Hole Pattern

4 equally spaced on 3.875-inch BC

Radial Load Capacity

85 lbf (378 N)

Rear Shaft Configuration

D-flat

Shaft Diameter

0.5 inches (+/- 0.002)

Shaft Length

0.750 inches

Standard Shaft Depth For Coupling

0.50 inches

Weight (approx.)

6.8 kg (15 lb.)
