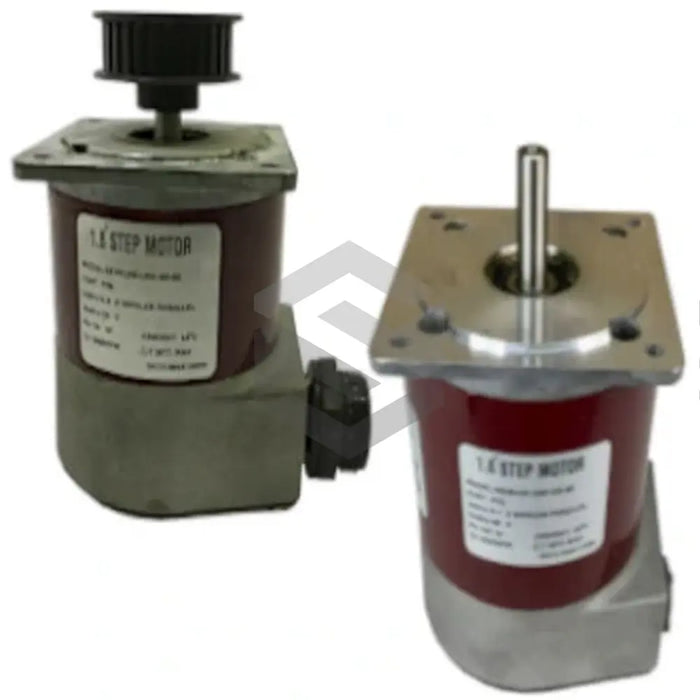

S image of E41HLET-LNK-NS-00

E41HLET-LNK-NS-00

by Kollmorgen
$1,643.13 - $1,643.13
$1,643.13
$1,643.13 - $1,643.13
$1,643.13

In Stock, Ships 1 - 3 Days

The E41HLET-LNK-NS-00 motor from Kollmorgen's E Hybrid Stepper Motors series features a 1.8° step angle and 12 Nm holding torque. It runs at 65 VDC to 1500 RPM under full-step control, offers 0.8 Nm detent torque and continuous duty cycle. With 1.2 ohm resistance and 3.5 mH inductance per phase, it reduces resonance and improves efficiency. It accepts 4000 ppr encoder upgrades and supports 200 N axial load.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Control Mode

Full-step operation

Detent Torque

0.8 Nm

Duty Cycle

Continuous operation

Encoder Options

Up to 4000 pulses per revolution

Holding Torque

12 Nm

Insulation Class

Class B

Maximum Axial Load

200 N

Motor Type

Bipolar Step Motor

Phase Inductance

3.5 mH

Phase Resistance

1.2 ohms

Rated Speed

1500 RPM

Rated Voltage

Approximately 65 VDC

Rotor Inertia

3.8 kg·cm²

Step Angle

1.8°

Temperature Range

-20 °C to +50 °C
