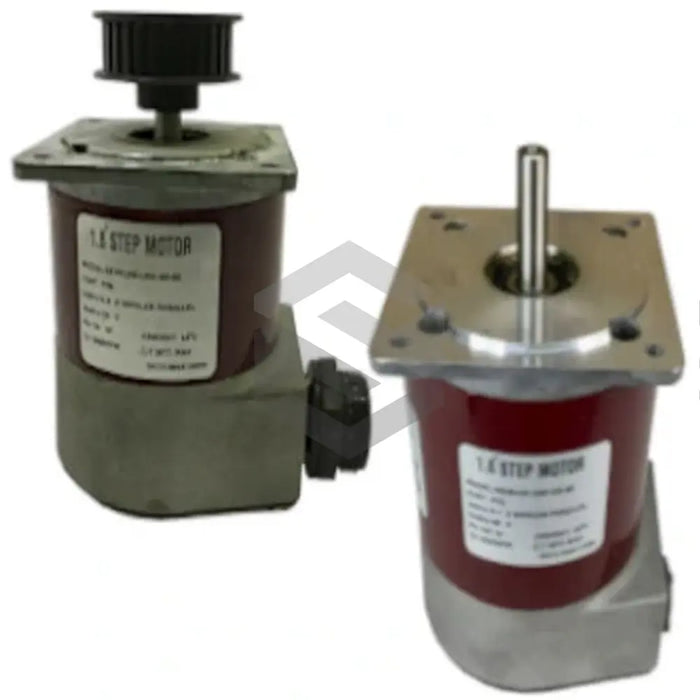

S image of E42HCHT-LNK-NS-00

E42HCHT-LNK-NS-00

by Kollmorgen
$2,540.23 - $2,794.25
$2,540.23
$2,540.23 - $2,794.25
$2,540.23
The E42HCHT-LNK-NS-00 stepper motor from Kollmorgen's E Hybrid Stepper Motors series features a NEMA 42 frame and a double-ended shaft with encoder. It delivers 2700 oz-in holding torque, supports 14.7 A per phase, has a radial force of 140 lbs, and axial force of 400 lbs. It offers a phase inductance of 10.6 mH, phase resistance of 0.47 Ω, and a 5 VDC encoder supply. Weighing 8.26 lbs, it also has rotor inertia of 18.2 oz-in-s².

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Axial Force

400 lbs (1780 N)

Encoder Output Format

Dual Channel Quadrature with Index

Frame Size

NEMA 42

Holding Torque

2700 oz-in (19.1 Nm)

Lines Per Revolution For Encoder

500 or 1000 LPR (depending on configuration)

Phase Inductance (series)

10.6 mH

Phase Resistance (series)

0.47 Ohms

Radial Force

140 lbs (623 N)

Rated Current Per Phase (parallel)

14.7 Amps

Rotor Inertia

18.2 oz-in-s2 (1.13 kg-m2 x 10^-3)

Shaft Configuration

Double ended with encoder

Stack Length

2 stacks

Supply Voltage For Encoder

5 VDC ±10%

Thermal Resistance

2.7 degrees Celsius/Watt

Weight

8.26 lbs (4.94 kg)
