E4809-770-065-A
by Okuma

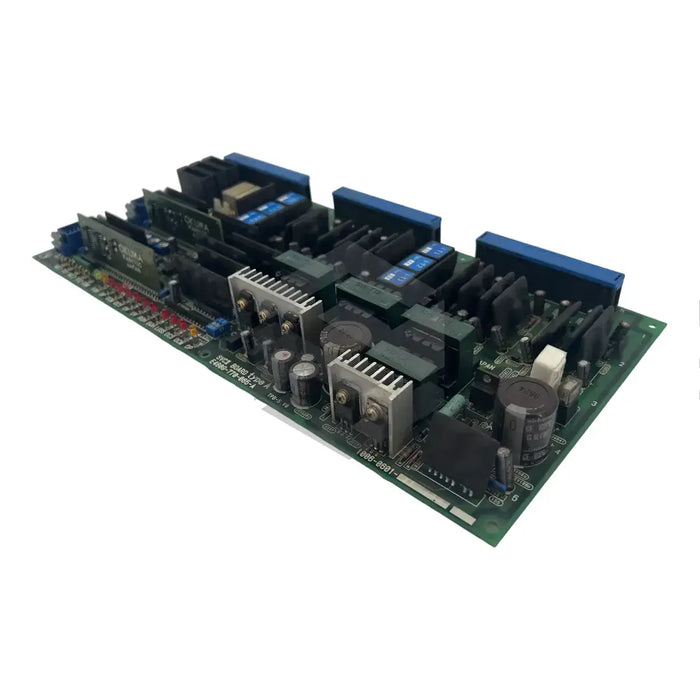

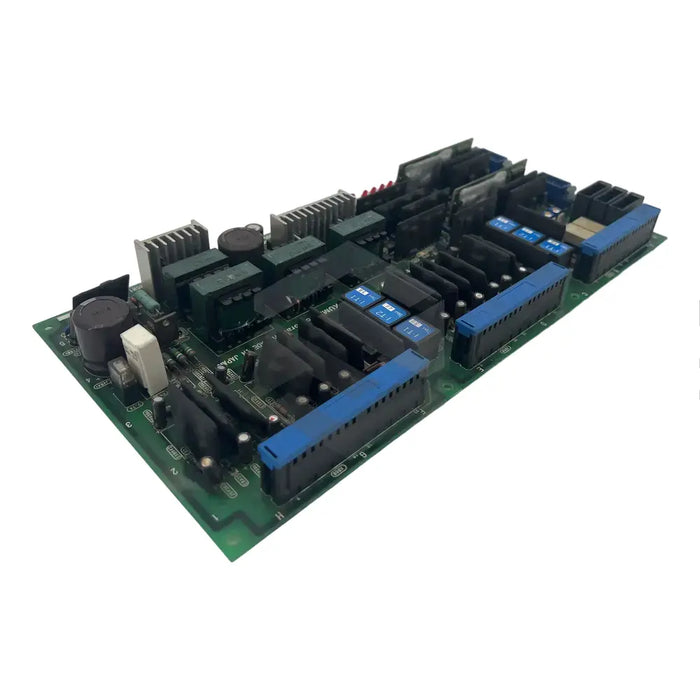

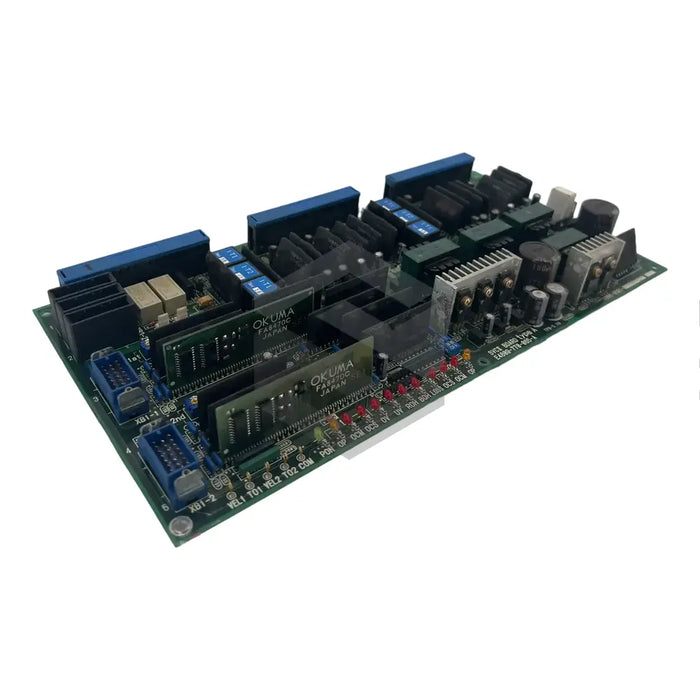

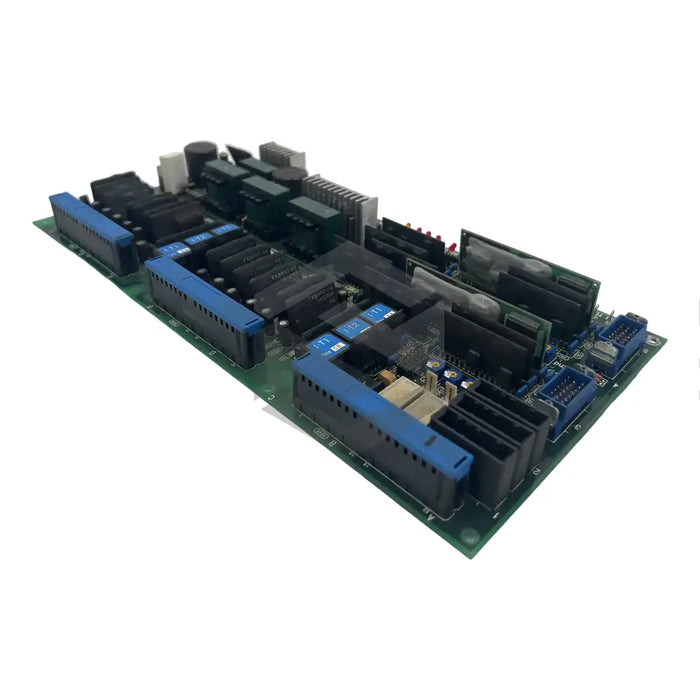

The Okuma E4809-770-065-A is a 3-axis command-type servo drive control board known for its efficient performance. It uses an embedded CPU to process motion commands from a host computer through a 2k bytes FIFO, also transferring the position and status back to the host-computer via the same route. Suitable for windows OS, it provides DOS and Windows NT driver with Window 95 compatibility. Key features include eight digital inputs, seven digital outputs, a 3-axis V-command servo board, 2500Vrms optical couple, and ability to detect hardware failure. It uses a software DDA to divide commands into equal delta commands for precise control and speed adaptability. The E4809-770-065-A offers three operating modes: open loop, simulation, and closed loop, each enabling efficient system development. The board also incorporates an array of functions such as pitch error compensation, hardware failure detection, and limit switch auto-protection.
