S image of E5402-183-009

E5402-183-009

by Okuma
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message

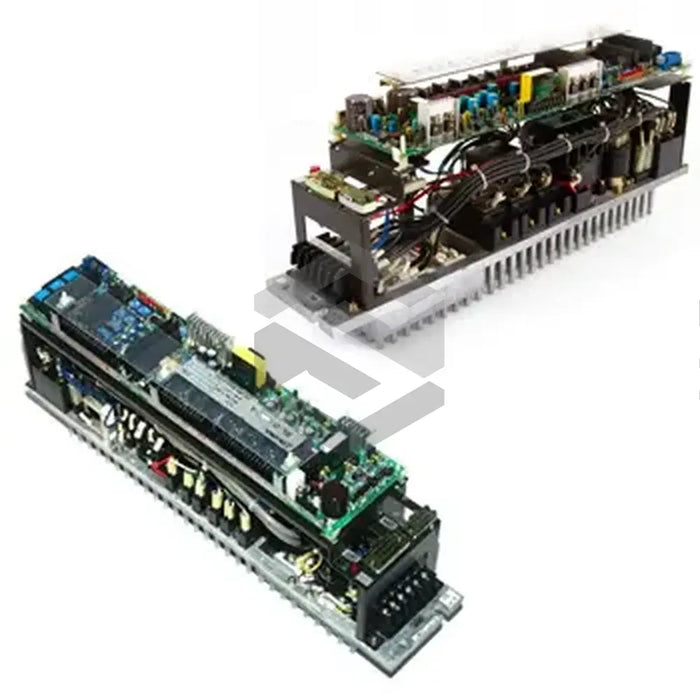

The E5402-183-009 servo drive by Okuma is part of the BL Servo Drives series. It runs on 3-phase 180-240 VAC main input at 50/60 Hz and a single-phase 85-125 VAC control circuit voltage, supporting 0.8-8.0 kW motor output power. It includes LED status indicators (PON, OP*, OCM*, PCS*, OV, UV) and provisions for an external resistor connection. It functions within 0 °C to 55 °C with up to 75% RH and withstands vibration resistance up to 0.5 G.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Capacity range

15–150 (model dependent)

Control circuit voltage

Single-phase 85–125 VAC

Current command input connector

MRP-20F01

Dimensional drawings

Refer to manual Section 5

Dynamic brake function

Built-in brake; supports external resistor

Frequency

50/60 Hz

Main input voltage

3-phase 180–240 VAC 50/60 Hz

Motor output power

0.8–8.0 kW

Operating humidity

75% RH (95% short periods)

Operating temperature

0°C to 55°C

Processor board

SVP II‑D

Status indicators

LEDs: PON, OP*, OCM*, PCS*, OV, UV

Storage temperature

–20°C to 60°C

Thermal brake signal connector

Dynamic series 178288-5

Vibration resistance

Max 0.5 G

Wiring requirements

AC1/AC2 wire ≥0.5 mm²; terminal M4
