E5409-770-002-1
by Okuma

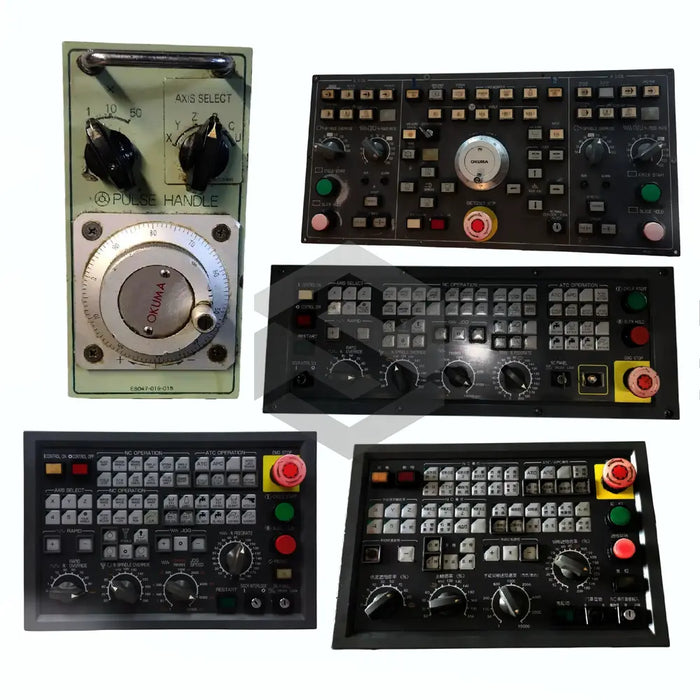

The Okuma E5409-770-002-1 operator panel is part of the E5 Operator Panels series from Okuma. Designed for seamless integration with Okuma OSP5000 machines, it features robust Construction using industrial-grade materials and provides precise command entry via Input method buttons and key switches. This front-mounted control unit serves as a primary interface for spindle control, enabling operators to start, stop and adjust spindle operations directly from the machine’s control surface.
Incorporating a clear Display with graphical and digital spindle status readout, the E5409-770-002-1 delivers real-time feedback on spindle speed and operational state. Its Electrical interface to spindle drive electronics ensures accurate signal transmission for responsive control. The panel is engineered for a Mounting orientation of front panel mount, optimizing installation in enclosed operator stations. Additionally, compatibility with Okuma digital control systems allows seamless communication with OSP5000 controls, maintaining synchronization between the operator panel and machine tool functions.
Built to withstand demanding shop floor environments, this operator panel meets stringent Environmental rating requirements suitable for industrial operating environments. Its durable construction minimizes wear under continuous use, while its compatibility with Okuma digital controls enhances system reliability. By consolidating essential spindle commands into a single compact unit, the E5409-770-002-1 improves operator efficiency, reduces setup times, and enhances safety through intuitive controls—making it an ideal solution for modern automated manufacturing applications.
