EB-106-B-91-B3-006

Original price $3,892.50 - Original price $3,892.50
Original price
$3,892.50
$3,892.50 - $3,892.50
Current price $3,892.50
Available, Shipping Varies

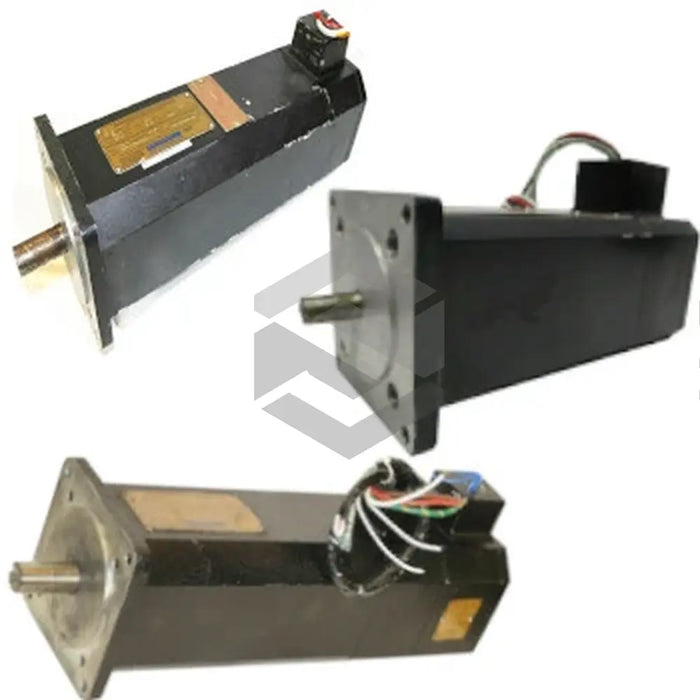

The EB-106-B-91-B3-006 is a high-efficiency brushless motor, designed and manufactured by Kollmorgen. It excels in servomotor applications, providing a reliable, cost-effective solution that operates with high torque at low speeds. The motor features a self-lubricating system and reduced gearhead bearing and motor load, coupled with the added perk of being sold as a complete solution - eliminating the need for additional gearhead purchases. With a frame size of ten and a six stack length, this motor achieves a maximum speed of 7500 rpm thanks to its 1.2 horsepower and peak torque of 4.68lb-ft. Furthermore, it is safety-approved for environments involving hazardous and explosive materials. Its compact design, offering a high torque to volume ratio and integrated thermostat with Class H insulation, ensures that it performs even under high-temperature conditions.
30 Day Warranty
Technical Specifications
  • Manufacturer: Kollmorgen
  • Product: EB-106-B-91-B3-006 brushless motor
  • Application: Servomotor
  • Features: Self-lubricating system, reduced gearhead bearing and motor load, precise positioning, low backlash, high reliability and bandwidth
  • Frame size: 10
  • Stack length: 6
  • Winding type: B winding
  • Additional Features: 24 VDC fail-safe brake
  • Horsepower: 1.2HP
  • Maximum speed: 7500 rpm
  • Peak Torque: 4.68lb-ft
  • Weight: 8.5lb
  • Poles: 4
  • Peak line current: 18.0Amps RMS
  • UL Listing: Class I, Division 1, and Group C and D
  • Design: Compact, high torque to volume ratio
  • Additional Elements: Integrated thermostat, Class H insulation
