EB-204-A-11

Original price $1,575.00 - Original price $1,575.00
Original price
$1,575.00
$1,575.00 - $1,575.00
Current price $1,575.00
Available, Shipping Varies

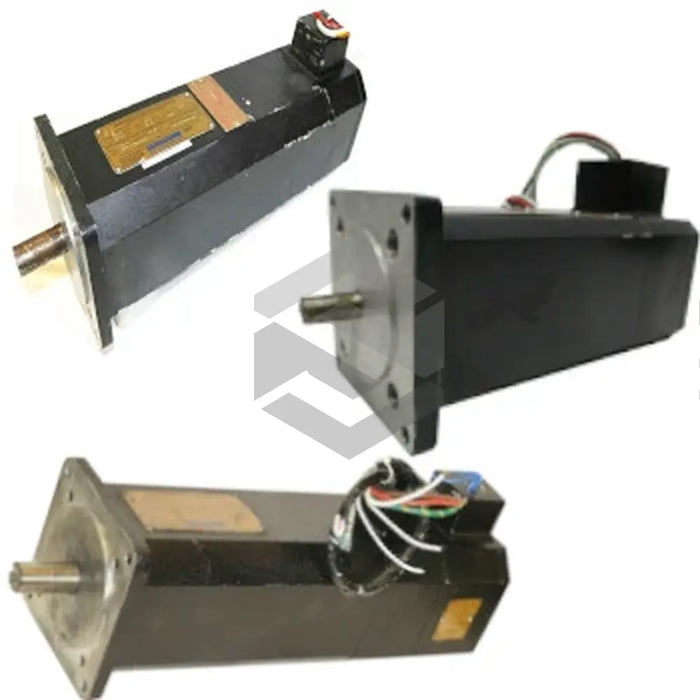

The EB-204-A-11 is a brushless motor crafted by globally acclaimed motion product maker, Kollmorgen. As part of the distinguished GOLDLINE series, it's a premium solution for servomotor applications. The EB-204-A-11 motor offers high torque density and power due to its permanent magnet design and low inertia desire. Ideal for high response or point-to-point move applications, it hits the industry’s zenith in peak speed and torque when coupled with the SERVOSTAR digital amplifier. Safety is not a compromise; the motor is UL recognized, geared for hazardous environments, and designed to withstand an internal explosion without rupture or enabling ignition to reach outer segments of the frame. Core features include high torque-to-volume ratio, a maximum speed of up to 7500rpm, and in-built thermostat for thermal loss prevention. It also offers rugged resolver feedback, a NEMA mounting option, and Class H insulation. Critical parameters consist of a horsepower of 1.1HP, a peak torque of 10.1N-m, and an RMS peak line current of 8.7Amps.
30 Day Warranty
Technical Specifications
  • Manufacturer: Kollmorgen
  • Product Model: EB-204-A-11
  • Series: GOLDLINE
  • Product Category: Brushless Motor
  • Magnetic Design: Permanent Magnets
  • Usage: Servomotor Applications
  • Certification: UL Recognized
  • Safety Feature: Withstands Internal Explosion
  • Maximum Speed: 7500rpm
  • Thermal Protection: Built-in Thermostat
  • Feedback System: Rugged Resolver Feedback
  • Mounting Option: NEMA
  • Insulation Class: Class H
  • Horsepower: 1.1HP
  • Peak Torque: 10.1N-m
  • Peak Line Current: 8.7Amps RMS
