EB-206-B-91-B3-001

Original price $6,400.00 - Original price $6,400.00
Original price
$6,400.00
$6,400.00 - $6,400.00
Current price $6,400.00
In Stock, Ships 3 - 5 Days
Request a quote

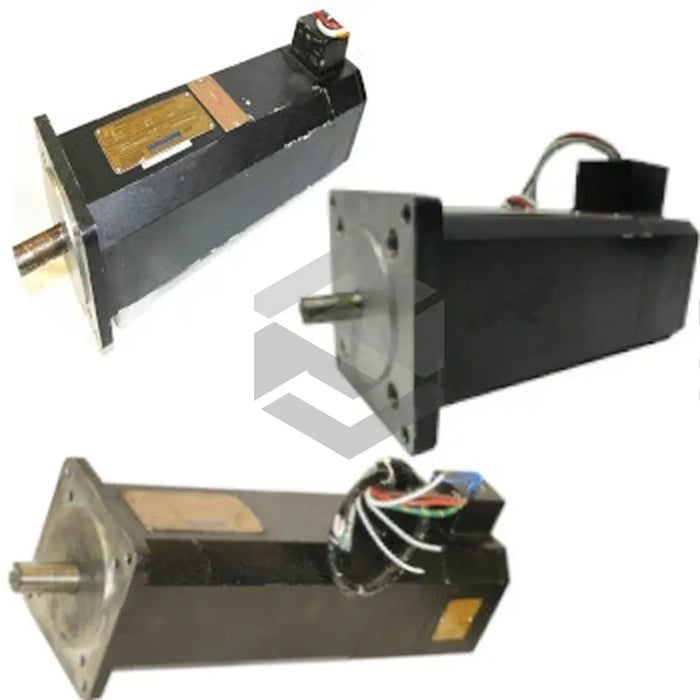

The EB-206-B-91-B3001, a key product from Kollmorgen’s Gold-line series, is an explosion-proof servo motor designed for use in highly combustible environments. Built to withstand internal fire explosions, this servo motor is part of Kollmorgen's EB series, renowned for their brushless, maintenance-free motors that are UL listed for hazardous operations. The EB-206-B-91-B3001's distinct features include a 6-stack frame size, a winding standard type represented by 'B', a factory-customised connection, a standard metric mounting, and a 24-volt DC power fail-safe brake. Moreover, this servo motor has an additional custom and factory-assigned element. The EB-206-B-91-B3001 touts a rated power of 2.5 HP, achieving maximum speeds up to 2800 rpm, with windings capable of handling a continuous current of 5.8 ampere RMS, and a peak capacity for momentary currents up to 19.5 amperes RMS.
30 Day Warranty
Technical Specifications
  • Manufacturer: Kollmorgen
  • Product Type: Servo Motor
  • Series: Gold-line
  • Model: EB-206-B-91-B3-001
  • Design Features: Explosion Proof, Brushless, Maintenance Free
  • UL Listed: Yes
  • Frame Size: 20
  • Motor Length: 6 Stack
  • Winding Standard: B Type
  • Connection Type: Factory Customized
  • Mounting Option: Standard Metric
  • Additional Features: 24 Volts DC Power Fail-Safe Brakes
  • Custom Elements: Yes
  • Rated Power: 2.5 HP
  • Maximum Speed: 2800 rpm
  • Continuous Current: 5.8 Ampere RMS
  • Peak Current: 19.5 Ampere RMS
