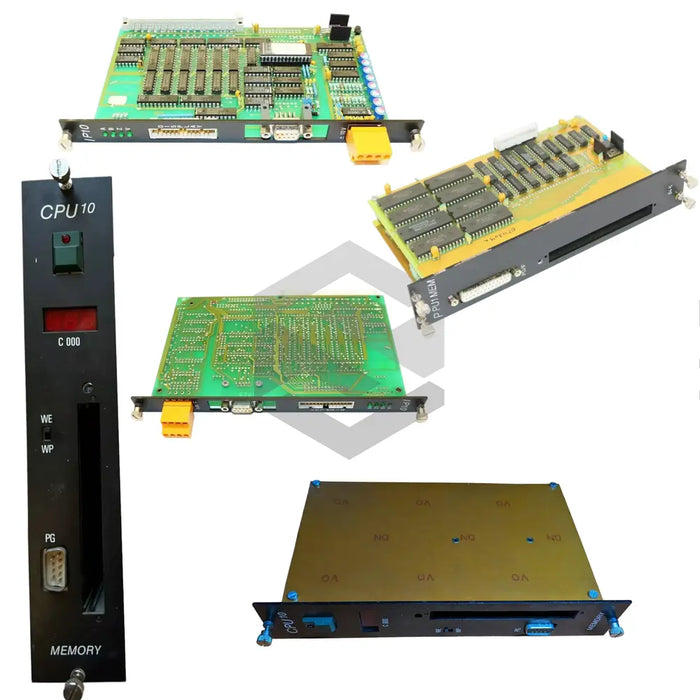

S image of ECPA81-21

ECPA81-21

by B & R Automation
$1,344.75 - $1,747.30
$1,344.75
$1,344.75 - $1,747.30
$1,344.75

In Stock, Ships 1 - 3 Days

The ECPA81-21 from B & R Automation features 8 outputs and an output signal range of 0 to 20 mA. Part of the ECP Multi Control Modules, it offers a precision offset at 20 °C of ~0.1%/~0.2% and resolution of 11 Bit or 12 Bit. It supports a maximum load per channel of ~20 mA and consumes 0.5 W at +8 V.

It provides a total channel load sum of -80 mA to +160 mA, has no galvanic isolation and a gain drift of ~0.12%/°C. The offset drift from 0 to 60 °C is ~0.05%/~0.08%. The module can handle a load capacity up to 560 Ω.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Gain Drift

~0.12 % / degrees C / ~0.04 % / degrees C

Gain Error At 20 degrees c

~0.2 % / Load 50 degrees C": ~0.5 % / Load 500 degrees C": ~3.5 %

Galvanic Isolation

NO

Linearity

0.2 %

Load Max

560 degrees C"

Max Load Per Channel

~20 mA

Max Load Sum Of All Channels

-80 mA / +160 mA

Number Of Outputs

8

Offset Drift (0 To 60 degrees c)

~0.05 % / ~0.08 %

Output Signal

0 to 20 mA

Power Consumption At -30 V

3.0 W

Power Consumption At +15 V

1.7 W

Power Consumption At +8 V

0.5 W

Precision Offset At 20 degrees c

~0.1 % / ~0.2 %

Resolution

11 Bit or 12 Bit
